REXROTH OIL CONTROL閥VU-N-38系列技術參數
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage | 5 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 78 - 85 Nm (56 - 63 ft-lbs) |
Weight | 0.1 kg (0.22 lbs) |
Special cavity | 690 (see data sheet 18325-75) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit | Code: RG0690010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 20/18/15 |
Installation position | No restrictions |

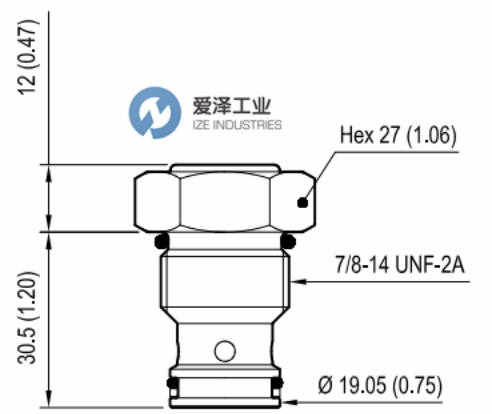

REXROTH OIL CONTROL閥VU-N-38系列技術尺寸

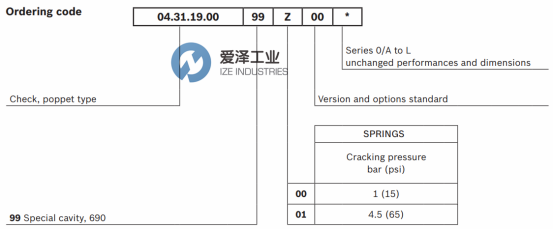

REXROTH OIL CONTROL閥VU-N-38系列 選型
REXROTH OIL CONTROL閥VU-N-38系列其他常用型號：
REXROTH OIL CONTROL 043119009900000 R930000456
REXROTH OIL CONTROL 043119009901000 R930000457
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥043119009901000 R930000457的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥043119009901000 R930000457技術數據
