REXROTH OIL CONTROL閥VSBN-10A系列技術參數
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 350 bar (5000 psi) |
Max. flow | 50 l/min (13 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-2N |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit | Code: RG10A2010530100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 20/18/15 |
Installation position | No restrictions |

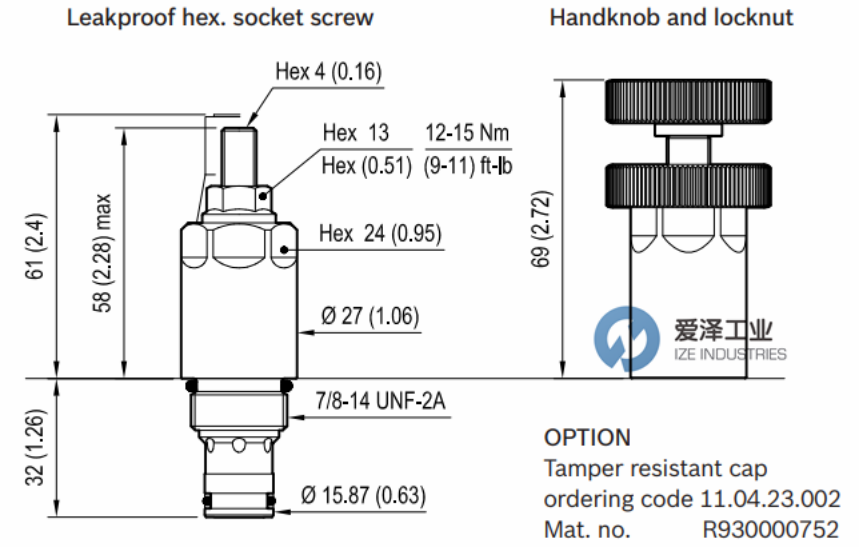

REXROTH OIL CONTROL閥VSBN-10A系列尺寸圖

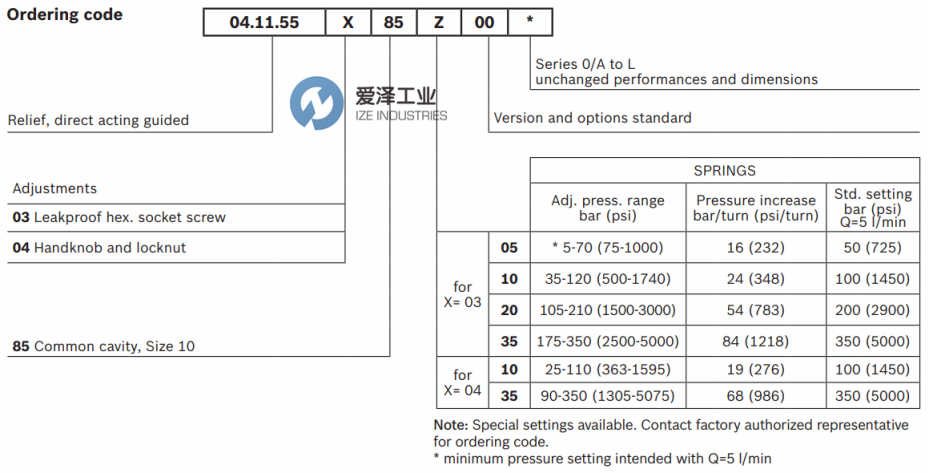

REXROTH OIL CONTROL閥VSBN-10A系列選型
REXROTH OIL CONTROL閥VSBN-10A系列其他常用型號：
REXROTH OIL CONTROL 041155038505000 R901191831
REXROTH OIL CONTROL 041155038510000 R901113609
REXROTH OIL CONTROL 041155038520000 R901113610
REXROTH OIL CONTROL 041155038535000 R901115702
REXROTH OIL CONTROL 041155048510000 R930058261
REXROTH OIL CONTROL 041155048535000 R930058262
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥041155038510000 R901113609的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

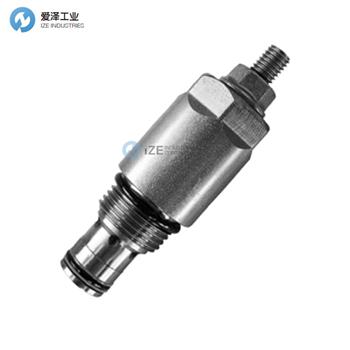

REXROTH OIL CONTROL閥041155038510000 R901113609規格描述
