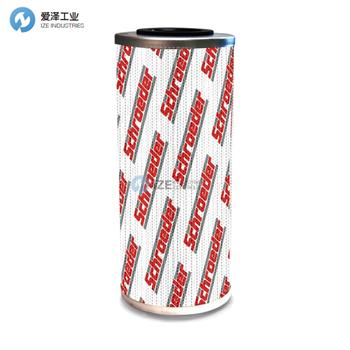

SCHROEDER濾芯KZ5技術參數
Specifications | |
Short Description | KZ5 |
Type | Hydraulic and Lube Filters |
Style | Elements |
Series | K |
Media Type | Excellement? Z-Media? (Synthetic) |
Nominal Filter Rating | 5 μm |
Connection Type | Seal |
Seal Material | Buna |
Beta Ratio | 1000 |
Efficiency | 0.999 |
Filter Rating - Beta Ratio | 6.3 |
Operating Pressure [Max] | 10.3 bar / 150 psi |
Operating Temperature [Min] | -29 oC / -20 oF |
Operating Temperature [Max] | 107 oC / 225 oF |
Weight | 0.82 kg / 1.80 lb |
Use With | Schroeder Filter Housing |
Designation | Single Length |
Quality Protection | None |
Dimensions | |
Outer Diameter | 3.9 in / 99 mm |
Inner Diameter | 1.6 in / 41 mm |
Height | 9.1 in / 231 mm |
Application | |
Application | HYDRAULIC AND LUBE |
SCHROEDER濾芯K系列其他常用型號：
SCHROEDER K10
SCHROEDER K10C
SCHROEDER K10H
SCHROEDER K10V
SCHROEDER K25
SCHROEDER KZ5
SCHROEDER K25C
SCHROEDER K25H
SCHROEDER K25V
SCHROEDER K3
SCHROEDER NEW + ORIGINAL+ ONE YEAR WARRANTY
