WHITTET-HIGGINS鎖緊墊圈CNF14-14產品參數
Identification | CNF14-14 |
Thread | .875-14 |
Outside Dia (inches) | 1.625 |
Face Dia (inches) | 1.188 |
Width (inches) | 0.500 |
Axial Load (lbs) | 10400 |
Lockscrew | 1/4-28 |

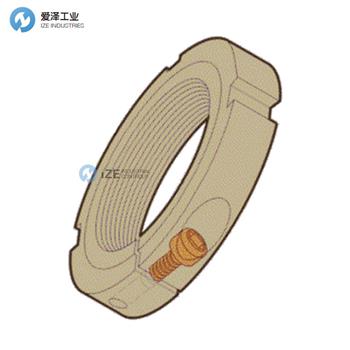

WHITTET-HIGGINS鎖緊墊圈CNF系列產品介紹
This series of CLAMP NUTS has the threads specified as FINE under the Unified system. These CLAMP NUTS better serve where a closer ratio is desired between the static strength of the shaft or spindle and the thread, where length of thread engagement is limited, where a smaller lead angle is desired, or where a thinner tubular wall for the external threaded member is desired. The external FINE threads have greater tensile stress area than comparable sizes with COARSE threads (about 10 percent stronger due to this greater cross section area). Thus FINE threads become very beneficial when resistance to stripping of threads equals or exceeds the tensile load carrying capacity of the externally threaded member. Lastly they can be more precisely adjusted because of their smaller helix angle.
This model is made of aluminum (usually 2024) bright finished and blackened alloy steel socket thread cap screw.
該系列卡箍螺母在統一制度下有規定為FINE的螺紋。這些夾緊螺母更適用于軸或心軸與螺紋的靜態強度之間需要更接近的比率、螺紋嚙合長度有限的地方、需要較小導程角的地方，或者用于外螺紋的管壁較薄的地方會員是需要的。外細螺紋比具有粗螺紋的可比尺寸具有更大的拉伸應力面積（由于橫截面積更大，強度約強 10%）。因此，當螺紋剝離阻力等于或超過外螺紋構件的拉伸承載能力時，細螺紋變得非常有益。最后，由于螺旋角較小，因此可以更精確地調整它們。
該型號由鋁（通常為 2024）制成，經過光亮處理和發黑處理的合金鋼內六角螺釘。

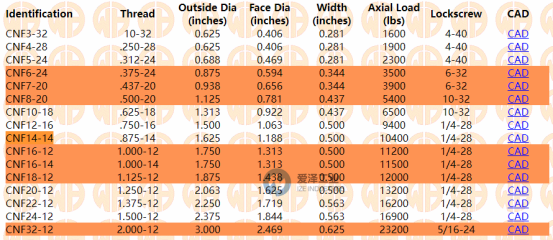

WHITTET-HIGGINS鎖緊墊圈CNF系列其他型號：
WHITTET-HIGGINS CNF3-32
WHITTET-HIGGINS CNF4-28
WHITTET-HIGGINS CNF5-24
WHITTET-HIGGINS CNF6-24
WHITTET-HIGGINS CNF7-20
WHITTET-HIGGINS CNF8-20
WHITTET-HIGGINS CNF10-18
WHITTET-HIGGINS CNF12-16
WHITTET-HIGGINS CNF14-14
WHITTET-HIGGINS CNF16-12
WHITTET-HIGGINS CNF16-14
WHITTET-HIGGINS CNF18-12
WHITTET-HIGGINS CNF20-12
WHITTET-HIGGINS CNF22-12
WHITTET-HIGGINS CNF24-12
WHITTET-HIGGINS CNF32-12
WHITTET-HIGGINS Whittet-Higgins NEW + ORIGINAL+ ONE YEAR WARRANTY
