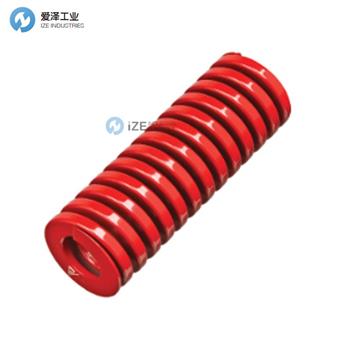

ASRAYMOND彈簧305-520-D技術規格
 | |
Die Spring Type | ISO-D-305 |
Hole Fit, min (H) (in) | 0.984 |
Rod Fit, max (R) (in) | 0.492 |
Free Length (L) (in) | 5 |
Solid Height, Approx (in) | 3.228 |
Spring Rate (lb/in) | 360.88 |
Load Length For Optimum Life, (L1) (in) | 4 |
Deflection For Optimum Life (D1) (in) | 1 |
Load at L1 (lb) | 360.88 |
Load Length For Long Life (L2) (in) | 3.75 |
Deflection For Long Life (D2) (in) | 1.25 |
Load at L2 (lb) | 451.1 |
Load Length For Max Operating Deflection (L3) (in) | 3.5 |
Maximum Operating Deflection (D3) (in) | 1.5 |
Load at L3 (lb) | 541.3 |
Shipping Weight (lb) | 0.942 |
Shipping Height (in) | 0.984 |
Shipping Length (in) | 5 |
ASRAYMOND彈簧其他常用型號：
ASRAYMOND 305-504-D
ASRAYMOND 305-505-D
ASRAYMOND 305-506-D
ASRAYMOND 305-507-D
ASRAYMOND 305-508-D
ASRAYMOND 305-510-D
ASRAYMOND 305-512-D
ASRAYMOND 305-514-D
ASRAYMOND 305-516-D
ASRAYMOND 305-518-D
ASRAYMOND 305-520-D
ASRAYMOND 305-522-D
ASRAYMOND 305-524-D
ASRAYMOND 305-528-D
ASRAYMOND 305-532-D
ASRAYMOND 305-548-D
ASRAYMOND SPRINGS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASRAYMOND彈簧305-520-D的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ASRAYMOND products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
