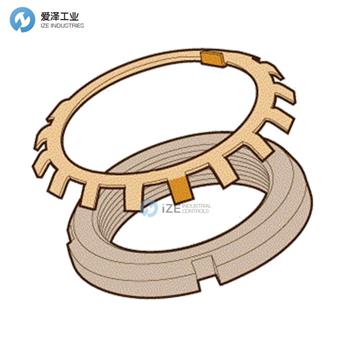

WHITTET-HIGGINS鎖緊墊圈BHI-07產品參數
Identification | BHI-07 |
Thread | 1.500-16 |
Outside Dia (inches) | 2.250 |
Face Dia (inches) | 1.938 |
Width (inches) | 0.563 |
Axial Load (lbs) | 21000 |
WHITTET-HIGGINS鎖緊墊圈BHI-07產品介紹
This series of BEARHUG locknuts brings together the prevailing torque principle, especially its ability to dampen shock and vibration, the all inch design retaining nut of the NI series especially with the National Fine Thread Series with 16 threads per inch, and the precision of the WHITTET-HIGGINS BEARHUG products. It is ideal for applications where the assembly will perform in difficult conditions such as mining and construction equipment.
This series provides four larger sizes not provided in the NI series.
The runout of the bearing face to the pitch diameter of the threads has a one revolution total indicator reading of no greater than .001 inches for all sizes. The surface level of the bearing face is within 40 microinches.
該系列 BEARHUG 鎖緊螺母結合了流行的扭矩原理，尤其是其減震和減震能力，NI 系列的全英制設計鎖緊螺母，尤其是每英寸 16 個螺紋的 National Fine Thread 系列，以及 WHITTET 的精度 -HIGGINS BEARHUG 產品。 它非常適合在采礦和建筑設備等惡劣條件下進行組裝的應用。
該系列提供了 NI 系列未提供的四種較大尺寸。
對于所有尺寸，軸承面相對于螺紋中徑的跳動具有不大于 0.001 英寸的一圈總指示器讀數。 軸承面的表面高度在 40 微英寸以內。
