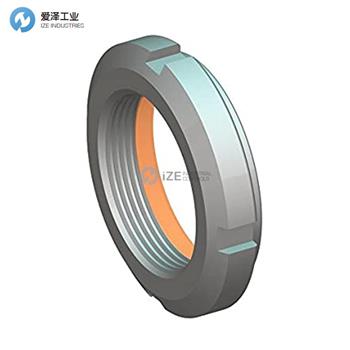

WHITTET-HIGGINS防松螺母BH-06產品參數
Specification | |
Thread | 1.173-18 |
Outside Dia (inches) | 1.750 |
Face Dia(inches) | 1.500 |
Width (inches) | 0.469 |
Axial Load(lbs) | 13500 |
WHITTET-HIGGINS防松螺母BH系列產品介紹
這一系列的BEARHUG鎖緊螺母，帶有尼龍環，是精密自鎖螺母的中流砥柱。它的設計與N和a鎖緊螺母的軸尺寸相同，但具有自鎖和超精密的附加特性，其中它已成為精密軸承和動力傳動總成的最重要部件。
這些螺母的支承面相對于螺紋中徑的跳動，一圈總指示器讀數不大于0.0004英寸（對于尺寸00到04），對于尺寸05到20，.0006英寸對于尺寸21到40.0008英寸。
閥座表面在40微英寸范圍內。
This series of BEARHUG Locknuts, with a nylon collar, is the mainstay of the precision self-locking nuts. It is designed for the same shaft dimensions as are the N and AN locknuts, but with the added features of self-locking and super precision wherein it has become a most important component for precision bearing and power transmission assemblies.
The runout of the bearing face of these nuts to the pitch diameter of their threads have a one revolution total indicator reading no greater than: .0004 inches for sizes 00 through 04, .0006 inches for sizes 05 through 20, .0008 inches for sizes 21 through 40.
Seating surface is within 40 micro-inches.
WHITTET-HIGGINS防松螺母BH系列其他型號：
WHITTET-HIGGINS BH-00
WHITTET-HIGGINS BH-01
WHITTET-HIGGINS BH-02
WHITTET-HIGGINS BH-03
WHITTET-HIGGINS BH-04
WHITTET-HIGGINS BH-05
WHITTET-HIGGINS BH-06
WHITTET-HIGGINS BH-065
WHITTET-HIGGINS BH-07
WHITTET-HIGGINS BH-08
WHITTET-HIGGINS BH-09
WHITTET-HIGGINS BH-10
