REXROTH公差環AN100X25 R081010003規格
Product attributes | |
Nominal size | 100 x 25 |
Transferable torque | 1300 |
Permissible radial load | 43000 |
Size d [mm] | 100 |
Productgroup ID | 16 |
Material footnote | Up to 200°C continuous operation, brief peaks up to 250°C |
Transferable torque footnote 1 | Observe the general technical notes and information. |
Transferable torque footnote 2 | In case of free installation with 20% reduction, see section “Calculations” for the guideline values |
Permissible radial load footnote 2 | Considerably smaller values are permitted for pulsating and alternating loads. Please consult us. |
Weight [kg] | 0.0381 |
REXROTH公差環AN系列產品介紹
PRODUCT DESCRIPTION

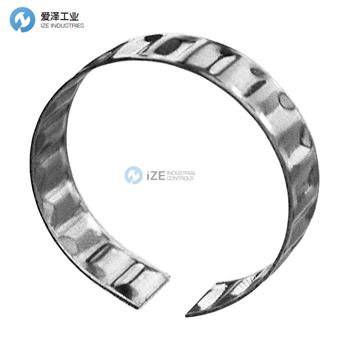

Tolerance ring
Type AN: The circumferential flat edges are located on the outer diameter of the tolerance ring. For use with a standard nominal shaft.
Tolerance ring diameter (d) = 100
Tolerance ring width (b) = 25
Carbon steel
Quick, economic installation
Compensates the differences in thermal expansion between machine elements made of different materials
Eliminates the need for keyways or other positive-locking connections
Connecting parts have a simple design
High temperature stability
Special sizes available on request
Extremely low-cost machine element
Resistant to various types of chemical stress
Fixed and secure connection of machine parts
Large tolerance zone with connecting parts
Connecting parts have a simple design
Quick, economic installation
Compensates the differences in thermal expansion between machine elements made of different materials
Eliminates the need for keyways or other positive-locking connections
High temperature stability
產品描述
公差環
AN 型：圓周平面邊緣位于公差環的外徑上。 與標準標稱軸一起使用。
公差環直徑 (d) = 100
公差環寬度 (b) = 25
碳素鋼
快速、經濟的安裝
補償由不同材料制成的機器元件之間的熱膨脹差異
無需鍵槽或其他正向鎖定連接
連接件設計簡單
高溫穩定性
可根據要求提供特殊尺寸
極低成本的機械元件
耐各種類型的化學應力
機器部件的固定和安全連接
帶連接件的大公差帶
連接件設計簡單
快速、經濟的安裝
補償由不同材料制成的機器元件之間的熱膨脹差異
無需鍵槽或其他正向鎖定連接
高溫穩定性
REXROTH公差環AN系列其他常見型號：
REXROTH AN100X25 R081010003
REXROTH AN120X19 R081012001
