KEMPPI便攜式焊機MINARC EVO 150產品參數
Technical specifications | ||
Connection voltage | 1 ~ 50/60 Hz | 230 V ± 15 % |
Rated power at max. current | 35 % ED MMA | 140 A/4.5 kVA |
35 % ED TIG | 150 A/3.2 kVA | |
Supply current | 35 % ED I1max | 19.7 A |
100 % ED I1ef | 12.9 A | |
Connection cable | H07RN-F | 3G1.5 (1.5 mm2, 3 m) |
Fuse | type C | 16A: 140A ED 35% 10A: 140A ED 28% |
Output (40 °C) MMA | 35 % ED | 140 A/25.6 V |
100 % ED | 100 A/24.0 V | |
Welding range | MMA | 10 A/15 V – 140 A/37 V |
TIG | 10 A/1 V – 150 A/36 V | |
No-load voltage; peak | 90 V (VRD 30 V) | |
Idle power | 17 W | |
Voltage steps | stepless | |
Power factor at 100 % ED | 0.99 | |
Efficiency at 100 % ED | MMA | 82 % |
Stick electrodes | ? | 1.5 – 3.25 mm, and some 4 mm |
External dimensions LxWxH | Height with handle | 361x139x267 mm |
Weight | without connection cable | 5.4 kg |
With connection cable | 5.85 kg | |
Temperature class | B (130° C) | |
EMC class | A | |
Degree of protection | IP23S | |
Operating temperature range | 20...+40° C | |
Storage temperature range | -40...+60° C | |
Standards IEC 60974-1 IEC 60974-10 IEC 61000-3-12 | ||
KEMPPI便攜式焊機MINARC EVO 150產品介紹
出色的焊接性能并不夸張。Minarc Evo 150的每個元件都旨在滿足移動中專業焊工的需求。在尺寸，重量和焊接質量方面，沒有平等的。
非常適合現場使用，即使使用超長電源線，您也可以使用主電源或發電機電源的Minarc Evo 150。Minarc Evo易于攜帶，因此您可以在一次旅行中隨身攜帶所需的一切。
大電壓儲備和自動電弧力控制可在所有焊接位置和各種電極類型中提供出色的電弧穩定性，確保每次都能獲得高質量的焊接結果。
大而清晰的儀表顯示使得精確的電流設置簡單易行，精確的升降TIG點火確保了高質量的直流TIG焊接。連接Minarc Evo的遠程控制選項，您可以在焊接過程中調整焊接參數，以實現最大的便利性和熔池控制。
優勢：
優質焊接性能
適用于所有電極類型
PFC技術可實現最高能效
設計用于長電纜
高電流輸出和占空比
輕巧便攜
精確提升TIG技術
主電網或發電機使用
可選的遙控器
Kemppi 2+保修零件和人工
應用：
金屬車間
建造業
農業
維修和保養
Outstanding welding performance is no overstatement. Every element of Minarc Evo 150 is designed to meet the needs of professional welders on the move. Where size, weight and welding quality are concerned, there is no equal.
Ideal for site use, you can use Minarc Evo 150 from mains or generator power supplies, even with extra long supply cables. Minarc Evo is easy to carry, so you can normally take everything you need in one journey.
Large voltage reserves and automatic arc force control provide excellent arc stability in all welding positions and for a wide range of electrode types, making sure you get quality welding results every time.
The large and clear meter display makes accurate current setting simple and easy, and precise lift TIG ignition ensures high quality DC TIG welding. Connect Minarc Evo’s remote control option and you can adjust welding parameters at distance during welding, for the ultimate convenience and weld pool control.
In brief
Premium welding performance
Use with all electrode types
PFC technology for ultimate energy efficiency
Designed for use with long supply cables
High current output and duty cycle
Lightweight and portable
Precise lift TIG technology
Mains network or generator use
Optional remote control
Kemppi 2+ warranty for parts and labour
Applications
Metal workshops
Construction industry
Agriculture
Repair and maintenance

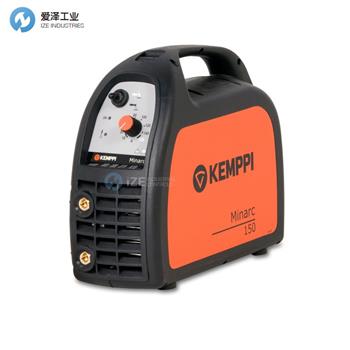

KEMPPI 便攜式焊機MINARC EVO 150
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件KEMPPI 便攜式焊機部分型號：
KEMPPI Minarc 150
KEMPPI Minarc 220
KEMPPI Minarc Evo 180
KEMPPI Minarc Evo 180 AU
KEMPPI Minarc Evo 140 AU
KEMPPI Minarc Evo 180 VRD
KEMPPI Minarc Evo 180 DK
KEMPPI Arc Welder NEW + ORIGINAL+ ONE YEAR WARRANTY
