HYDAC液位開關ENS3216-2-0410-000-K技術參數

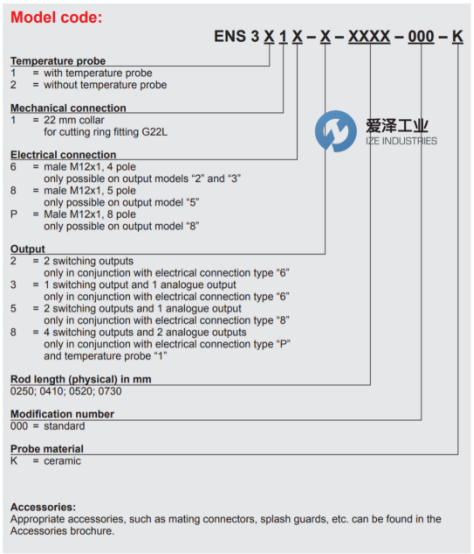

ENS3216-2-0410-000-K |
2 = without temperature probe |
1 = 22 mm collar for cutting ring fitting G22L |
6 = male M12x1, 4 pole only possible on output models “2” and “3” |
2 = 2 switching outputs only in conjunction with electrical connection type “6” |
0410=Rod length (physical) in mm |
000 = standard |
K = ceramic |
HYDAC液位開關ENS3000系列介紹及選型

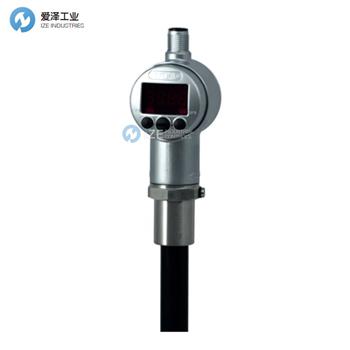

The ENS 3000 is an electronic level switch with integrated display function. The device has 1, 2 or 4 switching outputs and one optional analogue output signal. In addition to the conventional Min and Max switching signal, the variant with 4 switching outputs also enables the setting of additional warning signal messages, in order, for example, to avoid a tank overflow or a suctioning of air by the pump. The ENS 3000 can be used not only for oil but also for water; the measurement medium is selected in an application-specific menu item. The main applications of this ENS 3000 can be found primarily in hydraulics, e.g. for monitoring the filling level of a tank. The ENS 3000 is standard-available in the rod lengths 250 mm, 410 mm, 520 mm and 730 mm. The device is available to the user with or without temperature sensor.
1, 2 or 4 independent PNP transistor switch outputs
Opportunity of selecting between oil and water utilisation
Free assignment of the switching outputs to the measured variables
Switching points and reset points can be adjusted independently of one another
Reversible analogue output
4-character digital display
Simple handling through menu-guided key operation
ENS 3000 是一款具有集成顯示功能的電子液位開關。該設備有 1、2 或 4 個開關輸出和一個可選的模擬輸出信號。除了傳統的 Min 和 Max 開關信號之外，帶有 4 個開關輸出的變體還可以設置額外的警告信號消息，例如，以避免水箱溢出或泵吸入空氣。 ENS 3000 不僅可以用于油，還可以用于水；在特定于應用程序的菜單項中選擇測量介質。該 ENS 3000 的主要應用主要是在液壓系統中，例如用于監測儲罐的液位。 ENS 3000 標配長度為 250 毫米、410 毫米、520 毫米和 730 毫米的桿。該設備可供用戶使用或不使用溫度傳感器。
1、2 或 4 個獨立的 PNP 晶體管開關輸出
油水利用的選擇機會
將開關輸出自由分配給測量變量
開關點和復位點可以相互獨立調整
可逆模擬輸出
4位數字顯示
通過菜單引導的按鍵操作進行簡單處理
HYDAC液位開關ENS3000系列其他常用型號：
HYDAC ENS 3216-2-0250-000-K
HYDAC ENS 3216-2-0250-V00-K
HYDAC ENS 3216-2-0410-000-K
HYDAC ENS 3216-2-0410-V00-K
HYDAC ENS 3216-2-0520-000-K
HYDAC ENS 3216-2-0520-V00-K
HYDAC ENS 3216-2-0730-000-K
HYDAC ENS 3216-3-0250-000-K
HYDAC ENS 3216-3-0287-400-K
HYDAC ENS 3216-3-0410-000-K
HYDAC ENS 3216-3-0520-000-K
HYDAC ENS 3216-3-0730-000-K
HYDAC ENS 3216-F31-0250-000-K
HYDAC ENS 3216-F31-0410-000-K
HYDAC ENS 3216-F31-0520-000-K
HYDAC ENS 3216-F31-0730-000-K
