THERMO ELECTRIC熱電偶電纜P/ALPTWK-16-20-KX ANSI技術參數
ORDERING CODE | P/ALPTWK-16-20-XX | |
NUMBER OF PAIRS | 16 | |
NOM. OUTER JACKET THK. | .064 | |
NOM. OUTER JACKET DIAM. | .643 | |
MIN. BEND RADIUS | 3.75 | |
TENSION LOADING | 270 | |
NET WEIGHTL bS./1000 FT. | 235 | |
CAL IBRATION SYMBOL“XX” | KX |
THERMO ELECTRIC熱電偶電纜介紹

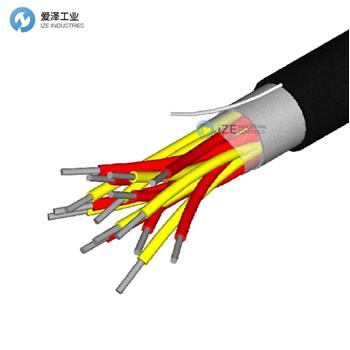

PVC INSULATION MULTI-PAIR THERMOCOUPLE CABLE
Individual conductors are insulated with a flexible polyvinyI chloride. Conductors are twlsted In palrs and numbered, a communlcatlons wlre Is added and pairs are cabled and a polyester backed aluminum tape shield aplled with a bare stranded copper draln wlre. A polyvlnyl chlorlde jacket is extruded over the shielded pair which includes a ripcord for easy jacket removal.
CABLE SPECIFICATIONS
Conductors: 20 Gauge Solid
Singles Insulation: .016" nominal, 105*C PVC
Construction: Twisted Pairs
Pair ldentification: One Conductor of Each Pair Numbered
Lay of Twist: 2 to 3"
Shield: Polyester Backed Aluminum Tape, 100% Coverage
Drain Wire: Stranded Uninsulated Tinned Copper
Communication Wire: Insulated (Orange) Stranded Copper
Jacket: 90*C PVC
聚氯乙烯絕緣多對熱電偶電纜
單獨的導體用柔性聚氯乙烯絕緣。 導體被絞合在一起并編號，添加了一個通信線，并且對線對進行了布線，一個聚酯背襯的鋁帶屏蔽層與一個裸絞合的銅線連接線連接在一起。 聚氯乙烯護套擠壓在屏蔽線對上，屏蔽線對包括一根拉繩，便于去除護套。
電纜規格
導體：20 號實心導體
單絕緣：0.016" 標稱，105*C PVC
結構：雙絞線
線對標識：每對中的一根導線已編號
捻向：2 至 3"
屏蔽：聚酯背襯鋁帶，100% 覆蓋
排擾線：多股非絕緣鍍錫銅
通訊線：絕緣（橙色）多股銅線
護套：90*C PVC
THERMO ELECTRIC熱電偶電纜其他常用型號：
THERMO ELECTRIC P/ALPTWK-16-20-KX ANSI
THERMO ELECTRIC P/ALPTWK-04-20-KX ANSI
THERMO ELECTRIC VERTICAL STANDARD PANEL NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THERMO ELECTRIC熱電偶電纜P/ALPTWK-16-20-KX ANSI的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for THERMO ELECTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
