M.C. Miller電壓表LC 4.5技術參數
Logic | CMOS, crystal controlled timing. |
Display | Liquid crystal, 3 1/2 digits, 0.5" high. |
DC Volt Range | 0 - 20 mV (0.01 mV resolution) |
AC Volt Range | 0 - 600 V (1 V resolution) |
Resistance Range | 0-200 Ohms (0.1 Ohm resolution) |
DC Current Range | Using optional .001 Ohm LC Shunt: 0-20 A (0.01 A resolution) |
Accuracy | DCV: 1% of reading ±1 digit. |
AC Rejection @ 50/60/400 Hz | 20 mV range: 20 mV AC |
DC Rejection | 600 VAC range: 600 VDC |
Zero | Automatic |
Decimal Point | Automatic; set by range switch. |
Polarity | Automatic; negative symbol displayed, positive assumed. |
Input Resistance | 20 mV range; 1000 Ohms. All other DCV ranges are switch selectable (10, 25, 50, 100, 200 MΩ). |
Operating Temp | 8°F to 176°F (-14°C to 80°C). |
Battery | One 9V alkaline recommended. |
Dimensions | 6-1/8 x 3-5/8 x 1-3/4" overall (15 x 8 x 4.5 cm) |
Weight | 11 oz. approx. (0.312 kg.) |
M.C. Miller電壓表LC 4.5產品介紹
LC-4.5 型是一款包含許多特殊功能的手持式電壓表，可進行結構的腐蝕和陰極保護測試。 它為絕大多數環境條件下的現場測試而設計。 密封的規格開關、密封窗、帶襯墊的外殼和雙面烘烤防潮和防真菌涂層的印刷電路板使這成為可能。
大尺寸（0.5 英寸）顯示字符在高光和低光條件下都易于閱讀，并且在很寬的溫度范圍內都可以正常工作，而且電池消耗很少。
LC-4.5 推薦用于電位測量、側漏測量、表面電位測量、IR 壓降測量、檢查整流器的 AC 和 DC 電路、檢查雜散或危險的 AC 電位以及檢查陽極。 直流電流測量需要使用可選的插入式分流器 (0-20 Amp)。
可選擇的輸入電阻特性允許檢測外部電路中的高電阻并消除幾乎絕大多數情況下產生的錯誤。
按住讀數按鈕可在任何需要的時間凍結顯示，這使得儀表可用于具有不同雜散電流的許多區域。 它在進行即時關閉和協調測試時也很有用。

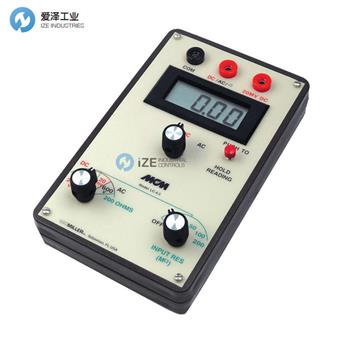

Model LC-4.5 is the first hand-held voltmeter to include a number of special features which facilitate corrosion and cathodic protection testing on underground structures. It is designed for field testing under almost any environmental conditions. Sealed Mil-Spec switches, sealed windows, a gasketed case and a printed circuit board with baked-on moisture and fungus resistant coating on both sides make this possible.
The large (0.5 in) display characters are easy to read under both high and low lighting conditions and function over a wide temperature range with very little drain on the battery.
The LC-4.5 is recommended for potential surveys, side drain measurements, surface potential surveys, IR drop measurements, checking both the AC and DC circuits of rectifiers, checking for stray or hazardous AC potentials, and checking galvanic anodes. DC current measurements require the use of an optional plug-in shunt (0-20 Amp).
The selectable input resistance feature permits detection of high resistance in the external circuit and elimination of resulting errors in virtually all cases.
The push-to-hold-reading button freezes the display at any desired time, which makes the meter usable in many areas having varying stray currents. It is also useful when conducting instant-off and coordinated tests.
