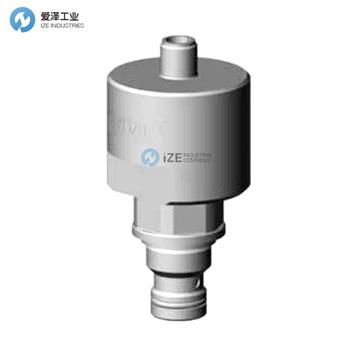

HYDAC差壓指示器VL系列規格描述
Type of indication | Electronic/analogue (4-20 mA) for condition monitoring filters incl. bypass monitoring. 1 switching contact at 75% and at 100% of the pressure setting |
Weight | 157 g |
Pressure setting p (switching contact 100%） | 2 bar ±5% 3 bar ±5% 5 bar ±5% |
Indication range△p | 0 to 5 bar 0 to 5 bar 0 to 8 bar |
Indication range "pressure before filter" | 25 bar |
Type of switching switching outputs ?p | electronic switch, PNP positive switching N/O or N/C contacts (factory setting) |
Output Load | 400 mA |
Max. switching voltage / operating voltage | 20 to 30 V DC |
Analogue outputs "press. before filter" &△p | 4 to 20 mA (max. resistance 600?) |
Electrical connection | M12 x 1 / 8 pole |
Protection class to DIN 40050 | IP 65 |
Permitt. operating pressure | 25 bar |
Permitt. temperature range | -40 °C to +85 °C |
Thread | G 1 /2 |
Max. torque | 33 Nm |
Order example | VL 5 GW.0 /-V-123 |
HYDAC差壓指示器VL系列描述及選型
DirtController
Recording of inlet pressure and differential pressure at the filter for continuous monitoring of system and filter functions
Max. differential pressure: 25 bar
Versions: optical-electrical-analogue, electronic-analogue
Typical response pressures: 2 / 3 / 5 bar
污垢控制器
記錄過濾器入口壓力和壓差，以持續監控系統和過濾器功能
最大限度。 壓差：25 bar
版本：光電模擬，電子模擬
典型響應壓力：2 / 3 / 5 bar
HYDAC差壓指示器VL系列其他常用型號：
HYDAC VL 3 GW.0 /-V-113
HYDAC VL 3 GW.0 /-V-123
HYDAC VL 5 GW.0 /-V-113
HYDAC VL 5 GW.0 /-V-123
HYDAC VL1GW.0/-V-121-16-4
