HONEYWELL控制器DC3200-RE-100R-100-00000-00-0技術參數
DC3200-RE-100R-100-00000-00-0 | |
DC3200 | Description： Digital Controller for use with 90 to 264Vac Power |
R | Output #1：Dual 2 Amp Relays (Both are Form A) (Heat/Cool Applications) |
E | Output #2：E-M Relay (5 Amp Form C) Plus Alarm 1 (5 Amp Form C Relay) |
1 | Communications：Auxiliary Output/Digital Inputs (1 Aux and 1 DI or 2 DI) |
0 | Software Selections：Standard Functions, Includes Accutune |
0 | Reserved：No Selection |
R | Infrared interface：Infrared Interface Included (Can be used with a Pocket PC) |
1 | Input 1： TC, RTD, mV, 0-5V, 1-5V |
00 | Input 2：None |
0 | Approvals：CE (Standard) |
0 | Tags：None |
0 | Future Options：None |
0 | Future Options：None |
0 | Future Options：None |
0 | Manuals：Product Information on CD - All Languages |
0 | Certificate：None |
0 | No Selection：None |

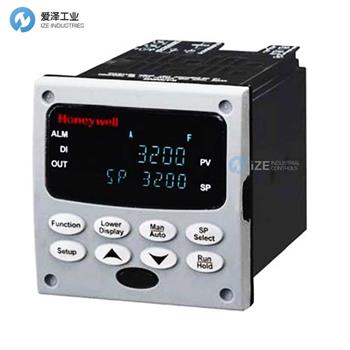

HONEYWELL控制器UDC3200系列產品介紹
UDC3200 通用數字控制器是一款優質的控制器，1/4 DIN 尺寸引入了新功能，同時保留了其前代產品的可靠性、成本效益、簡單性和流行的界面。
紅外(IR)配置接口，兩個通用模擬輸入和一個數學模式
算法當這些結合與Accutune III?調諧與模糊
邏輯超調抑制，結果是價格/性能領先。
通過通用模擬輸入、通用交流電源、兩個數字輸入、最多5個模擬和數字輸出、RS422/485 Modbus RTU或以太網10base-T TCP/IP通信協議、簡單配置和全現場升級功能，保證了應用程序的靈活性。
The UDC3200 Universal Digital Controller is an advanced controller that introduces new features to the popular low-priced 1/4 DIN size, while retaining the reliability,cost-effectiveness,simplicity and popular interface of its predecessors
Infrared (IR) Configuration interface, two universal analog inputs and a Math
Algorithm. When these are combined with the Accutune III? tuning with fuzzy
logic overshoot suppression, the result is price/performance leadership.
Application flexibility is assured by the universal analog inputs, universal AC power supply, two digital inputs, a maximum of five analog and digital outputs, RS422/485 Modbus RTU or Ethernet 10Base-T TCP/IP communication protocols, simple configuration plus total field upgrade capability for any optional feature.

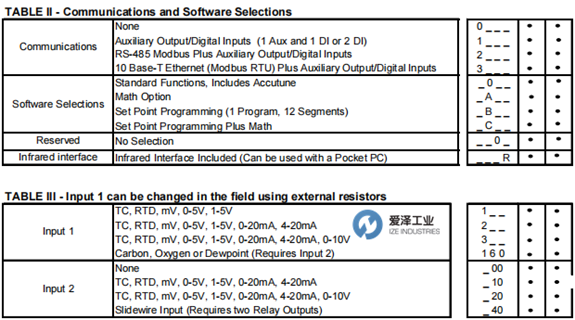

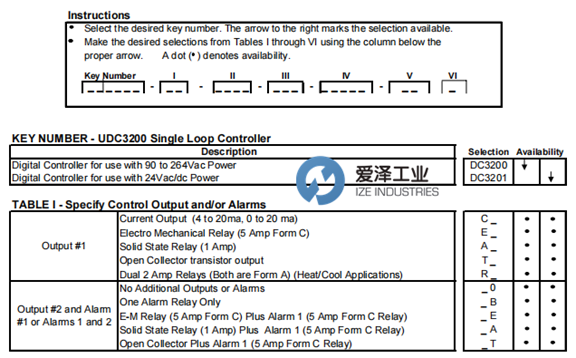

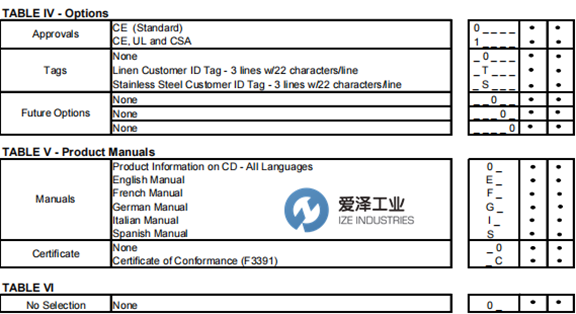

HONEYWELL控制器UDC3200系列選型
HONEYWELL控制器UDC3200系列其他常用型號：
HONEYWELL DC3200-RE-100R-100-00000-00-0
HONEYWELL DC3200-CB-100R-210-00000-00-0
HONEYWELL DC3200-CE-100R-100-10000-00-0
HONEYWELL DC3200-R0-100R-100-00000-00-0
HONEYWELL DC3200-C0-000R-100-00000-00-0
HONEYWELL DC3200-C0-0A0R-110-00000-00-0
HONEYWELL DC3200-R0-000R-100-00000-00-0
HONEYWELL DC3200-C0-000R-100-00000-00-0
HONEYWELL DC3200-C0-100R-110-00000-00-0
HONEYWELL DC3200-EB-2A0R-160-00000-00-0
HONEYWELL Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL控制器DC3200-RE-100R-100-00000-00-0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
