TOX壓力傳感器ZPS系列技術參數
Technical data | |
Rated output: | 1.1 mV /V |
Temperature range: | -10° to +65° |
Zero balance: | ± 2% |
Supply voltage: | 10VDC (max. 15V) |
Insulation resistance: | 1GΩ |
Nominal impedance: | 760Ω |
Electric connection: | System Fischer |
Combined error: | < ± 0.5% |
Overload: | 115% |
Protection class: | IP54 |

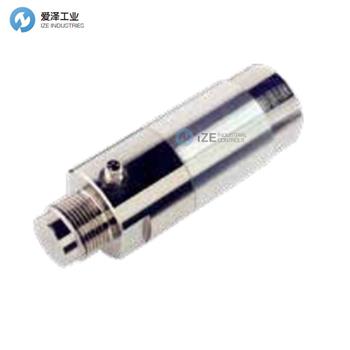

TOX壓力傳感器ZPS系列介紹及選型
壓力傳感器ZPS可以直接安裝在TOX-Powerpackage的工作活塞上。
可以在推拉方向上測量壓力。 傳感器被密封以防灰塵和濕氣。建議使用防旋轉裝置ZPSV，以免損壞連接電纜。
The press force sensor ZPS can be mounted directly on the working piston of the TOX-Powerpackage.
It is possible to measure the press forces in push and pull direction. The sensor is sealed against dirt and moisture.The anti-rotation device ZPSV is recommended to avoid damage of the connection cable.
TOX壓力傳感器ZPS系列其他常用型號：
TOX ZPS 030.058.130.002
TOX ZPS 015.048.115.002
TOX ZPS 004.030.090.003
TOX ZPS 008.048.115.002
TOX ZPS 002.025.075.002
TOX ZPS 015.048.115.002
TOX ZPS 100.100.180.002
TOX ZPS 050.068.150.002
TOX ZPS 004.030.090.003
TOX ZPS 015.048.115.002
TOX Pressure Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TOX壓力傳感器ZPS 030.058.130.002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TOX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

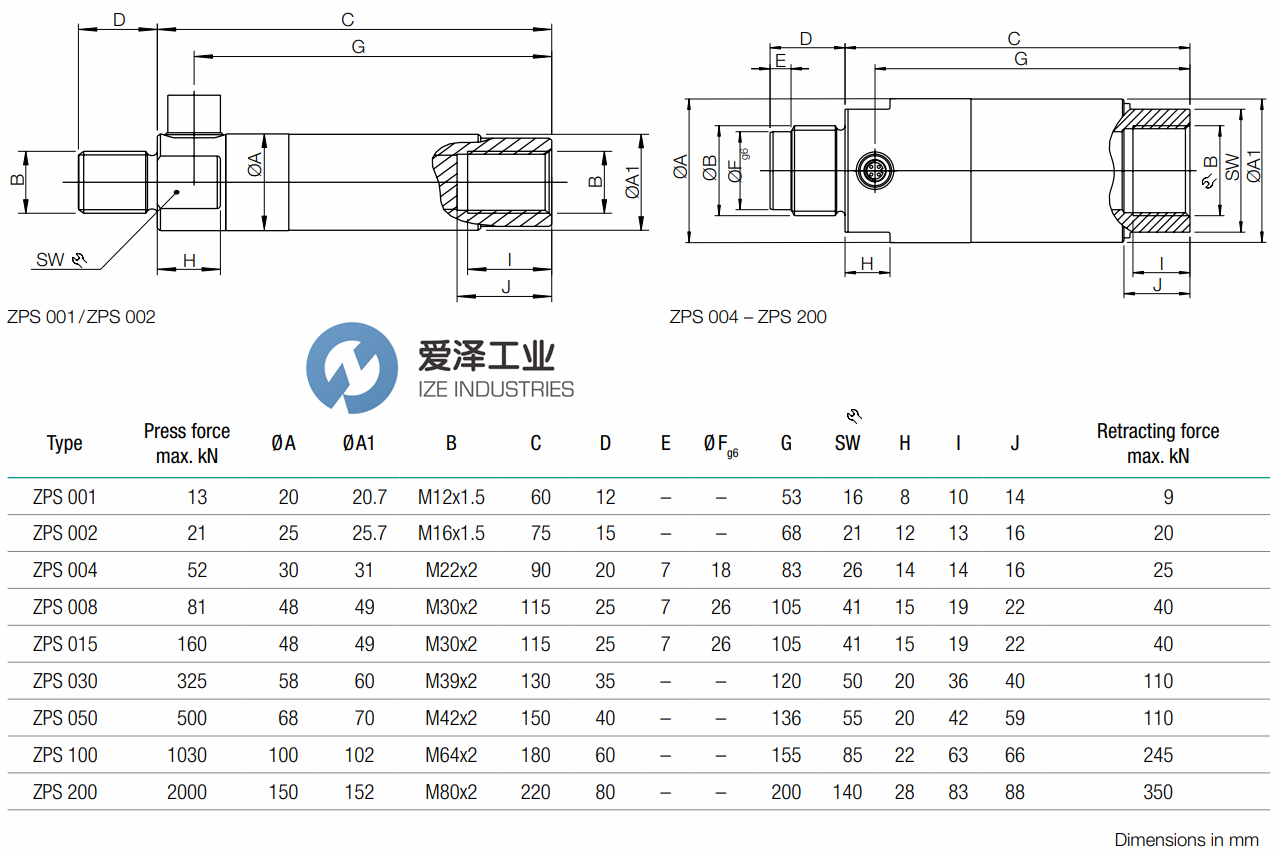

TOX壓力傳感器ZPS系列ZPS 030.058.130.002介紹
