GF SIGNET流量計3-2551-P2-22 159001438技術參數
Pipe Size | DN250 to DN900 (10 to 36 in.) |
Mfr. Part No. | 3-2551-P2-22 |
Code | 159 001 438 |
Sensor Body | Polypropylene and 316L SS |
GF SIGNET流量計2551系列介紹
Signet 2551磁流量計是一種插入式磁流量傳感器，具有無運動部件的特點。該傳感器設計采用耐腐蝕材料，提供長期穩定性，維護成本低?？蛇x材料包括與不銹鋼結合的PP、與哈氏合金C結合的PVDF或與鈦結合的PVDF。利用Signet全面的安裝配件，傳感器的對齊和插入深度是自動的。這些多功能、易于安裝的傳感器在管道尺寸從DN15到DN900（?到36英寸）范圍內提供廣泛的動態范圍內的準確流量測量，滿足許多不同應用的需求。
Signet 2551磁流量計提供多種輸出選項，包括頻率/數字（S3 L）或4到20 mA，這些選項在盲式和顯示版本中均可用。頻率或數字（S3 L）傳感器輸出可與Signet豐富的流量?jī)x器系列配合使用，而4到20 mA輸出可直接輸入到PLC、記錄儀等設備中。4到20 mA輸出和數字（S3 L）傳感器接口均可用于遠距離信號傳輸。此外，傳感器還具備空管檢測功能，當傳感器未完全淹沒時會輸出零流量。此外，頻率輸出為雙向，而4到20 mA輸出可以通過顯示器或連接到PC進行編程的3-0252配置工具設置為單向或雙向流動。
此外，顯示版本的2551磁流量計可配備繼電器，具有永久和可復位的累計值，可以在顯示器上存儲并查看。此外，顯示器支持多種語言，包括英語、西班牙語、德語、法語、意大利語和葡萄牙語菜單選項。

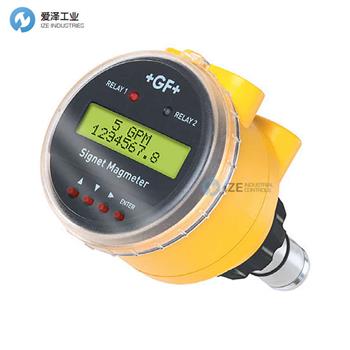

The Signet 2551 Magmeter is an insertion style magnetic fl ow sensor that features no moving parts. The patented* sensor design is available in corrosionresistant materials to provide long-term reliability with minimal maintenance costs. Material options include PP with stainless steel, PVDF with Hastelloy-C, or PVDF with Titanium. Utilizing the comprehensive line of Signet installation fi ttings, sensor alignment and insertion Depth is automatic. These versatile, simple-to-install sensors deliver accurate fl ow measurement over a wide dynamic range in pipe sizes ranging from DN15 to DN900 (? to 36 inches), satisfying the requirements of many diverse applications.
Signet 2551 Magmeters off er many output Options of frequency/digital (S3 L) or 4 to 20 mA which are available on both the blind and display versions. The frequency or digital (S3 L) sensor output can be used with Signet’s extensive line of fl ow instruments while the 4 to 20 mA output can be used for a direct input to PLCs, chart recorders, etc. Both the 4 to 20 mA Output and digital (S3 L) sensor interface is available for Long distance signal transmission. An additional benefi t is the empty pipe detection which features a zero fl ow Output when the sensors are not completely wetted. Also, the frequency output is bi-directional while the 4 to 20 mA output can be set for uni- or bi-directional fl ow using the display or the 3-0252 Confi guration Tool which connects to PCs for programming capabilities.
In addition, the display version of the 2551 Magmeter is available with relays and features permanent and resettable totalizer values, which can be stored and seen on the display. Also, the display contains multi-languages with English, Spanish, German, French, Italian and Portuguese menu options.
GF SIGNET流量計2551系列其他常用型號：
GF SIGNET 3-2551-P0-22 159 001 273
GF SIGNET 3-2551-P1-22 159 001 274
GF SIGNET 3-2551-P2-22 159 001 438
GF SIGNET 3-2551-T0-22 159 001 439
GF SIGNET 3-2551-T1-22 159 001 440
GF SIGNET 3-2551-T2-22 159 001 455
GF SIGNET 3-2551-V0-22 159 001 275
GF SIGNET 3-2551-V1-22 159 001 276
GF SIGNET 3-2551-V2-22 159 001 457
GF SIGNET Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF SIGNET流量計3-2551-P2-22 159001438的疑問，請隨時與我們電聯，（021-3Signet 9900 6702），我們將盡全力解決您的問題。
If you have any question for GF SIGNET products, please feel free to dial 0086-21-3Signet 9900 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
