JAQUET轉速控制器T400系列產品參數
Specification | |
Measuring range | Lowest:0…1.000 Hz Highest: 0...35.00 kHz |
Measurement time Configurable min. measurement time (tM): | 2/5/10/20/50/100/200/500 ms, 1/2/5 s |
Reaction time | |
Current output: | Typical tM + 7.5 ms Maximum Input period + tM + 7.5 ms |
Relays: | Typical tM + 10.5 ms Maximum Input period + tM + 10.5 ms |
Accuracy | 0.5% referred to the analog output end of range value |
Analog output (1) | |
T401/T401.00: | Current output 0...20 mA resp. 4...20 mA |
T402/T412: | Voltage output 0...10 V resp. 2...10 V |
Programmable rising or falling transfer function (min. end value 1.00 Hz) | |
Load T401/T401.00: max. 500 Ohms corresponding to a maximum of 10 V | |
Load T402/T412: min. 7 kOhm corresponding to a maximum of 1.4 mA | |
Maximum open circuit voltage: | 12 V |
Resolution: 12 bit corresponding to 1:4096 | |
Maximum linearity error: | 0.001 |
Temperature drift: | typ. ± 100 ppm/degree K, max. ± 300 ppm/degree K |
Set points /relay (2) | |
Hysteresis: For each limit an upper and a lower set point may be set independently | |
Change over contact: max. 250 VAC, 1250 VA (DC: see operating instructions) | |
Data I/O | |
RS232 interface with +5 V-CMOS level 3-pole. 3.5 mm stereo headphone connector on the front side. | |
Sensor input (1) | |
Input resistance | Analog 30 kOhm / Digital 46 kOhm |
Frequency range | 0.01 Hz /35 kHz |
Trigger level Analog input: | Adaptive trigger level from 28 mV to 6.5 V or 250 mV to 6.5 V peak depending on the amplitude of the input signal. |
Digital input: | Digital fixed trigger at 3 V ± 1.5 V hysteresi |
Sensor supply | |
Standard | + 14 V, max. 35 mA, short-circuit proof |
S5 version | + 5 V , max. 35 mA, short-circuit proof |
Built-in pull up and pull down resistor 820 Ohm for connection of two-wire transmitters or daisy chaining of T400’s | |
Sensor monitoring | |
Sensor monitoring 3 wire sensors: programmable current consumption limits of 0.5…35mA. Outside the selected range the sensor is signaled as faulty . | |
Electromagnetic sensors: | continuity checked. Open circuit signaled as a fault. |
None: | Both sensor monitoring functions may be disabled. |
Open collector output (1) | Galvanically separated output of sensor frequency |
Binary inputs (1) | |
For external selection between two sets (A/B) of programmable relay control and acknowledge functions: (No external pull up needed) | |
Low active : | U < +1.5V |
High (open) : | U > +3.5V |
Environmental | |
KUE according to DIN 40 040 | |
Operating temperature: | - 40…+85 ?C |
Storage temperature: | -40…+90 ?C |
Relative humidity up to 75% average over one year period, up to 90% max. for 30 days | |
Power supply | 10...36 VDC power consumption max. 3 W |
Insulation | |
Galvanic separation between power supply, current output and the sensor power supply. | |
Isolation 700 VDC / 500 VAC. Relay contact isolation: 1500 AC | |
EMC | |
Electromagnetic compatibility: | Radiation in accordance with international standards and EN 50081-2. Immunity in accordance with international standards and EN 50082-2 |
Conducted emissions: | CISPR 16-1, 16-2 Radiated emissions: EN 55011 |
Electrostatic discharge: | IEC 61000-4-2 Electromagnetic fields: IEC 61000-4-3 |
Conducted fast transients: | IEC 61000-4-4 Conducted slow transients: IEC 61000-4-5 |
Conducted high frequency: | IEC 61000-4-6 |
Pulse modul. elec. field: | ENV 50140 |
Power frequency magnetic field: | IEC 1000-4-8 |
Standards | EN 50155, GL / Germanischer Lloyd, ABS |

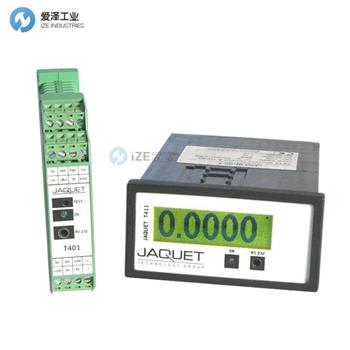

JAQUET轉速控制器T401.00產品介紹
?將絕對速度轉換為模擬信號
?包括2個可編程滯后限值（A/B）
?一個通過二進制輸入分配到限位（A或B）的轉換繼電器
?帶顯示屏的T401.00和T412型號
?帶自動觸發電平調整的隔離信號輸入
?帶傳感器監控的內置隔離傳感器電源
?傳感器頻率的電極輸出
?限值精度等級為0.05%，模擬信號精度等級為0.5%
?通過Windows?軟件配置和狀態
?5位數機器系數，允許以機器單位進行配置和顯示
?寬公差10…36 VDC電源
? Converts absolute speed into an analog signal
? Including 2 limits (A/B) with programmable hysteresis
? One changeover relay assigned via binary input to limit (A or B)
? T401.00 and T412 models with display
? Isolated signal input with automatic trigger level adjustment
? Built in isolated sensor supply with sensor monitoring
? Open collector output of sensor frequency
? Accuracy class 0.05% for limits and 0.5% for analog signals
? Configuration and status via Windows? software
? 5 digit machine factor allowing configuration and display in machine units
? Wide tolerance 10...36 VDC power supply
JAQUET轉速控制器T400系列其他常見型號：
JAQUET T401.00
JAQUET T402.00
JAQUET T412.00
JAQUET T411
JAQUET Single Channel Tachometer NEW + ORIGINAL+ ONE YEAR WARRANTY
