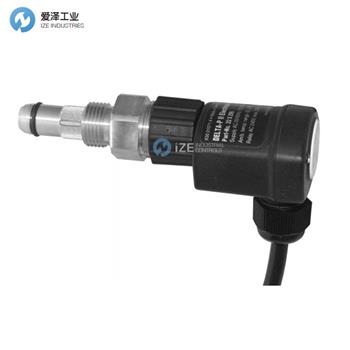

KRIWAN油壓傳感器PATHFINDER系列產品參數
Specification | |
Article category | oil pressure sensor |
Supply voltage | AC 115-230V |
Permitted ambient temperature | -30…+70°C |
Switch delay: After applying the supply voltage | 3s ±1s |
Switch delay: Error | 5s ±2s |
Relay: Connection | AC 240V 2.5A C300 |
Relay: Mechanical service life | Approx. 1 millon switching cycles |
Protection class acc. To EN 60529 | IP54 |
Connection type | Cable 6xAWG-18 (0.75mm2) L = 1m |
Mounting | Union nut |
Weight | Approx. 100g |
Check base | EN 61000-6-2, EN 61000-6-3, EN 61010-1, Overvoltage category II, Pollution level 2 |
Approval | UL File no. E222056 |
Media temperature | -30…+90°C |
Operating pressure | 30bar |
Housing material | PA glass-fibre-reinforced |
Differential pressure | 0,65bar ±0.15bar |
KRIWAN油壓傳感器DELTA-P II系列其他常見型號：
KRIWAN DELTA-P Screw-in part
KRIWAN DELTA-P II 22S571
KRIWAN DELTA-P II 22S295
KRIWAN DELTA-P II 22S571S80
KRIWAN oil pressure sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KRIWAN油壓傳感器DELTA-P II的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KRIWAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KRIWAN油壓傳感器DELTA-P II產品參數
