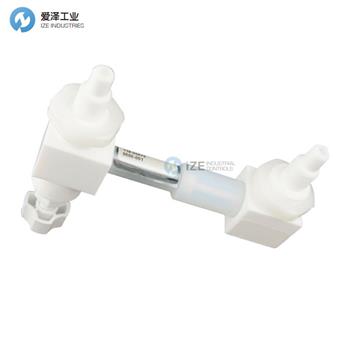

FUTURESTAR流量計118-040產品參數
Specification | |
MATERIALS | |
Wetted parts | PTFE, PFA, TFM and CTFE |
Non-wetted parts | PVDF and polypropylene |
OPERATING | |
Accuracy | 5% full scale |
Maximum temp | 120°C (248°F) |
Maximum pressure | 100 psi |
FUTURESTAR流量計PATHFINDER系列產品介紹
Pathfinder系列變截面流量計由垂直管內的固體浮子組成。
流體進入管的底部，導致浮子上升。隨著流速的增加，管內的浮子上升，浮子與管壁之間的面積增加。浮子的向上或向下運動對應于管中的流體流速。在管子外部標記的從1到10的漸變允許觀察者通過管子中浮子的位置來參考流速。直接讀取刻度標簽可用。三種流量計設計可為超低，中低流量提供優化的性能。
Pathfinder Series variable area flowmeters consist of a solid float inside a vertical tube.
Fluid enters at the base of the tube causing the float to rise. As the rate of flow increases, the float inside the tube rises, the area between the float and the tube wall increases. The upward or downward movement of the float corresponds to the rate of fluid flow in the tube. Gradations from 1 through 10, marked on the outside of the tube, allow the observer to reference the flow rate by the position of the float in the tube. Direct read scale labels are available.Three flowmeter designs provide optimized performance for ultra low, low and medium flow.
FUTURESTAR流量計PATHFINDER系列其他常見型號：
FUTURESTAR 118-040
FUTURESTAR 118-030
FUTURESTAR 118-035
FUTURESTAR 118-005
FUTURESTAR 118-019
FUTURESTAR 149-0300
FUTURESTAR 148-010
FUTURESTAR 148-035
FUTURESTAR 100-030
FUTURESTAR 168-060
FUTURESTAR 154-005
FUTURESTAR 100-010
FUTURESTAR 100-015
FUTURESTAR 108-040
FUTURESTAR flowmeters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FUTURESTAR流量計118-040的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FUTURESTAR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
