MEAS壓力傳感器M5100系列產品參數
Specification | |||||
PARAMETERS | MIN | TYP | MAX | UNITS | NOTES |
Accuracy (combined non linearity, hysteresis, and repeatability) | -0.25 | 0.25 | %Span | 1 | |
Long Term Stability (1 year) | -0.25 | 0.25 | %Span | ||
Total Error Band (over compensated range) | 士1 | %Span | 2 | ||
Compensated Temperature | -20 | 85 | 。C | ||
Operating Temperature | -40 | 125 | 。C | ||
Storage Temperature | -45 | 125 | 。C | ||
Burst Pressure | 5X | Rated | |||
Vibration (20 to 200Hz) | 士20 | g | 3 | ||
Shock (11ms) | 50 | g | 4 | ||
Pressure Cycles (Zero to Full Scale) | 10 | Million | |||
Pressure Overload | 2X | Rated | |||
Weight | 82.2 | grams |
MEAS壓力傳感器M5100系列產品介紹
MEAS的Microfused系列，為高要求的商業和重工業應用制定了新的性價比標準。該系列適用于液體或氣體壓力的測量，即使是困難的介質，如受污染的水、蒸汽和輕度腐蝕性液體。
傳感器壓力腔由17-4 PH不銹鋼實心件加工而成。標準版本包括1/4 NPT管螺紋，允許采用防漏、全金屬密封系統。沒有暴露在壓力介質中的O型環、焊縫或有機物。經久耐用。M5100超過了最新的重工業CE要求，包括浪涌保護，并且在正、反極性上都有16Vdc的過電壓保護。
The M5100 series pressure transducers from the Microfused? line of MEAS, set a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.
The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings, welds or organics exposed to the pressure media. The durability is excellent. The M5100 exceeds the latest heavy industrial CE requirements including surge protection, and is over voltage protected to 16Vdc in both positive and reverse polarity.

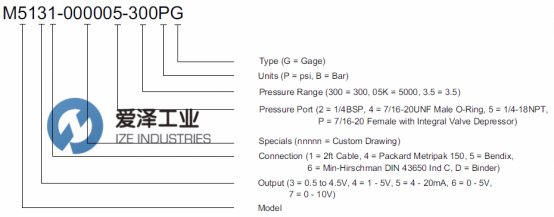

選型參考
MEAS壓力傳感器M5100系列其他常見型號：
MEAS M5132-000004-100PG
MEAS M515X-C2215E-010BG
MEAS M515X-C1964E-016BG
MEAS M515X-C2215E-016BG
MEAS M5131-000005-300PG
MEAS M5131-000005-2K5PG
MEAS M5131-000005-500PG
MEAS M5131-000005-05KPG
MEAS pressure transducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MEAS壓力傳感器M5156-050882-020BG的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MEAS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MEAS壓力傳感器M5100系列M5156-050882-020BG產品介紹
