GRACEPORT指示器R-3W2規格描述
Electrical Specifications | |
Voltage Indicator (R-3W2) | Flashing LEDs, Multi-Environment (Cat III/Cat IV Rated) |
Voltage Type | AC/DC |
Operational Voltage Range | 40-600VAC 50/60Hz, 30-1000VDC |
Storage Temperature Range | -45°C to + 85°C |
Operational Temperature Range | -20°C to +55°C |
Voltage to Door Required | No |
Lead Connections | 3 Phase, 4 Wire |
GRACEPORT指示器介紹

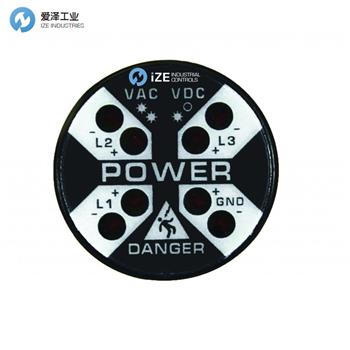

Grace Voltage Indicators are self powered, UL listed, and permanently installed devices that visually represent presence of voltage with flashing or non-flashing, redundant LED lights. Typically hardwired to the load side of an electrical feeder or a disconnect switch, voltage indicators illuminate whenever hazardous voltage is present in any individual phase.
寬限電壓指示器是自供電，UL認證且已永久安裝的設備，它們通過閃爍或不閃爍的冗余LED燈直觀地表示電壓的存在。通常將其硬接線到電氣饋線或隔離開關的負載側，只要任何單個相中存在危險電壓，電壓指示器就會點亮。
GRACEPORT指示器R系列其他常用型號：
GRACEPORT R-3W
GRACEPORT R-3W-SR
GRACEPORT R-3W2
GRACEPORT R-3F2
GRACEPORT R-3W-DC
GRACEPORT R-3D2
GRACEPORT Safety switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRACEPORT指示器R-3W2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRACEPORT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
