PEM探頭CWT MiniHF系列技術參數
Performance | |
Peak current | 30A peak to 120kA peak |
Output | ±6.0V peak corresponding to 'Peak Current' into ≥100k? |
High Frequency Bandwidth (-3dB) | 30MHz (100mm coil), 23MHz (200mm coil); CWT MiniHF |
Low Frequency Bandwidth (-3dB) | Varies with model type |
Accuracy (typ.) | Calibrated to ±0.2% with conductor central in the Rogowski loop |
Operating temperature range | 0℃ to +40℃ (Integrator electronics) |
Coil Lengths | 100 or 200mm (custom lengths available) |
Peak coil insulation (coil thickness) | 2kV peak (3.5mm thickness) *CWT Mini Only |
Cable Length (coil to integrator) | 1m, 2.5m or 4m (custom lengths available) |
Power Supply | Option ‘B’ Battery 4 x AA (1.5V standard alkali batteries) |
Option ‘R’ Rechargeable Battery 4 x AA (1.2V NiMH batteries) with on-board trickle charge circuitry. |

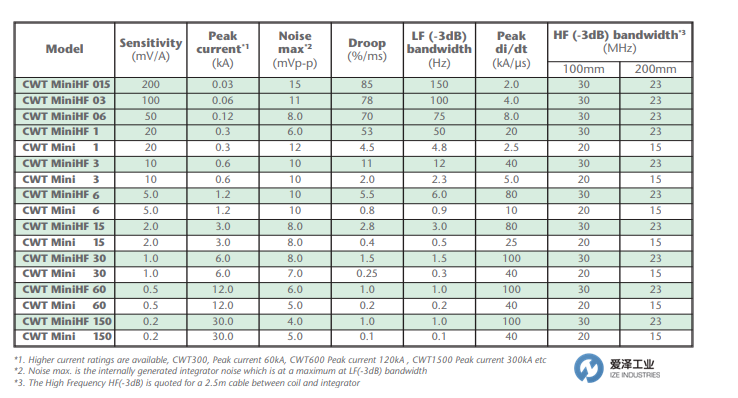

PEM探頭CWT MiniHF系列產品參數介紹及選型
PEM探頭CWT MiniHF系列其他型號：
PEM CWT MiniHF015
PEM CWT MiniHF03
PEM CWT MiniHF06
PEM CWT MiniHF1
PEM CWT Mini1
PEM CWT MiniHF3
PEM CWT Mini3
PEM CWT MiniHF6
PEM CWT Mini6
PEM CWT MiniHF15
PEM CWT Mini15
PEM CWT MiniHF30
PEM CWT Mini30
PEM CWT MiniHF60
PEM CWT Mini60
PEM CWT MiniHF150
PEM CWT Mini150
PEM Probe NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PEM探頭CWT MiniHF 3 200mm的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for PEM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

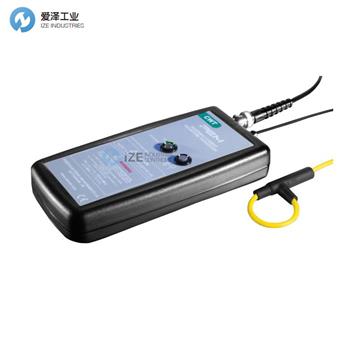

PEM探頭CWT MiniHF系列CWT MiniHF 3 200mm介紹
