PLATON流量計配件RGTF系列產品參數
Specification-FLOWTUBES | |
Flowtube | Borosilicate glass, precision moulding in three diameters to suit flow range |
Scale | Fused ceramic black ink |
Scale Length | NG Series – 100mm nominal |
Float | Precision machined float, rotates to give flow visualisation |
Accuracy | ±1.25% FSD standard for NG Series |
Calibration | All tubes are flow tested. Standard scales are for air & water, as listed. Custom scales to suit process fluid |
PLATON流量計配件RGTF2BHD-A產品介紹
完整的VA流量計包括一個玻璃流量管和按比例縮放至所需流量單位的浮子，以及一個框架，用于提供端塊支撐并覆蓋和保護該管道。NG系列機架使用標稱100毫米長刻度的流量管。要選擇完整的流量計，請選擇機架并單獨選擇流量管。
易于使用，可見度高
簡單可靠
氣體或液體流量測量
背板：黑色陽極氧化鋁
端塊：后綴B –黃銅，后綴S-不銹鋼
密封：丁腈在黃銅上的單位Viton在不銹鋼上的單位
流量管：硼硅酸鹽玻璃
浮子：參見所選流量管
HD：中空硬質合金，紅色陽極氧化
HS：空心不銹鋼鋼
SS：實心不銹鋼
精度高達±1.25％FSD
秤100mm
無需工具即可拆卸玻璃管
空氣或氣體校準的流量計刻度基于1,013 bar abs的標準條件。和20°C

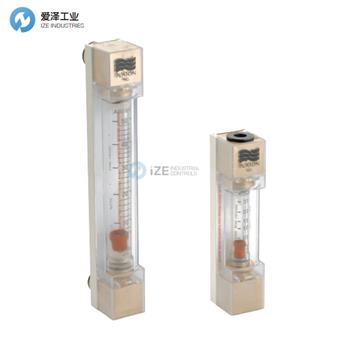

A complete VA flowmeter consists of a glass flow tube and float scaled to the flow units required, and a frame to provide the end block supports and to cover and protect the tube. The NG series frames use flow tubes with nominal 100 mm long scales. To choose a complete flowmeter select frame and separately the flow tube.
Easy to Use, high visibility scale
Simple and reliable
Gas or Liquid flow measurement
Backplate : black anodised aluminium
End block: suffix B – Brass, suffix S- Stainless Steel
Seals: Nitrile on brass units Viton on stainless steel units
Flowtube: borosilicate glass
Float: see flow tube choosen
HD: Hollow Dural, red anodised
HS: Hollow Stainless Steel
SS: Solid Stainless Steel
Accuracy up to ±1.25% FSD
Scales 100mm
Glass tube removal without tools
Air or gas calibrated Flowmeters scales are based on standard conditions of 1,013 bar abs. and 20°C
PLATON流量計配件RGTF2BHD-A其他常見型號：
PLATON RGTF1CHD-A
PLATON RGTF1BHD-A
PLATON RGTF1AHD-A
PLATON RGTF1AHS-A
PLATON RGTF2CHD-A
PLATON RGTF2BHD-A
PLATON RGTF2AHD-A
PLATON RGTF2AHS-A
PLATON RGTF1ASS-C
PLATON RGTF2BHS-C
PLATON RGTF2AHS-C
