PLATON流量計RGTF系列產品參數
Model (For gases) | Air @ ATO (1.013 bar abs. & 20?C) | Frame Size |
RGTF1CHD-A | 5-100 cm/min | 1 |
RGTF1BHD-A | 50-250 cm2/min | 1 |
RGTF1AHD-A | 50-500 cm2/min | 1 |
RGTF1AHS-A | 100-1000 cm3/min | 1 |
RGTF2CHD-A | 0.5-2.5 L/min | 2 |
RGTF2BHD-A | 0.5-5 L/min | 2 |
RGTF2AHD-A | 2 -10 L/min | 2 |
RGTF2AHS-A | 5 -25 L/min | 2 |
Model (for liquids) | Water at 20?C | Frame Size |
RGTF1ASS-C | 1-5 L/h | 1 |
RGTF2BHS-C | 5-15 L/h | 1 |
RGTF2AHS-C | 5-40 L/h | 2 |

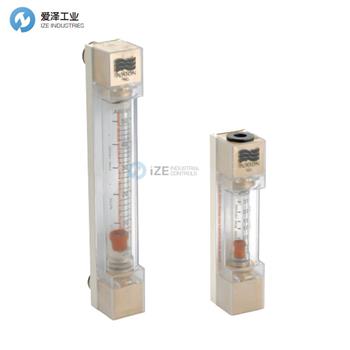

PLATON流量計RGTF系列介紹
完整的VA流量計包括一個玻璃流量管和按比例縮放至所需流量單位的浮子,以及一個框架,用于提供端塊支撐并覆蓋和保護該管道。NG系列機架使用標稱100毫米長刻度的流量管。要選擇完整的流量計,請選擇機架并單獨選擇流量管。
易于使用,可見度高
簡單可靠
氣體或液體流量測量
背板:黑色陽極氧化鋁
端塊:后綴B –黃銅,后綴S-不銹鋼
密封:丁腈在黃銅上的單位Viton在不銹鋼上的單位
流量管:硼硅酸鹽玻璃
浮子:參見所選流量管
HD:中空硬質合金,紅色陽極氧化
HS:空心不銹鋼鋼
SS:實心不銹鋼
精度高達±1.25%FSD
秤100mm
無需工具即可拆卸玻璃管
空氣或氣體校準的流量計刻度基于1,013 bar abs的標準條件。和20°C
A complete VA flowmeter consists of a glass flow tube and float scaled to the flow units required, and a frame to provide the end block supports and to cover and protect the tube. The NG series frames use flow tubes with nominal 100 mm long scales. To choose a complete flowmeter select frame and separately the flow tube.
Easy to Use, high visibility scale
Simple and reliable
Gas or Liquid flow measurement
Backplate : black anodised aluminium
End block: suffix B – Brass, suffix S- Stainless Steel
Seals: Nitrile on brass units Viton on stainless steel units
Flowtube: borosilicate glass
Float: see flow tube choosen
HD: Hollow Dural, red anodised
HS: Hollow Stainless Steel
SS: Solid Stainless Steel
Accuracy up to ±1.25% FSD
Scales 100mm
Glass tube removal without tools
Air or gas calibrated Flowmeters scales are based on standard conditions of 1,013 bar abs. and 20°C
PLATON流量計其他常見型號:
PLATON RGTF1CHD-A
PLATON RGTF1BHD-A
PLATON RGTF1AHD-A
PLATON RGTF1AHS-A
PLATON RGTF2CHD-A
PLATON RGTF2AHD-A
PLATON RGTF2AHS-A
PLATON RGTF1ASS-C
PLATON RGTF2BHS-C
PLATON RGTF2AHS-C
