PLATON流量計GUB111-GTF1BHD技術參數
Flow range : 40-600cc/min H2 (new scale) |
100mm ceramic engraved scale |
13/8’’ BSP straight connections |
Red Dural float / Nitrile O rings |
Aluminium safety housing |
Perspex window |

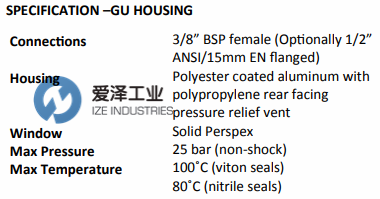

PLATON流量計配件GU系列產品參數
PLATON流量計配件GU系列產品介紹
GU型間隙計是玻璃管可變面積流量計，可直接顯示液體或氣體流量。GU外殼提供了堅固的剛性框架，適合直接安裝到工廠管道中，從而保護玻璃管免受管道壓力和設備隨機損壞。安全的有機玻璃窗口提供了良好的流動可見性，同時保護了操作員。在玻璃管損壞的情況下，外殼后部的安全泄壓盤可為過程流體提供泄壓口。
玻璃管VA流量計操作簡單可靠，響應迅速-它們向操作員提供流量可視化信息，浮子的旋轉可確認儀表性能正確。標準管和浮子熔合到玻璃管中，具有較低的管路壓力損失和高分辨率的100mm線性刻度。垂直向上流過錐形玻璃管的流體會導致浮子升至平衡位置。流量是沿著浮子頂部邊緣在流量管的刻度上測量的。
硼硅酸鹽玻璃管可根據客戶要求單獨定標，并分別進行流量校準。

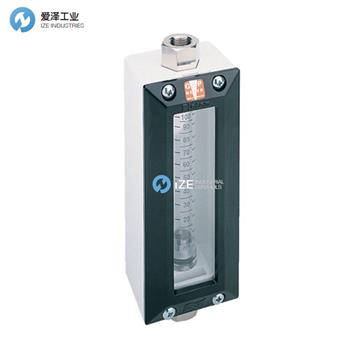

Gapmeters type GU are glass tube Variable Area Flowmeters for direct display of liquid or gas flowrate. The GU housing provides a robust rigid frame, suitable for mounting directly into plant pipework, protecting the glass tube from pipework stress and random plant damage. The safety Perspex window gives good flow visibility, while protecting the operator. A safety blowout disc on the rear of the housing provides a relief vent for process fluids, in case of glass tube damage.
Glass tube VA flowmeters are simple and reliable in operation, and instantaneous in response – they offer flow visualization to the operator, and the float rotation gives confirmation of correct meter performance. Standard tubes and floats offer low line pressure loss and a high resolution 100mm linear scale, fused into the glass tube. Fluid flow vertically upward through the tapered glass tube causes the float to rise to an equilibrium position. Flow rate is measured on the scale of the flow tube, along the top edge of the float.
The borosilicate glass tubes are individually scaled according to customers requirements, and individually flow calibrated.

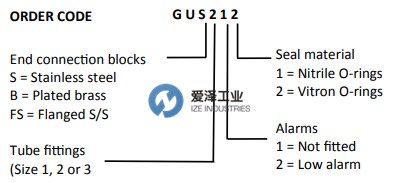

選型參考
PLATON流量計配件GU系列其他常見型號：
PLATON GUS111
PLATON GUS112
PLATON GUS121
PLATON GUS122
PLATON GUB211
PLATON GUB212
PLATON GUB221
PLATON GUB222
PLATON GUFS322
PLATON GUB111-GTF1BHD
PLATON Flowmeter NEW + ORIGINAL+ ONE YEAR WARRANTY
