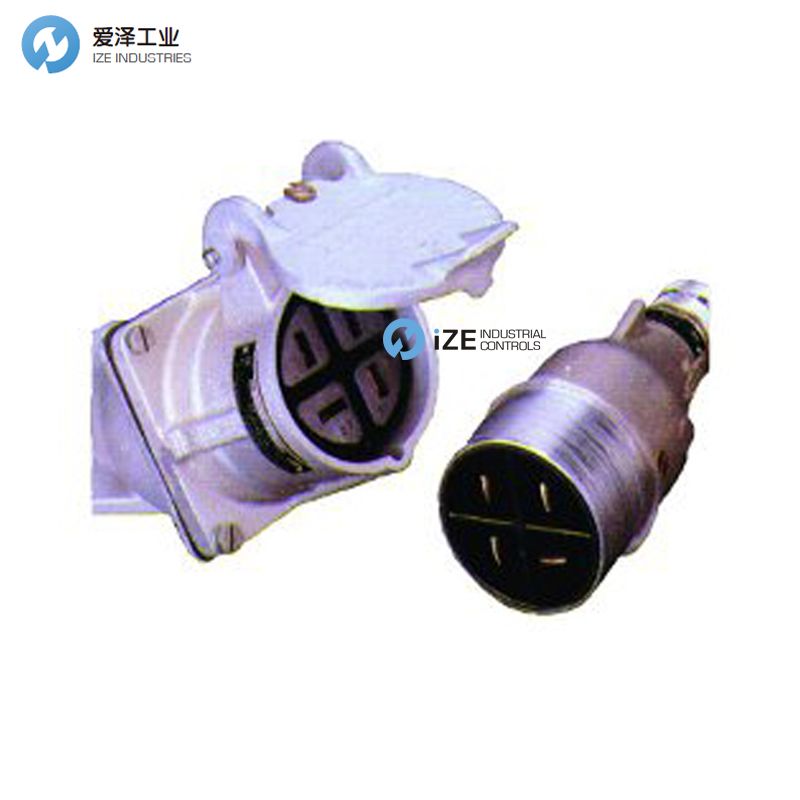

AMPHENOL連接器QUELARC系列產品簡介
Quelarc?連接器可承載電流為30、60和100A， 電壓為600VAC， 使用在便攜式和分離式電氣設備上。Quelarc插頭和插座設計成能承受最惡劣的工作環境，并已經過多年的可靠服務的驗證。Quelarc連接器提供非同尋常的長絕緣路徑，使其在潮濕或帶電灰塵的環境下保持連續運行。公端子之間的分區增加了絕緣面的長度，防止電極與電極之間以及電極到地面之間產生電弧?；旌想娐纷钄嗔穗娀∈?，確保當插頭還在插座上的時候電弧完全熄滅和冷卻。很多重要的建設都使用這個系列的插頭插座以提供安全操作。
The Quelarc? connector can carry currents of 30, 60 and 100A and 600VAC for use on portable and discrete electrical equipment. Quelarc plugs and sockets are designed to withstand the toughest working conditions and have been proven for years of reliable service. The Quelarc connector provides an unusually long insulated path that keeps it running continuously in wet or charged dust. The division between the male terminals increases the length of the insulating surface, preventing arcing between the electrodes and the electrodes and between the electrodes and the ground. The hybrid circuit blocks the arc chamber, ensuring that the arc is completely extinguished and cooled while the plug is still on the socket. Many important constructions use this series of plugs and sockets for safe operation.
AMPHENOL連接器QUELARC系列特點與優勢
·30/60/100 安培, 250V 直流電壓/600V交流電壓
·刀片式端子
·接地外殼通過額外的先插后斷式引腳
·不同的電壓有特殊的極性表示
·可提供2線到4線設計
·插頭插座有螺紋或推拉式連接設計
·采用接地端子或外殼接地設計
·接線盒有彎頭或直頭設計可選
·提供可反轉的膠芯組件
·插座可選擇翻轉式蓋子
· 30/60/100 amp, 250V DC / 600V AC
· Blade terminal
· Grounded housing through additional pre-inserted break pins
· Different voltages have special polarity representation
· Available in 2-wire to 4-wire designs
· Plug and socket with threaded or push-pull connection design
· Ground terminal or housing grounding design
· The junction box has an elbow or straight design
· Provide reversible rubber core components
· Socket can be flipped cover

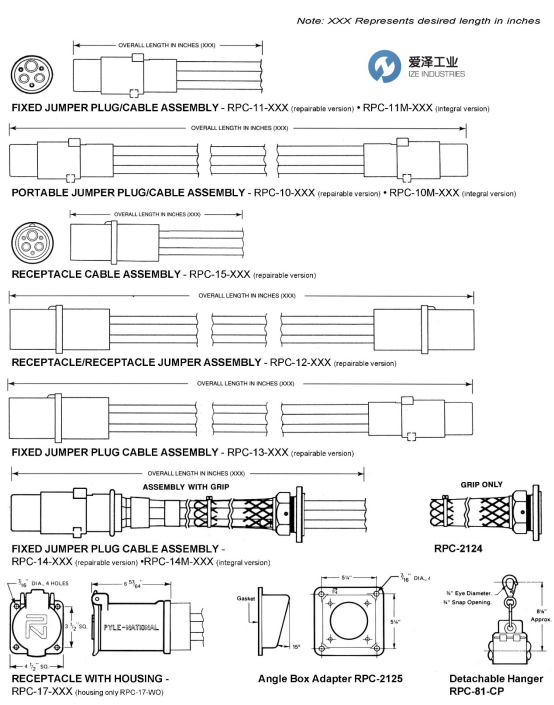

AMPHENOL連接器QUELARC系列選型參考及尺寸大小
AMPHENOL連接器QUELARC系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件AMPHENOL連接器部分型號：
AMPHENOL連接器PRC-11
AMPHENOL連接器RPC-11M
AMPHENOL連接器RPC-10
AMPHENOL連接器RPC-10N
AMPHENOL連接器RPC-15
AMPHENOL連接器RPC-12
AMPHENOL連接器RPC-13
AMPHENOL連接器RPC-14M
AMPHENOL連接器RPC-17
AMPHENOL連接器RPC-2124
AMPHENOL連接器RPC-2125
AMPHENOL連接器RPC-81-CP
