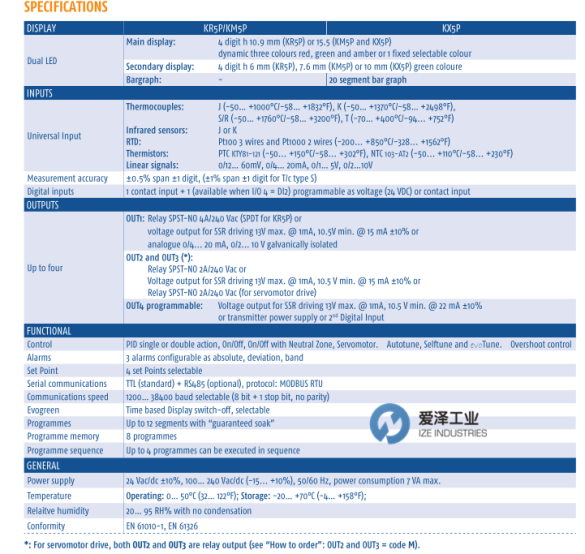

ASCON控制器KR5P,KM5P,KX5P規格描述
DIsPLAY | KR5P/KM5P | KX5P | |
Main display: | 4 digit h 10.9 mm (KR5P) or 15. dynamic three colours red, gre | 5 (KM5P and KX5P) | |
en and amber or 1 fixed selectable colour | |||
Dual LeD | secondary display: | 4 digit h 6 mm (KR5P), 7.6 mm | (KM5P) or 10 mm (KX5P) green coloure |
Bargraph: | - | 20 segment bar graph | |
INPuTs | |||
universal Input | thermocouples: J (-50… +1000°C/-58… +1832°F), K (-50… +1370°C/-58… +2498°F), s/R (-50… +1760°C/-58… +3200°F), T (-70… +400°C/-94... +752°F) | ||
infrared sensors: J or K | |||
Rtd: Pt100 3 wires and Pt1000 2 wires (-200... +850°C/-328... +1562°F) | |||
thermistors: PTC KTY81-121 (-50... +150°C/-58... +302°F), NTC 103-AT2 (-50... +110°C/-58... +230°F) linear signals: 0/12… 60mV, 0/4… 20mA, 0/1… 5V, 0/2…10V | |||
Measurement accuracy | ±0.5% span ±1 digit, (±1% span ±1 digit for T/c type s) | ||
Digital inputs | 1 contact input + 1 (available when I/O 4 = DI2) programmable as voltage (24 VDC) or contact input | ||
OuTPuTs | |||
oUt1: Relay sPsT-NO 4A/240 Vac (sPDT for KR5P) or voltage output for ssR driving 13V max. @ 1mA, 10.5V min. @ 15 mA ±10% or analogue 0/4... 20 mA, 0/2... 10 V galvanically isolated | |||
up to four | oUt2 and oUt3 (*): | ||
Relay sPsT-NO 2A/240 Vac or | |||
Voltage output for ssR driving 13V max. @ 1mA, 10.5 V min. @ 15 mA ±10% or Relay sPsT-NO 2A/240 Vac (for servomotor drive) | |||
oUt4 programmable: Voltage output for ssR driving 13V max. @ 1mA, 10.5 V min. @ 22 mA ±10% or transmitter power supply or 2nd Digital Input | |||
FuNCTIONAL | |||
Control | PID single or double action, On/Off, On/Off with Neutral zone, servomotor. Autotune, selftune and evoTune. Overshoot control | ||
Alarms | 3 alarms configurable as absolute, deviation, band | ||
set Point | 4 set Points selectable | ||
serial communications | TTL (standard) + Rs485 (optional), protocol: MODBus RTu | ||
Communications speed | 1200… 38400 baud selectable (8 bit + 1 stop bit, no parity) | ||
evogreen | Time based Display switch-off, selectable | ||
Programmes | up to 12 segments with “guaranteed soak” | ||
Programme memory | 8 programmes | ||
Programme sequence | up to 4 programmes can be executed in sequence | ||
GeNeRAL | |||
Power supply | 24 Vac/dc ±10%, 100… 240 Vac/dc (-15... +10%), 50/60 Hz, power consumption 7 VA max. | ||
Temperature | operating: 0… 50°C (32… 122°F); storage: -20… +70°C (-4… +158°F); | ||
Relaitve humidity | 20… 95 RH% with no condensation | ||
Conformity | eN 61010-1, eN 61326 | ||
ASCON控制器KX5P產品介紹
This instrument is intended for permanent installation, for indoor use only, in an electrical panel which encloses therear housing, exposed terminals and wiring on the back. Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
The instrument can be mounted on panel with a maximumthickness of 15 mm.
When the maximum front protection (IP65) is desired, theoptional gasket must be monted.
本儀器僅用于室內使用，用于封閉外殼，外露端子和背面接線的電氣面板。選擇具有以下特征的安裝位置：
1.它應該易于訪問;
2.振動最小，無沖擊;
3.沒有腐蝕性氣體;
4.沒有水或其他液體（即冷凝）;
5.環境溫度與工作溫度（0 ... 50°C）一致;
6.相對濕度與儀器一致
規格（20 ... 85％）;
儀器可以安裝在面板上，最大厚度為15 mm。
當需要最大前保護（IP65）時，必須對可選墊圈進行檢修。
ASCON控制器KX5P介紹及選型

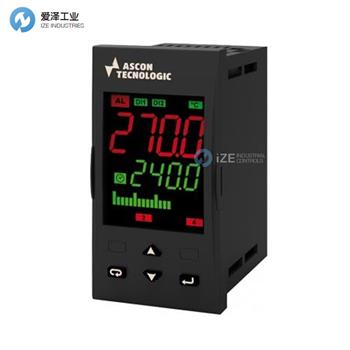

ASCON控制器KX5P
愛澤工業(IZE INDUSTRIES)特價經銷、常用ASCON控制器型號：
ASCON KX5P
ASCON KR5P
ASCON KM5P

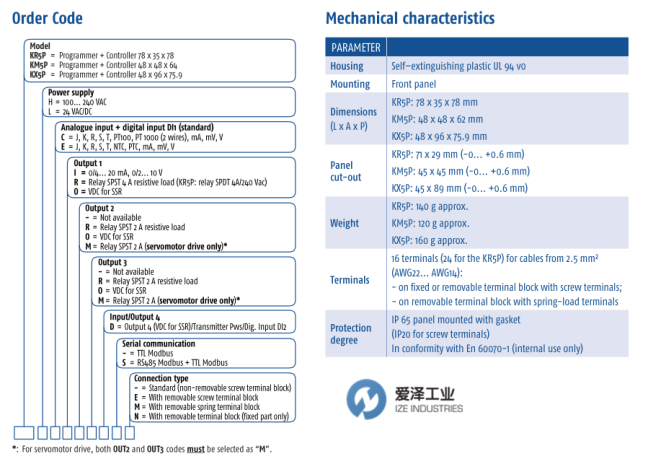

ASCON KX5PHCIMODSE
ASCON KX5PLERRMDSN
ASCON KX5PHEIRODSM
ASCON KX5PLCRMMDSE
ASCON KX5PHCOORDSN
ASCON Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCON控制器KX5系列的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ASCON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
