ELERO 線性執行器VARIO 2產品參數

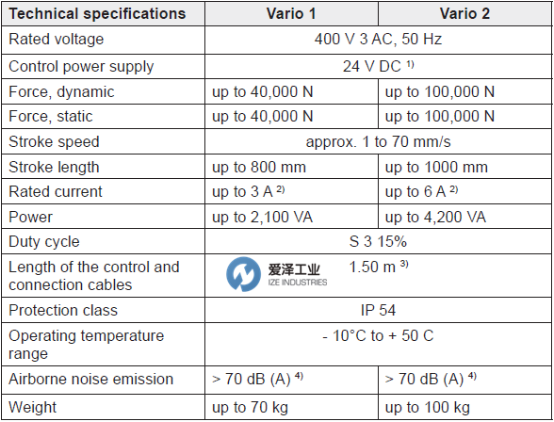

Technical specifications | ||
Rated voltage | 400 V 3 AC, 50 Hz | |
Control power supply | 24 V DC 1) | |
Force, dynamic | up to 100,000 N | |
Force, static | up to 100,000 N | |
Stroke speed | approx. 1 to 70 mm/s | |
Stroke length | up to 1000 mm | |
Rated current | up to 6 A 2) | |
Power | up to 4,200 VA | |
Duty cycle | S 3 15% | |
Length of the control and connection cables | 1.50 m 3) | |
Protection class | IP 54 | |
Operating temperature range | - 10°C to + 50 C | |
Airborne noise emission | > 70 dB (A) 4) | |
Weight | up to 100 kg | |
Features | ||
Applications | Industrial use | |
Stroke length (mm) | 200 - 1,000 | |
Load (N) | 20,000 - 100,000 | |
Stroke speed (mm/s) | 1 - 70 | |
ELERO線性執行器VARIO 2產品介紹
Vario 2是一款堅固的線性執行器，適用于機械和設備工程中的重載應用。這不僅包括特殊的機器結構，材料處理技術和造船，還包括通信工程。因此，Vario 1結合了高性能和低空間要求。這使他成為現代工程中不可或缺的一員。
修復元素：
鉸接式凸耳固定
U形夾端DIN71752
旋轉孔DIN 648
螺栓螺栓
樞軸附件
螺紋孔
選項：
制動
行程相關張力信號的模擬輸出（0 ... 10V）
編碼器
滾珠絲杠
RAL彩色涂層
應用：
特殊機器結構
材料處理技術
架空接觸網施工
造船
通信工程

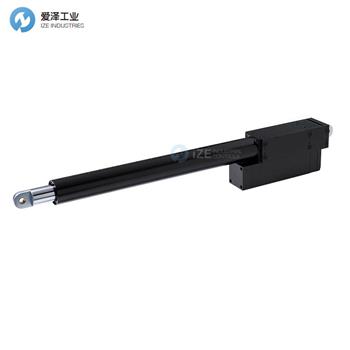

The Vario 2 is a robust linear actuator for heavy duty applications in mechanical and plant engineering. This includes not only special machine contruction, materials handling technology and shipbuilding, but also communications engineering. Therefore the Vario 1 combines a high performance with low space requirement. This makes him indispensable in modern engineering.
Fixing elements:
Articulated lug fixed
Clevis end DIN 71752
Swivel eye DIN 648
Threaded bolt
Pivot attachment
Threaded holes
Options:
Brake
Analogue output for a stroke-dependent tension signal (0...10V)
Encoder
Ballscrew
RAL colour coating
Applications:
Special machine construction
Materials handling technology
Overhead catenary construction
Shipbuilding
Communications engineering
