ELERO 線性執行器JUNIOR 2產品參數

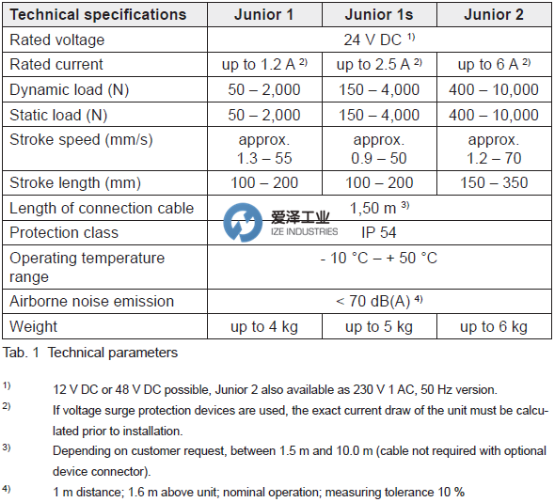

Technical specifications | |
Rated voltage | 24 V DC 1) |
Rated current | up to 6 A 2) |
Dynamic load (N) | 400 - 10,000 |
Static load (N) | 400 - 10,000 |
Stroke speed (mm/s) | approx. 1.2 – 70 |
Stroke length (mm) | 150 – 350 |
Length of connection cable | 1,50 m 3) |
Protection class | IP 54 |
Operating temperature range | - 10 °C – + 50 °C |
Airborne noise emission | < 70 dB(A) 4) |
Weight | up to 6 kg |

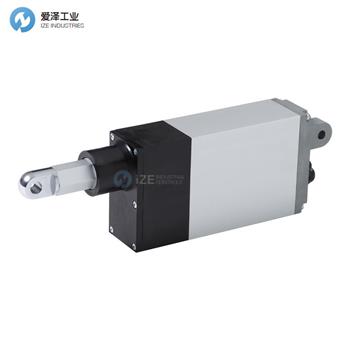

ELERO線性執行器JUNIOR 2產品介紹
JUNIOR系列的線性執行器是一種多用途的推桿執行器，主要用于工業應用。這包括柴油機、計量裝置、轉轍機、印刷機等的氣體調節應用。
因此，Junior 2還提供了緊湊的設計，結合了高性能以及230V AC驅動器的變型。
固定元件：
固定鉸鏈式吊耳
可調鉸鏈吊耳
可旋轉鉸鏈式吊耳
鉸鏈式凸耳在壓力方向上的作用
U形夾端DIN71752
接頭桿頭DIN 648
螺栓
選項：
輸出行程相關電阻值的電位計
編碼器
230V AC驅動
工作電壓12V dc或48V dc
制動器（不與電位計或編碼結合使用）
配件：
軸承支架
應用：
柴油機燃氣調節
計量設備
點切換
傾斜固定裝置
百葉窗的操作
閥門和滑塊操作
印刷機
The linear actuators of the Junior series are versatile push-rod actuators used mainly for industrial applications. This includes applications in gas adjustments of diesel engines, metering units, points switchings, printing machines and many more.
Hence the Junior 2 also offers a compact design combined with high performance as well as a variant with a 230V AC drive.
Fixing elements:
Articulated lug fixed
Articulated lug adjustable
Articulated lug rotatable
Articulated lug sring-action in pressure direction
Clevis end DIN 71752
Joint rod head DIN 648
Threaded bolt
Options:
Potentiometer for output of a stroke-dependent resistance value
Encoder
230V AC drive
Operating voltage 12V DC or 48V DC
Brake (not in combination with potentiometer or encode)
Accessories:
Bearing brackets
Applications:
Diesel engine gas adjustment
Metering equipment
Points switching
Tilting fixtures
Operation of shutters
Valve and slider operation
Printing machines
ELERO 線性執行器JUNIOR系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ELERO 線性執行器部分型號：
ELERO JUNIOR 1
ELERO JUNIOR 2
ELERO JUNIOR 1s
ELERO Linear actuators NEW + ORIGINAL+ ONE YEAR WARRANTY
