ELERO線性執行器ECONOM 0產品參數
Features | |
Applications | Industrial use, Facade construction |
Stroke length (mm) | 50 - 400 |
Load (N) | 100 - 3,000 |
Stroke speed (mm/s) | 0.6 - 70 |
Calculation example Econom 0 for dimension A (based on the following requirements) | |
Pushing and pulling force | 1400 N |
Profilo | tenuta_semplice_effetto_energizzata_da_o-ring_stelo |
Stroke | 230 mm |
Operating voltage | 230 V 1 AC, rating: S3-15% |
Fixing on piston end | fixed articulated lug |
Fixing on housing end | standard articulated lug |
Capacitor | external (standard wiring diagram WS 0500) |
Option | potentiometer |
Selected version: | |

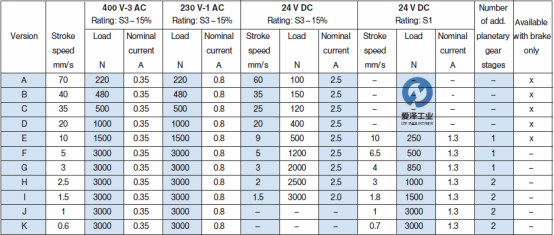

Force version E | 1500 N |
Dimension G fixed articulated lug | 32 mm |
Dimension F ver. E, stroke 50-300 mm, 230 V | 356 mm (Please observe the additional marks *, **, 1) |
Inst. stroke** installed stroke length | 250 mm |
Dimension L option, potentiometer | 75 mm |
Dimension E standard articulated lug | 19 mm |
Dimension A min. | 732 mm |
ELERO線性執行器ECONOM 0產品介紹
Econom 0是ELERO公司生產的多功能線性執行機構。它配有一個涂底漆的鋼或不銹鋼外殼，并且有多種型號。因此，Econom 0不僅用于建筑立面，還用于建筑和機械工程應用。為了使Econom 0能夠在美國和加拿大使用，Elero提供了具有UL認證的特殊Econom 0。
固定元件：
固定鉸鏈?zhǔn)降醵?/p>
U形夾端DIN71752
接頭桿頭DIN 648
鉸接耳彈簧作用
可調鉸鏈吊耳
螺栓
數據透視附件
法蘭連接
選項：
輸出行程相關電阻值的電位計
編碼器
內部電容器
制動器（電源電壓：24V dc、230V 1ac、400V 1ac）
保護套
UL認證，不銹鋼Econom 0
RAL彩色涂層
配件：
軸承支架
故障安全監視器

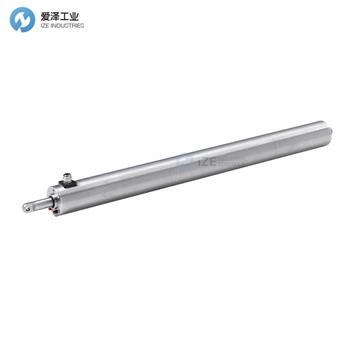

The Econom 0 is a versatile linear actuator from elero.It is available with a primed steel or stainless steel housing and in a wide range of variants. Therefore the Econom 0 is not only used in facade architecture but also for contruction and mechanical engineering applications. To enable the use of the Econom 0 in the USA and Canada, elero offers a special Econom 0 with UL- certification.
Fixing elements:
Articulated lug fixed
Clevis end DIN 71752
Joint rod head DIN 648
Articulated lug spring-action
Articulated lug adjustable
Threaded bolt
Pivot attachment
Flange attachment
Options:
Potentiometer for output of a stroke-dependent resistance value
Encoder
Internal capacitor
Brake (supply voltages 24V DC, 230V 1AC, 400V 1AC)
Protective sleeve
UL certified, stainless steel Econom 0
RAL colour coating
Accessories:
Bearing brackets
Fail-safe monitor
ELERO 線性執行器ECONOM 0
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ELERO 線性執行器部分型號：
ELERO ECONOM 0
ELERO ECONOM 1
ELERO ECONOM 01
ELERO ECONOM 2
ELERO Linear actuators NEW + ORIGINAL+ ONE YEAR WARRANTY
