FOXBORO PH傳感器PH10系列規格描述
Process Wetted Parts Materials | |
Body | Non-conductive Kynar, black, FDA compliant,mineral filled |
Chemical Compatibility | Kynar, known as polyvinylidene fluoride or PVDF, is chemically resistant to virtually all acids, bases, and salts within the 0 to 14 pH range. It is also resistant to halogens, halogenated solvents, alcohols, and oxidants. |
Measuring Electrode | pH Measurement: Glass or Antimony |
Reference Electrode | Ceramic junction |
Solution Ground | Conductive Kynar (nonmetallic) |
Seals | Viton is standard; EPDM (also known as EPR) and Chemraz are optionally available. |
Sensor Mounting | The upper housing of the sensor has 3/4 NPT external threads on both ends for use with widely accepted mounting accessories. The housing body also has wrench flats to facilitate sensor installation and removal. The sensor, with the appropriate accessories, is suitable for both in situ (submersible) and in-line installations. As indicated previously, the sensor can be mounted up to 90° from the vertical position, with the electrode end downward. shows typical sensor mounting configurations, and the “ACCESSORIES” section describes and specifies each accessory and its application. |
Cable Bend Radius | 2 inch minimum recommended for cable part number P0170UU |

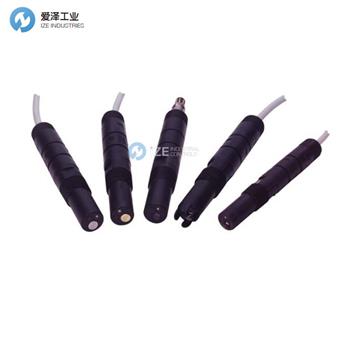

FOXBORO PH傳感器PH10系列描述
Foxboro品牌DolpHin系列是一系列精密電化學傳感器,與廣泛接受的一系列安裝附件配合使用,可測量pH和ORP。堅固耐用,易于使用,特別適用于高溫安裝。無論海豚系列的模擬和智能版本可供選擇。
特點與優勢
精密參考連接
高溫電解質
具有Nafion離子屏障的參比電極
超快自動溫度補償(ATC)
單一,堅固的機身,適合各種安裝配件
FOXBORO PH傳感器PH10系列型號說明
愛澤工業(IZEINDUSTRIES)特價經銷、常用FOXBORO型號:
FOXBORO PH10-1S2S-FN
FOXBORO PH10-1P1Q-AA
FOXBORO PH10-3N2A
FOXBORO PH10-1N3Q
FOXBORO PH10-1N2Q
FOXBORO PH10-3N3Q
FOXBORO PH10-3N1A-2
FOXBORO PH10-1N1A-E3
FOXBORO PH10-1P1A-C
FOXBORO PH10-4N1A-1H
FOXBORO PH10-2N2A-E3
FOXBORO PH sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體,代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO PH傳感器PH10系列的疑問,請隨時致電我們,愛澤工業(86-021-31006702)。我們將盡全力解決您的問題。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: jjxdch.cn.

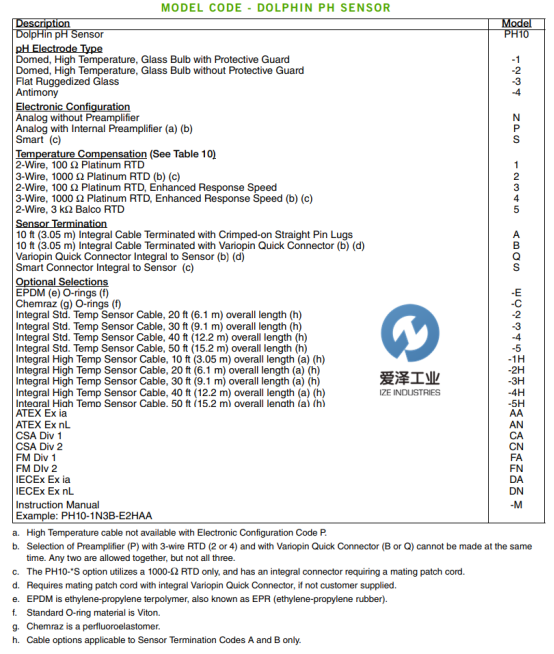

FOXBORO PH傳感器PH10系列型號解析及技術數據
