LINEMASTER腳踏開關575-DWHA規格描述
575-DWHA | |
Switch Type | Electrical |
Actions | 1st Stage Maintained, 2nd and 3rd Stages Momentary |
Circuitries | SPDT (Form "C") |
Cable Entries | 3/4"-14 NPT threaded entry |
Housing Colors | Orange |
Housing Materials | Cast Iron |
Shields & Guards | Full shield |
Switch Connections | Screw terminal |
Electrical Ratings | 1 HP 125-250 VAC, 20A, 125-250 VAC |
LINEMASTER腳踏開關575-DWHA優勢及選型
FEATURES & BENEFITS
Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated
All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw
In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the Full Shield so falling objects cannot easily release it
3 holes provided for rigid mounting to the floor or equipment
特點與優勢
堅固的鑄造金屬外殼具有足夠的重量，以防止開關在操作時滑動
所有型號都有氯丁橡膠蓋墊片和活動軸上的O形圈以及單獨的接地螺釘
在所有維護觸點型號中，只需按下閂鎖，輕輕向前移動腳趾即可完成釋放。釋放位于Full Shield下，因此墜落的物體無法輕易釋放
3個孔用于剛性安裝到地板或設備上

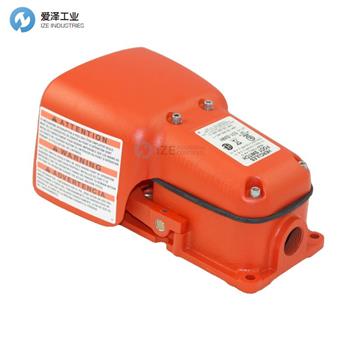

LINEMASTER腳踏開關575-DWHA
愛澤工業(IZE INDUSTRIES)特價經銷、常用LINEMASTER腳踏開關型號：
LINEMASTER 531-SWH
LINEMASTER 531-SWHO
LINEMASTER 531-SWHOX
LINEMASTER 531-SWN
LINEMASTER 571-DWH
LINEMASTER 571-DWHO
LINEMASTER 571-DWHOX
LINEMASTER 571-DWN
LINEMASTER 532-SWH
LINEMASTER 532-SWHO
LINEMASTER 532-SWHOX
LINEMASTER 532-SWN
LINEMASTER 572-DWH
LINEMASTER 572-DWHO
LINEMASTER 572-DWHOX
LINEMASTER 572-DWN
LINEMASTER 533-SWH
LINEMASTER 533-SWHO
LINEMASTER 533-SWHOX
LINEMASTER 533-SWN
LINEMASTER 573-DWH
LINEMASTER 573-DWHO
LINEMASTER 573-DWHOX
LINEMASTER 573-DWN
LINEMASTER 534-SWH
LINEMASTER 534-SWHO
LINEMASTER 534-SWHOX
LINEMASTER 534-SWN
LINEMASTER 574-DWH
LINEMASTER 574-DWHO
LINEMASTER 574-DWHOX
LINEMASTER 574-DWN
LINEMASTER 574-DWHA1
LINEMASTER 574-DWHOA1
LINEMASTER 574-DWHOXA1
LINEMASTER 574-DWNA1
LINEMASTER 574-DWHD2
LINEMASTER 574-DWHOD2
LINEMASTER 574-DWHOXD2
LINEMASTER 574-DWND2
LINEMASTER 535-SWH
LINEMASTER 535-SWHO
LINEMASTER 535-SWHOX
LINEMASTER 535-SWN
LINEMASTER 575-DWH
LINEMASTER 575-DWHO
LINEMASTER 575-DWHOX
LINEMASTER 575-DWN
LINEMASTER 575-DWHA3
LINEMASTER 575-DWHOA3
LINEMASTER 575-DWHOXA1
LINEMASTER 575-DWNA2
LINEMASTER 536-SWH
LINEMASTER 536-SWHO
LINEMASTER 536-SWHOX
LINEMASTER 536-SWN
LINEMASTER 576-DWH
LINEMASTER 576-DWHO
LINEMASTER 576-DWHOX
LINEMASTER 576-DWN
LINEMASTER 537-SWH
LINEMASTER 537-SWHO
LINEMASTER 537-SWHOX
LINEMASTER 537-SWN
LINEMASTER 577-DWH
LINEMASTER 577-DWHO
LINEMASTER 577-DWHOX
LINEMASTER 577-DWN
LINEMASTER 538-SWH
LINEMASTER 538-SWHO
LINEMASTER 538-SWHOX
LINEMASTER 538-SWN
LINEMASTER 578-DWH
LINEMASTER 578-DWHO
LINEMASTER 578-DWHOX
LINEMASTER 578-DWN
LINEMASTER 578-DWHA1
LINEMASTER 578-DWHOA1
LINEMASTER 578-DWHOXA1
LINEMASTER 578-DWNA1
LINEMASTER 578-DWHD2
LINEMASTER 578-DWHOD2
LINEMASTER 578-DWHOXD2
LINEMASTER 578-DWND2
LINEMASTER Foot switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LINEMASTER腳踏開關575-DWHA的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for LINEMASTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
LINEMASTER腳踏開關575-DWHA選型及介紹
