SELET傳感器B01系列規格描述

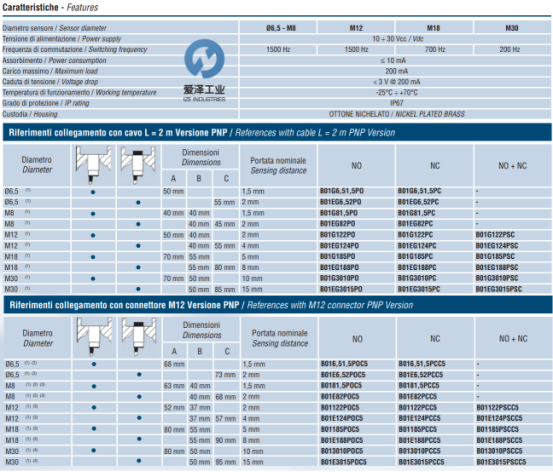

Caratteristiche - Features | ||||
Diametro sensore / Sensor diameter | ?6,5 - M8 | M12 | M18 | M30 |
Tensione di alimentazione/Power supply | 10 ÷ 30 Vcc / Vdc | |||
Frequenza di commutazione/ Switching frequency | 1500 Hz | 1500 Hz | 700 Hz | 200 Hz |
Assorbimento / Power consumption | ￡ 10 mA | |||
Carico massimo /Maximum load | 200 mA | |||
Caduta di tensione /Voltage drop | < 3 V @ 200 mA | |||
Temperatura di funzionamento/ Working temperature | -25°C ÷ +70°C | |||
Grado di protezione / IP rating | IP67 | |||
Custodia / Housing | OTTONE NICHELATO / NICKEL PLATED BRASS | |||

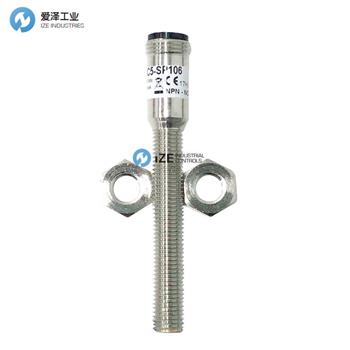

SELET傳感器B01系列描述
6.5-8-12-18-直徑30 mm
金屬外殼
電纜或M8/M12-連接器輸出和電動閥類型
PNP-NPN-3線制NO-NC和4線制NO + NC版本
SELET傳感器B01系列技術規格
愛澤工業(IZE_INDUSTRIES)特價經銷、常用SELET型號：
SELET B01122PSCC5
SELET B01E124PSCC5
SELET B01185PSCC5
SELET B01E188PSCC5
SELET B013010PSCC5
SELET B01E3015PSCC5
SELET B01G6,51,5PO
SELET B01EG6,52PO
SELET B01G81,5PO
SELET B01EG82PO
SELET B01G122PO
SELET B01EG124PO
SELET B01G185PO
SELET B01EG188PO
SELET B01G3010PO
SELET B01EG3015PO
SELET B016,51,5POC5
SELET B01E6,52POC5
SELET B0181,5POC5
SELET B01E82POC5
SELET B01122POC5
SELET B01E124POC5
SELET B01185POC5
SELET B01E188POC5
SELET B013010POC5
SELET B01E3015POC5
SELET B016,51,5PCC5
SELET B01E6,52PCC5
SELET B0181,5PCC5
SELET B01E82PCC5
SELET B01122PCC5
SELET B01E124PCC5
SELET B01185PCC5
SELET B01E188PCC5
SELET B013010PCC5
SELET B01E3015PCC
SELET sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于SELET傳感器B01系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SELET products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
SELET傳感器B01系列 B0181POC5技術規格及描述
