SETRA壓力傳感器264系列簡介
Setra's 264已在全球范圍內安裝了數百萬個，是HVAC樓宇自動化，高精度制藥和醫療保健設施中低壓差測量的“標準”。264極低壓差傳感器采用緊密封閉的不銹鋼焊接電容式傳感元件，只需極小的放大率，在關鍵設備中提供出色的精度和長期穩定性。264具有3年無條件保修，使最終用戶可以放心地超出初始調試階段，并在BAS保修期后保證性能良好。264采用堅固的設計，提供黃銅倒鉤配件，Snap Track Mount和可選的導管蓋，可輕松一致地安裝。
行業“標準”壓力傳感器-二十多年來，264一直是一致且值得信賴的HVAC傳感器。憑借出色的交付時間，可靠性和質量的聲譽使264仍然是任何低壓差應用的可靠選擇。
方便的安裝-264的底座可以將傳感器安裝在任何地方。
Setra傳感器264的核心技術是全不銹鋼電容式傳感元件。Setra設計和制造所有傳感元件，從而完全控制每個傳感器的工藝和質量。焊接的無端電容式傳感器需要最小的放大率，并提供出色的精度和長期穩定性。Setra的技術已在超過800萬次安裝中使用，并且具有業內最高的現場接受率。
With millions of sensors installed world wide, Setra’s 264 is the “standard” for low differential pressure measurement in HVAC building automation, high accuracy pharmaceutical and healthcare facilities. The 264 very low differential pressure transducer uses a dead-ended stainless steel welded capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability in critical installations. The 264 has a 3 year, unconditional warranty, giving the end-user peace of mind well beyond the initial commissioning phase and guarantees performance well after the BAS warranty. The 264 utilizes a robust design that offers brass barbed fittings, a Snap Track Mount and an optional conduit cover for easy and consistent installation.
The Industry "Standard" Pressure Transducer - The 264 has been a consistent and trusted HVAC sensor for over two decades. The reputation of reliability and quality with exceptional delivery time has helped the 264 remain the trusted choice for any low differential pressure application.
Convenient Installation - The 264's base mount allows the sensor to be installed anywhere.
The Setra Sensor - The core technology of the 264 is the all stainless steel capacitive sensing element. Setra designs and manufactures all of their sensing elements resulting in full control over the process and quality of every single sensor. The welded dead-ended capacitive sensors requires minimal amplification and delivers excellent accuracy and longterm stability. Setra’s technology has been used in over 8 million installations and has the highest field acceptance rate in the industry.

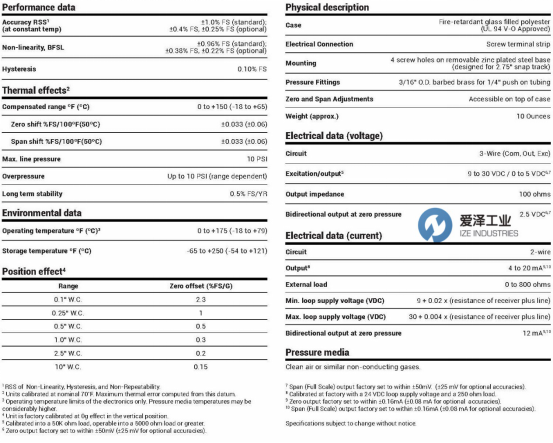

SETRA壓力傳感器264系列技術資料

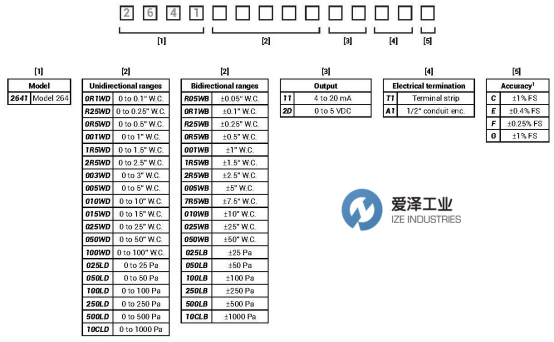

SETRA壓力傳感器264系列選型參考

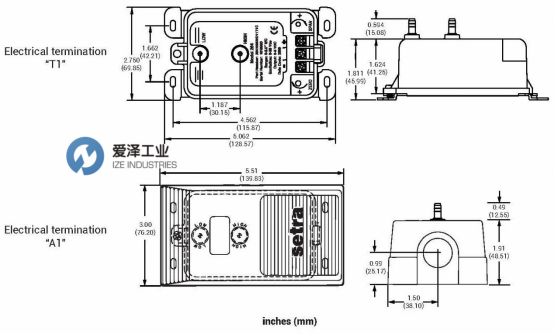

SETRA壓力傳感器264系列尺寸

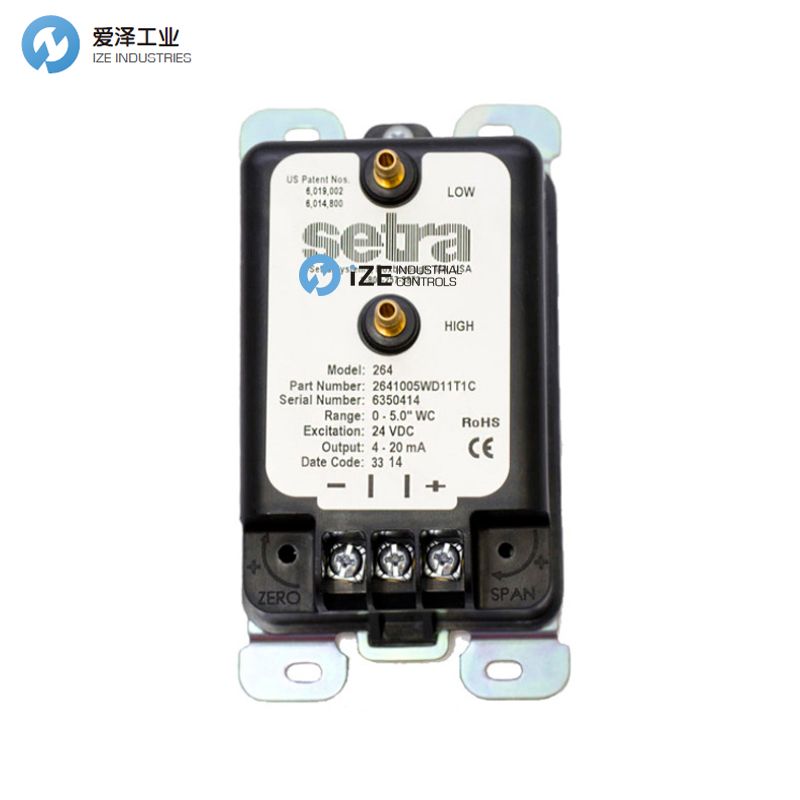

SETRA壓力傳感器264系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SETRA壓力傳感器部分型號：
SETRA壓力傳感器26410R1WD11T1C
SETRA壓力傳感器26410R1WD11T1E
SETRA壓力傳感器26410R1WD11T1F
SETRA壓力傳感器26410R1WD11T1G
SETRA壓力傳感器26410R1WD11A1C
SETRA壓力傳感器26410R1WD11A1E
SETRA壓力傳感器26410R1WD11A1F
SETRA壓力傳感器26410R1WD11A1G
SETRA壓力傳感器26410R1WD2DT1C
SETRA壓力傳感器26410R1WD2DT1E
SETRA壓力傳感器26410R1WD2DT1F
SETRA壓力傳感器26410R1WD2DT1G
SETRA壓力傳感器26410R1WD2DA1C
SETRA壓力傳感器26410R1WD2DA1E
SETRA壓力傳感器26410R1WD2DA1F
SETRA壓力傳感器26410R1WD2DA1G
SETRA壓力傳感器2641R25WD11T1C
SETRA壓力傳感器2641R25WD11T1E
SETRA壓力傳感器2641R25WD11T1F
SETRA壓力傳感器2641R25WD11T1G
SETRA壓力傳感器2641R25WD11A1C
SETRA壓力傳感器2641R25WD11A1E
SETRA壓力傳感器2641R25WD11A1F
SETRA壓力傳感器2641R25WD11A1G
SETRA壓力傳感器2641R25WD2DT1C
SETRA壓力傳感器2641R25WD2DT1E
SETRA壓力傳感器2641R25WD2DT1F
SETRA壓力傳感器2641R25WD2DT1G
SETRA壓力傳感器2641R25WD2DA1C
SETRA壓力傳感器2641R25WD2DA1E
SETRA壓力傳感器2641R25WD2DA1F
SETRA壓力傳感器2641R25WD2DA1G
SETRA壓力傳感器26410R5WD11T1C
SETRA壓力傳感器26410R5WD11T1E
SETRA壓力傳感器26410R5WD11T1F
SETRA壓力傳感器26410R5WD11T1G
SETRA壓力傳感器26410R5WD11A1C
SETRA壓力傳感器26410R5WD11A1E
SETRA壓力傳感器26410R5WD11A1F
SETRA壓力傳感器26410R5WD11A1G
SETRA壓力傳感器26410R5WD2DT1C
SETRA壓力傳感器26410R5WD2DT1E
SETRA壓力傳感器26410R5WD2DT1F
SETRA壓力傳感器26410R5WD2DT1G
SETRA壓力傳感器26410R5WD2DA1C
SETRA壓力傳感器26410R5WD2DA1E
SETRA壓力傳感器26410R5WD2DA1F
SETRA壓力傳感器26410R5WD2DA1G
SETRA壓力傳感器2641001WD11T1C
SETRA壓力傳感器2641001WD11T1E
SETRA壓力傳感器2641001WD11T1F
SETRA壓力傳感器2641001WD11T1G
SETRA壓力傳感器2641001WD11A1C
SETRA壓力傳感器2641001WD11A1E
SETRA壓力傳感器2641001WD11A1F
SETRA壓力傳感器2641001WD11A1G
SETRA壓力傳感器2641001WD2DT1C
SETRA壓力傳感器2641001WD2DT1E
SETRA壓力傳感器2641001WD2DT1F
SETRA壓力傳感器2641001WD2DT1G
SETRA壓力傳感器2641001WD2DA1C
SETRA壓力傳感器2641001WD2DA1E
SETRA壓力傳感器2641001WD2DA1F
SETRA壓力傳感器2641001WD2DA1G
SETRA壓力傳感器26411R5WD11T1C
SETRA壓力傳感器26411R5WD11T1E
SETRA壓力傳感器26411R5WD11T1F
SETRA壓力傳感器26411R5WD11T1G
SETRA壓力傳感器26411R5WD11A1C
SETRA壓力傳感器26411R5WD11A1E
SETRA壓力傳感器26411R5WD11A1F
SETRA壓力傳感器26411R5WD11A1G
SETRA壓力傳感器26411R5WD2DT1C
SETRA壓力傳感器26411R5WD2DT1E
SETRA壓力傳感器26411R5WD2DT1F
SETRA壓力傳感器26411R5WD2DT1G
SETRA壓力傳感器26411R5WD2DA1C
SETRA壓力傳感器26411R5WD2DA1E
SETRA壓力傳感器26411R5WD2DA1F
SETRA壓力傳感器26411R5WD2DA1G
SETRA壓力傳感器26412R5WD11T1C
SETRA壓力傳感器26412R5WD11T1E
SETRA壓力傳感器26412R5WD11T1F
SETRA壓力傳感器26412R5WD11T1G
SETRA壓力傳感器26412R5WD11A1C
SETRA壓力傳感器26412R5WD11A1E
SETRA壓力傳感器26412R5WD11A1F
SETRA壓力傳感器26412R5WD11A1G
SETRA壓力傳感器26412R5WD2DT1C
SETRA壓力傳感器26412R5WD2DT1E
SETRA壓力傳感器26412R5WD2DT1F
SETRA壓力傳感器26412R5WD2DT1G
SETRA壓力傳感器26412R5WD2DA1C
SETRA壓力傳感器26412R5WD2DA1E
SETRA壓力傳感器26412R5WD2DA1F
SETRA壓力傳感器26412R5WD2DA1G
SETRA壓力傳感器2641003WD11T1C
SETRA壓力傳感器2641003WD11T1E
SETRA壓力傳感器2641003WD11T1F
SETRA壓力傳感器2641003WD11T1G
SETRA壓力傳感器2641003WD11A1C
SETRA壓力傳感器2641003WD11A1E
SETRA壓力傳感器2641003WD11A1F
SETRA壓力傳感器2641003WD11A1G
SETRA壓力傳感器2641003WD2DT1C
SETRA壓力傳感器2641003WD2DT1E
SETRA壓力傳感器2641003WD2DT1F
SETRA壓力傳感器2641003WD2DT1G
SETRA壓力傳感器2641003WD2DA1C
SETRA壓力傳感器2641003WD2DA1E
SETRA壓力傳感器2641003WD2DA1F
SETRA壓力傳感器2641003WD2DA1G
SETRA壓力傳感器26412R5WB11T1C
SETRA壓力傳感器26412R5WB11T1E
SETRA壓力傳感器26412R5WB11T1F
SETRA壓力傳感器26412R5WB11T1G
SETRA壓力傳感器26412R5WB11A1C
SETRA壓力傳感器26412R5WB11A1E
SETRA壓力傳感器26412R5WB11A1F
SETRA壓力傳感器26412R5WB11A1G
SETRA壓力傳感器26412R5WB2DT1C
SETRA壓力傳感器26412R5WB2DT1E
SETRA壓力傳感器26412R5WB2DT1F
SETRA壓力傳感器26412R5WB2DT1G
SETRA壓力傳感器26412R5WB2DA1C
SETRA壓力傳感器26412R5WB2DA1E
SETRA壓力傳感器26412R5WB2DA1F
SETRA壓力傳感器26412R5WB2DA1G
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA壓力傳感器264系列 示例264110CLD11T1F的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關SETRA壓力傳感器264系列 示例264110CLD11T1F更詳細的信息或者購買SETRA相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
SETRA壓力傳感器264系列技術資料及選型參考
