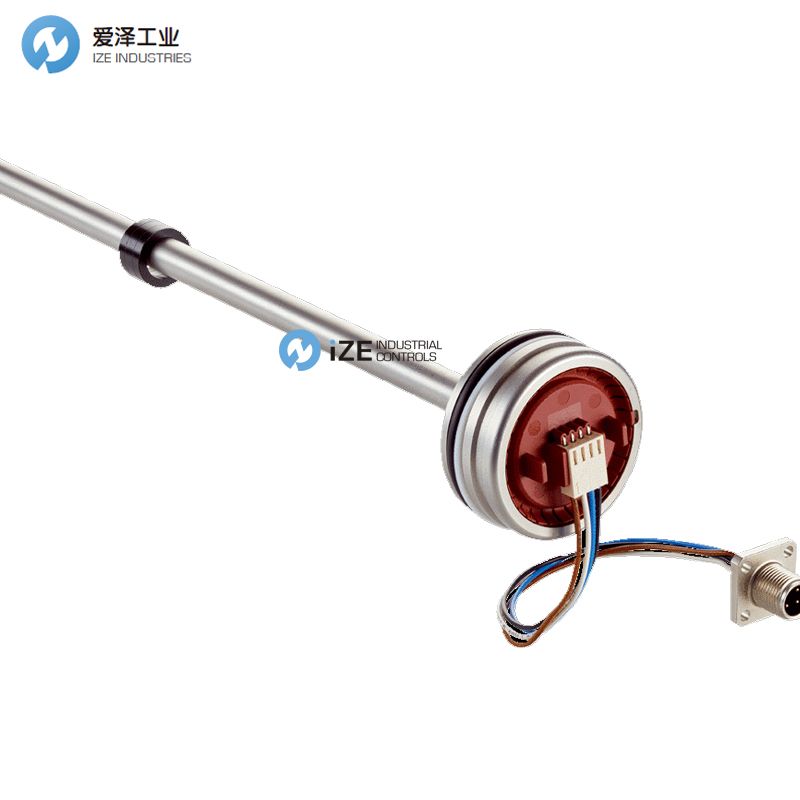

SICK磁致伸縮位移傳感器MAX48系列簡介
MAX48線性編碼器可在液壓缸中實現非接觸式,完全集成和絕對位置測量。適用于極端環境和操作條件下的移動機器應用。磁致伸縮的創新技術提供高可靠性,擴展的診斷功能以及顯著降低的運營成本。48 mm外殼可以很容易地安裝在現有的氣缸結構中。總而言之,SICK的直線光柵尺具有極具吸引力的成本效益比。
The MAX48 linear encoder enables non-contact, completely integrated and absolute position measurement in hydraulic cylinders. Suitable for use under extreme ambient and operating conditions in applications in mobile machines. The innovative technology of magnetostriction offers high reliability, expanded diagnostic functions and well as a considerable reduction in operating costs. The 48 mm housing can be easily installed in the existing cylinder construction. All in all, linear encoders from SICK impress with their attractive cost-benefit ratio.
SICK磁致伸縮位移傳感器MAX48系列特點
測量范圍:50至2500 mm(1 mm臺階),典型分辨率0.1 mm
提供模擬、CANopen、SAE J1939和PWM接口
耐壓外殼,設計用于400巴以下的液壓操作壓力
高達+105°C的工作溫度(電子設備)
最高+95°C的流體溫度(液壓油)
緊湊尺寸:10 mm安裝空間,30 mm阻尼區
定位磁鐵不需要墊片
Measuring range: 50 to 2,500 mm (1 mm steps), typical resolution 0.1 mm
Analog, CANopen, SAE J1939 and PWM interfaces are available
Pressure-resistant housing, designed for hydraulic operating pressure of up to 400 bar
High operating temperature (electronics) up to +105 °C
Fluid temperature (hydraulic oil) up to max. +95 °C
Compact dimensions: 10 mm installation space, 30 mm damping zone
Position magnet does not need a spacer disk
SICK磁致伸縮位移傳感器MAX48系列應用于
轉向油缸和彈簧系統
在垃圾車上提升和按壓氣缸
伸縮手柄上的行程、旋轉和傾斜氣缸
在工作平臺上支撐氣缸
切割系統調整,轉向輔助
裝載起重機監控,動臂油缸
集裝箱起重機夾持器監測領域
Steering cylinder and spring systems
Lifting and press cylinders on garbage trucks
Stroke, swivel and tilt cylinders on telescopic handlers
Support cylinders on work platforms
Cutting system adjustment, steering assistance
Loading crane monitoring, boom cylinders
Gripper monitoring field on container cranes
SICK磁致伸縮位移傳感器MAX48系列技術參數
測量范圍:50毫米...... 2,500毫米
解析度:0,1毫米(rauschfrei)
電氣接口:
Analog
Analog
Digital
CANopen
Digital
SAE J1939
PWM
Analog, CANopen, SAE J1939
連接類型:
帶公連接器的電纜,M12,4針
電纜,3線
電纜,M12,4針,3線
帶公連接器的電纜,M12,5針
外殼評級:EN 60529 IP67
Measuring range:50 mm ... 2,500 mm
Resolution:Typ. 0,1 mm (rauschfrei)
Electrical interface:
Analog
Analog
Digital
CANopen
Digital
SAE J1939
PWM
Analog, CANopen, SAE J1939
Connection type:
Cable with male connector, M12, 4-pin
Cable, 3-wire
Cable, M12, 4-pin, 3-wire
Cable with male connector, M12, 5-pin
Enclosure rating:EN 60529 IP67
SICK磁致伸縮位移傳感器MAX48系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SICK磁致伸縮位移傳感器系列列表:
SICK磁致伸縮位移傳感器MAX48N-12V10AC0250
SICK磁致伸縮位移傳感器MAX48N-12V20AE0500
SICK磁致伸縮位移傳感器MAX48N-31V11K11100
SICK磁致伸縮位移傳感器MAX48N-32A10AC0350
SICK磁致伸縮位移傳感器MAX48N-12A10K40500
SICK磁致伸縮位移傳感器MAX48N-22V20BM0155
SICK磁致伸縮位移傳感器MAX48N-32V20MC0350
SICK磁致伸縮位移傳感器MAX48N-12A10AE0100
SICK磁致伸縮位移傳感器MAX48N-22V20BM0410
SICK磁致伸縮位移傳感器MAX48N-22V20BM0205
SICK磁致伸縮位移傳感器MAX48N-22V30AC0255
SICK磁致伸縮位移傳感器MAX48N-12C7FCE0635
SICK磁致伸縮位移傳感器MAX48N-12C7FCE0250
SICK磁致伸縮位移傳感器MAX48N-12A10BA0430
SICK磁致伸縮位移傳感器MAX48N-32JFDCC1290
SICK磁致伸縮位移傳感器MAX48N-22V10AD2000
SICK磁致伸縮位移傳感器MAX48N-32JFDCC0300
SICK磁致伸縮位移傳感器MAX48N-12A10AE0800
SICK磁致伸縮位移傳感器MAX48N-12V30AM0250
SICK磁致伸縮位移傳感器MAX48N-12J7FCE0250
SICK磁致伸縮位移傳感器MAX48N-12E04DA0100
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SICK磁致伸縮位移傳感器MAX48系列的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
有關SICK磁致伸縮位移傳感器MAX48系列更詳細的信息或者購買SICK相關產品,請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
