PEMUK電流探頭Dcflex系列技術參數
Performance | |
Peak current (FS) | 10kA, 20kA, 30kA, 40kA (higher custom ratings available) |
Output (FS) | 2.0V pea |
ccuracy (typ.) | ± 0.4% of reading - Calibration |
Measurement drift | 0.025% per second of reading - Set-up drift |
Operating temperature range | 0℃ to +40℃ (Integrator electronics) |
Coil Lengths | 1000mm or 2000mm (custom lengths available) |
Coil thickness | 8.5mm max. |
Peak coil insulation | 2kV peak |
Cable Length (coil to integrator) | 1.5m (custom lengths available) |
Power Supply | ‘B’ Battery 4 x AA (1.5V standard alkali batteries) Plus - 2.1mm socket for 12V (±10%) DC input |
Display | 1.999V max output (4 digit display 0.001V resolution) |
PEMUK電流探頭Dcflex系列介紹

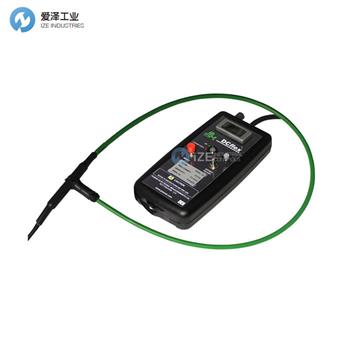

DCflex是一款易于使用、低成本、薄型的夾式直流電流探頭。它適合測量大于2kA的直流電流。
DCflex進行一次性直流電流測量，典型精度為±1%。需要注意的是，DCflex并不提供直流電流的連續測量。
直流電流顯示在電子外殼前面的一個小LCD顯示屏上?；蛘撸ㄟ^外殼前面的BNC插座，可以將輸出顯示在數字多用表（DMM）或示波器上，這一功能在測量具有紋波成分的直流電流時非常有用。
The DCflex is an easy to use, low cost, thin and clip-around DC current probe. It is suitable for measuring large DC currents of >2kA.
The DCflex takes a single shot measurement of the DC current with a typical accuracy of ±1%. It is important to understand that the DCflex does not provide a continuous measurement of DC current.
The DC current is displayed on a small LCD display on the front of the electronics enclosure. Alternatively the output can be viewed on a DMM or oscilloscope via a BNC socket on the front of the enclosure, a feature that is useful if the DC current measured has a ripple component which needs to be measured.
PEMUK電流探頭Dcflex系列其他常用型號：
PEMUK Dcflex/40/2000
PEM UK CWT
PEM UK CWT Mini50HF
PEM UK CWT Mini & MiniHF
PEM UK CWT Ultra Mini
PEM UK CWT LF
PEM UK RCTi
PEM UK RCTi 3-Phase
PEM UK RCTrms
PEM UK RCTrms 3-Phase
PEM UK RCT1A
PEM UK LFR
PEM UK DCFlex
PEMUK Current Probe NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PEMUK電流探頭Dcflex/40/2000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PEMUK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
PEMUK電流探頭Dcflex系列Dcflex/40/2000介紹及選型
