ESITRON信號轉換器SK20系列規格
Technical data | |
General | |
Ambient temperature: | 0 to +50 °C |
Storage temperature: | -20 to +70 °C |
Dimensions: | 22,5 x 91,5 x 90 mm (WxDxH) |
Mounting: | TS 35 rail |
Protective system: | IP 20 |
Supported Measurement-Systems: | Singleturn-, multiturn- and linear encoders |
SSI-Encoders (SK20.4.2) | |
Signal level: | RS422 |
Code: | Gray-/binary-code |
Clock frequency: | 230 KHz (stand alone) |
70-600 KHz (parallel connection) | |
Encoders with Start/Stop-Signal (SK20.4.4) | |
Interface: | Digital P-interface/R-module |
Resolution: | 25 / 50 mm |
Ready / fault signal | |
Transistor output: | max. 50 mA |
Supply voltages | |
Nominal: | 24 VDC |
Permissible range: | 18 - 30 VDC |
Input current: | ca. 0,1 A |
Reverse polarity protected by diod | |
Analog output (current or voltage) | |
Resolution: | 16 bit |
Cycle time: | 1 ms |
Current output | |
- Signal level: | 4 - 20 / 0 - 20 mA |
- Max. error: | 0,1% |
- Load impedance: | ￡ 600 W |
Voltage output | |
- Signal level: | 0 - 10 V |
- Max. Error: | 0,2% |
- Output impedance: | 0 W |
- Load impedance: | 3 1 KW |
ESITRON信號轉換器SK20系列介紹
描述

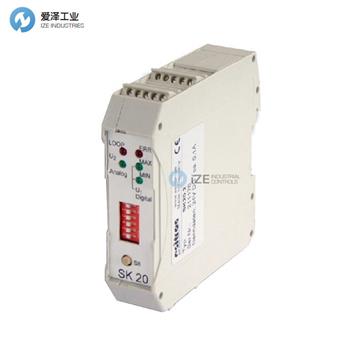

SSI 信號轉換器 / 信號轉換器 SK20
將數字絕對測量系統信號轉換為模擬信號
將帶有 SSI 接口或啟動/停止信號（跨音速）的編碼器數據轉換為電壓 0-10V 或電流 0-20 mA / 4-20 mA，適用于單圈和多圈編碼器，分辨率可達 25 位
模擬輸出為 16 位
最小值和最大值可按需編程
可獨立或與現有系統并行運行
輸入和輸出信號的電氣隔離
SSI、啟動-停止脈沖，適用于 DIN 導軌，電氣隔離，數字信號
Description
SSI signal converter / signal converter SK20
Conversion of digital absolute measuring system signals to analog
Conversion of encoder data with SSI interface or start/stop signals (transonic) into voltage 0-10V or current 0-20 mA / 4-20 mA
for singleturn and multiturn encoders up to 25 bit
resolution analog output 16 bit
Min and max values programmable as required
Stand-alone or parallel operation to existing systems
Electrical isolation of input and output signals
SSI, Start-stop pulses, for DIN rail, galvanically isolated, digital
