Brief introduction of OBL diaphragm pump R series -RBA series
RBA series spring return plunger metering pump with sturdy and compact design.
Plunger lip seals, 300 1/h max flow rate.
Lip seals are aviable in three different materials to meet all dosing requirements.
Lip seals are OBL designed and by means of injection moulding we obtain shapes and dimensions that avoid leakages even when dosing chemicals with solid content.
R series -RBA series characteristics of OBL diaphragm pump
Mechanism and reduction gear are enclosed in an oil-bath lubricated aluminium casing. PTFE coated lantern.
? Smooth flowrate adjustment by control knob, both with pump running and at rest.

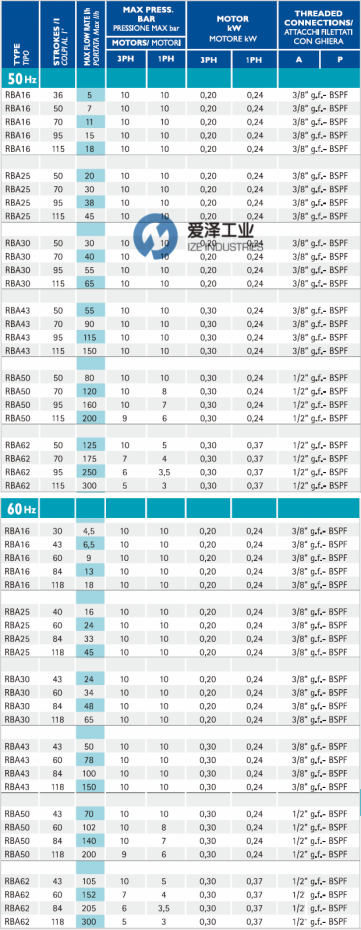

OBL diaphragm pump R series -RBA series technical information

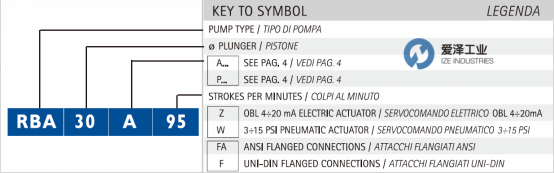

OBL diaphragm pump R series -RBA series selection reference

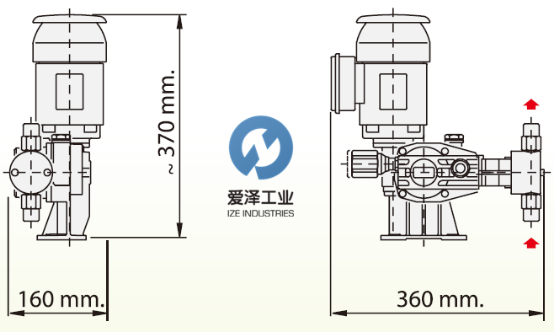

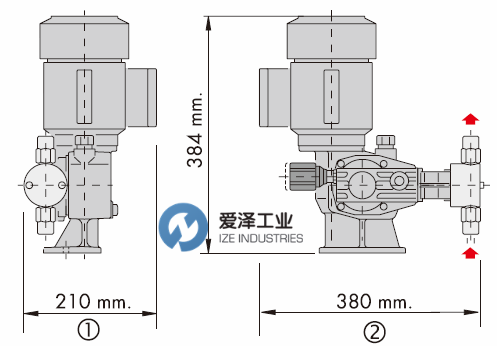

OBL diaphragm pump R series -RBA series size
Brief introduction of OBL diaphragm pump R series -RBB series
RBB series spring return plunger metering pump with sturdy and compact design.
Chevron PTFE rings plunger packing with gland nut, 3001/h max flow rate.
The adjustable packing ensures long lasting operation and mantains volumetric efficiency (possible leakages can be stopped).
Chevron PTFE design allows pressures up to 40 barg.
R series -RBB series characteristics of OBL diaphragm pump
Mechanism and reduction gear are enclosed in an oil-bath lubricated aluminium casing. PTFE coated lantern.
Smooth flowrate adjustment by control knob, both with pump running and at rest.

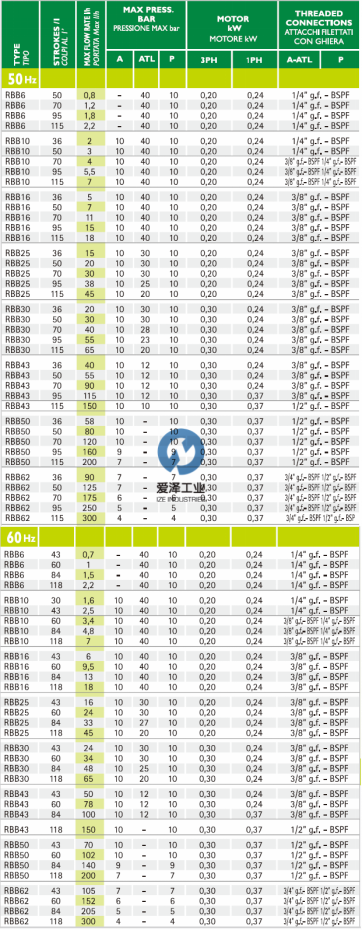

OBL diaphragm pump R series -RBB series technical information

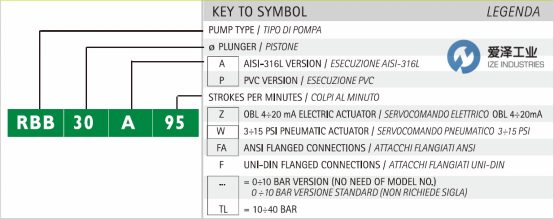

OBL diaphragm pump R series -RBB series selection reference

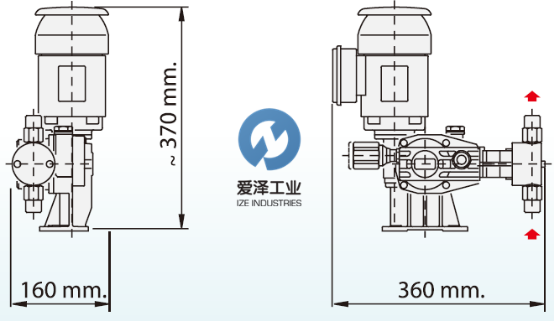

OBL diaphragm pump R series -RBB series size
Brief introduction of OBL diaphragm pump R series -RCC series
RCC series spring return plunger metering pumps with sturdy and compact design.
Chevron PTFE rings plunger packing with gland nut, 300 1/h max flow rate.
TS pumps (Max press. up to 100 bar) have floating plunger and Kevlar reinforced PTFE braid.
OBL diaphragm pump R series -RCC series technical information

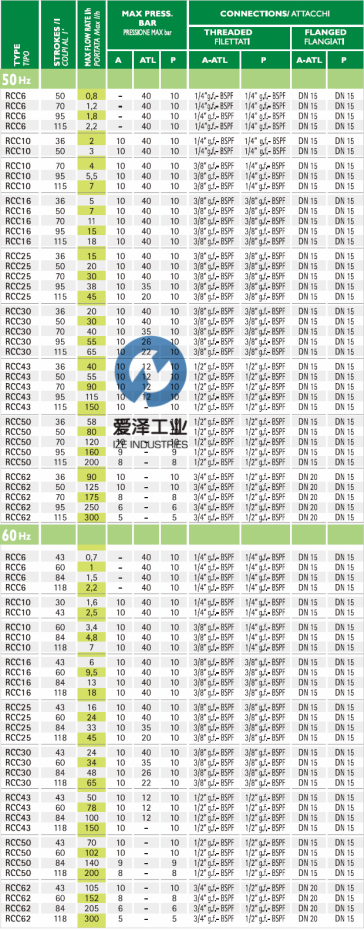

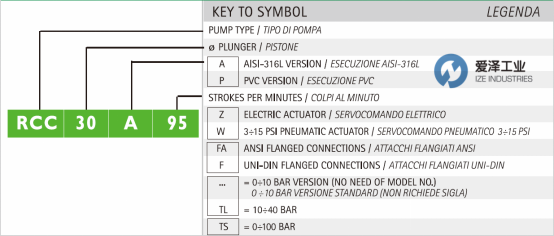

OBL diaphragm pump R series -RCC series selection reference

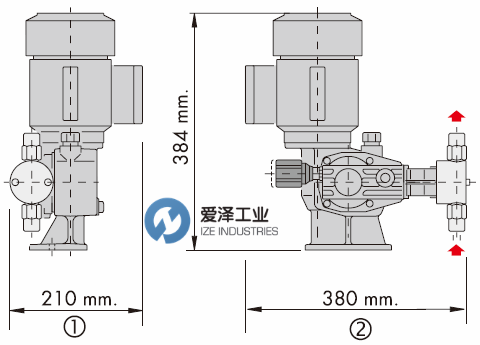

OBL diaphragm pump R series -RCC series size
Brief introduction of OBL diaphragm pump R series -RCC HV series
GENERAL FEATURES
The mechanism is of the cam/disc type, with spring return stroke, and of simple, sturdy, compact construction.
Simple and robust spring return plunger pump.
The cam is keyed on the pump shaft. Cam and disc are made of hardened steel.
Stepless adjustment of the flow rate, both when pump at rest and in operation.
Max suction lift 1,5 m.w.c. (see operating manual).
ATEX STD compliance (94/9/CE), Group II category 2 (Zone 1/21) and Group II category 3 (Zone 2/22).
Mechanism and reduction gear are enclosed in an oil-bath lubricated aluminium casing. PTFE coated cast iron lantern ring.
Smooth flowrate adjustment by control knob, both with pump running and at rest.
OBL diaphragm pump R series -RCC HV series size size

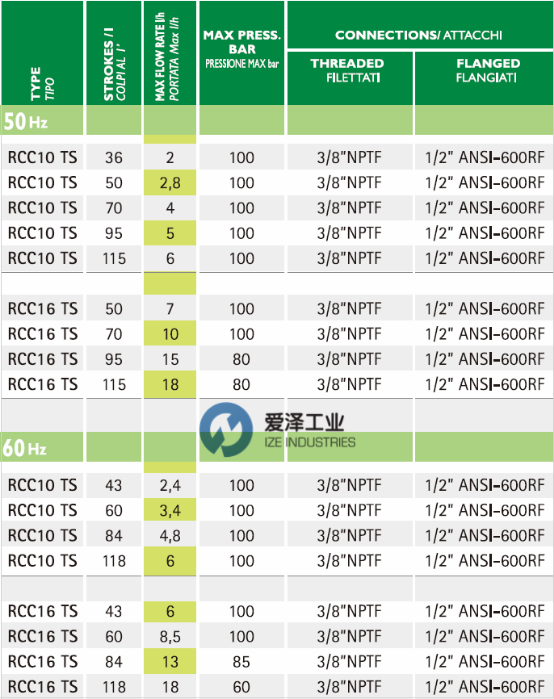

OBL diaphragm pump R series -RCC TS series technical information

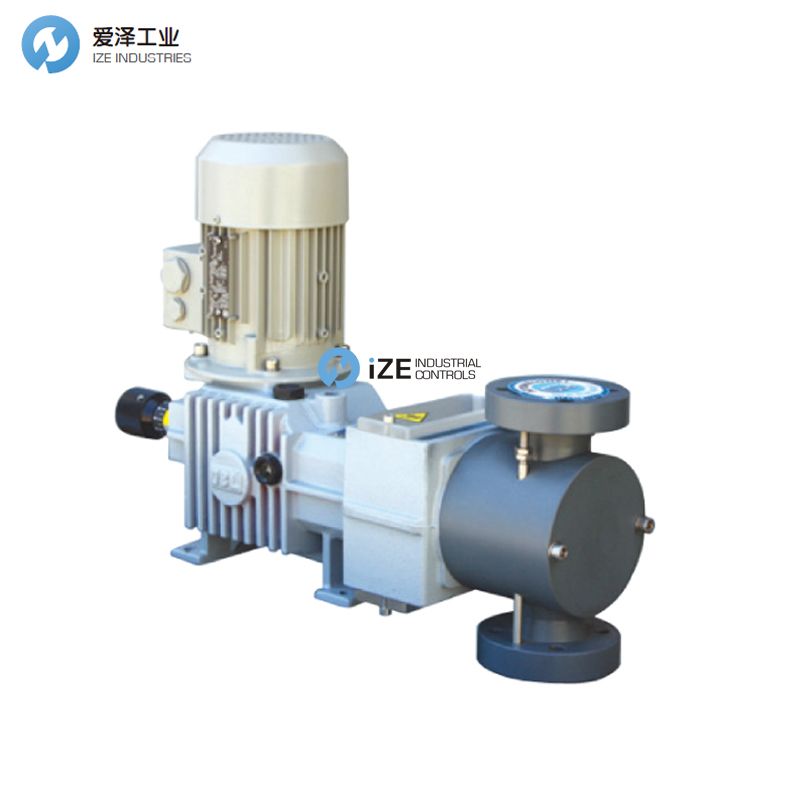

OBL diaphragm pump R series example R50
IZE INDUSTRIES special distribution, commonly used spare parts OBL diaphragm pump series list:
OBL diaphragm pump RBA16
OBL diaphragm pump RBA25
OBL diaphragm pump RBA30
OBL diaphragm pump RBA43
OBL diaphragm pump RBA50
OBL diaphragm pump RBA62
OBL diaphragm pump RBB6
OBL diaphragm pump RBB10
OBL diaphragm pump RBB16
OBL diaphragm pump RBB25
OBL diaphragm pump RBB30
OBL diaphragm pump RBB43
OBL diaphragm pump RBB50
OBL diaphragm pump RBB62
OBL diaphragm pump RCC10 TS
OBL diaphragm pump RVV16 TS
OBL diaphragm pump RCC6
OBL diaphragm pump RCC10 TS
OBL diaphragm pump RCC16
OBL diaphragm pump RCC25
OBL diaphragm pump RCC30
OBL diaphragm pump RCC43
OBL diaphragm pump RCC50
OBL diaphragm pump RCC62
Who we are
IZE-industries was established in 2010.With its many years of professional experience, providing advanced manufacturing industries technology and equipment. Including advanced electrical automation, machinery and transmission, fluid control, instrumentation, tools and other products. As a partner in electrical, hydraulic and pneumatic solutions, we also provide our customers with consulting solutions, market knowledge, and value-added services.
What we offer
Engineering and Consulting
Full-service controls engineering and consulting solutions for industrial
manufacturing equipment, including:
Electrical design
PLC programming and repair
Process optimization
Down-time consultation
spare parts from the areas, including:
Hydraulic, Pneumatic, Industrial, Automation technology.
Please contact us for complete stock list or special discount.
If you are looking for any obsolete / Hard item, we can help you.
If you have any question for OBL diaphragm pump R series example R50, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
