EXTECH攝像機HDV600產品參數
Specifications | Range |
LCD Screen | 14.5cm (5.7") Viewable 13.5cm (5.3") |
Interface | Mini USB 1.1 and AV out |
Recording medium | SD Card |
SD memory | 2GB maximum |
Compression format | MPGE4 |
Still image format | JPEG (640x480) |
Video Recording Format | AVI (640x480) |
Video output Format | NTSC and PAL |
Receiver Frequency | 2.4GHz |
Receiver Sensitivity | -87dBm (SNR = 42dB, Fmod = 15kHz) |
Video System | NTSC / PAL |
Data | Video / Audio |
Audio type | Stereo |
Tripod mount | On rear, Accepts standard tripod screw |
Battery | 3.7V rechargeable Li-Polymer |
Power adaptor | 100 to 240V input / 5VDC output |
Operating/Storage Temperature | -10 to 60°C(14 to 140°F) / -40 to 80°C(-40 to 176°F) |
Operating Humidity (Max.) | 0.8 |
Ingress protection | IP67 |
Dimensions (W x D x H) | 24.1 x 17.8 x 7.0cm (9.5'x7"x2.75") |
Weight | 1474g (3.25lb) |
EXTECH攝像機HDV600產品介紹
HDV600具有各種可選的攝像機探頭,可以滿足應用需求。從具有咬接和/或無線功能的尺寸范圍中選擇(單獨出售)。防水(IP67)攝像機具有5.7英寸彩色LCD TFT,具有高分辨率640 x 480分辨率。隨附的SD存儲卡可存儲14,600多個圖像。帶有語音注釋的視頻錄制(長達4小時)。 AV輸出,可直接在監視器上觀看圖像和視頻。可以通過SD卡或USB輸出將視頻和圖像傳輸?shù)絇C。可選的無線發射器可以從測量點向顯示器傳輸高達100英尺(30 m)的視頻。包括SD卡,3.7伏可充電鋰聚合物電池,跳線,交流適配器,USB和AV電纜以及便攜包。手機或攝像頭單獨出售。

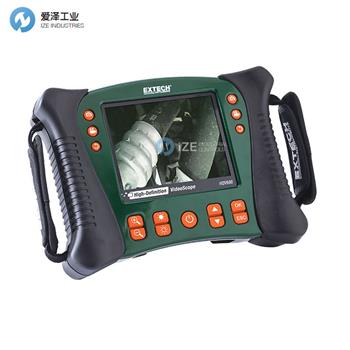

The HDV600 has various optional camera probes to fit your application needs. Choose from a range of sizes with articulating and/or wireless features (sold separately). Waterproof (IP67) Videoscope features a 5.7 in. color LCD TFT with high definition 640 x 480 resolution. The SD memory card included stores more than 14,600 images. Video recording (up to 4 hours) with voice annotation. AV output for viewing images and video directly on a monitor. Video and images can be transferred to a PC via the SD card or USB output. Optional wireless transmitter allows you to transmit video up to 100ft (30 m) from the measurement point to your monitor. Includes SD card, 3.7 Volt rechargeable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, and hard carrying case. Handsets and/or camera heads are sold separately.
EXTECH攝像機HDV600其他常見型號:
EXTECH HDV640
EXTECH HDV610
EXTECH HDV640W
EXTECH HDV650W
EXTECH HDV620
EXTECH HDV650-30G
EXTECH HDV650-10G
EXTECH HDV600
EXTECH High Definition Videoscope NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EXTECH攝像機HDV600的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
