美國DANAHER編碼器RIM1250系列

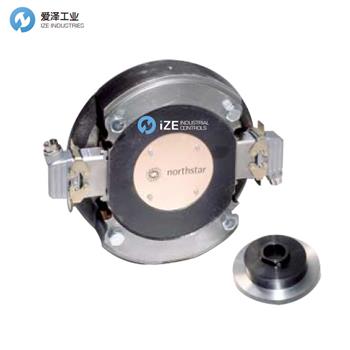

重載磁性增量型編碼器 NorthStar RIM Tach? 1250
無軸承設計，可直接安裝在250C端面電機上（帶有12.5”外徑的安裝法蘭）
傳感器模塊可動態拆裝
不銹鋼和鑄鐵結構，可適合重工型應用
堅固的零速磁阻傳感技術，不受油脂、鹽水、灰塵或其它污染物的影響
RIM Tach? 1250 digital tachometer provides position and velocity feedback from both AC & DC electric motors.The Model 1250 is designed for 12.5 inch diameter type C face motor frames and accessory mounts. This tachometer providesprecise, reliable speed signals for many monitoring and control applications and is a standard feedback device for AC & DCvariable speed drives. The RIM Tach? 1250 is the process industry’s answer to a large thru-shaft option for precise speed control.
Rugged Enclosure
The RIM Tach? 1250 enclosure is constructed of ductile castiron. This ensures maximum strength and endurance for possibleexposure to acid wash down in pulp and paper applications. Theenclosure accommodates both end-of-shaft and thru-shaftmountings and is universally machined to accommodate allsensor modules, regardless of the desired pulse count.
Reliable Magnetoresistive Technology
The RIM Tach? 1250 sensor module which has been engineeredto provide a non-contact sensor and electronics in oneinterchangeable hermetically sealed package. Each patentedmagnetoresistive sensor module has encapsulated surface mountelectronics. The protectedelectronics provide resistance to water,oil, dirt, high temperatures, shock and vibrations and overallharsh environments. The Model 1250 can accommodate up to2048 pulses per revolution and is bidirectional providing squarewave outputs.
Easy Installation

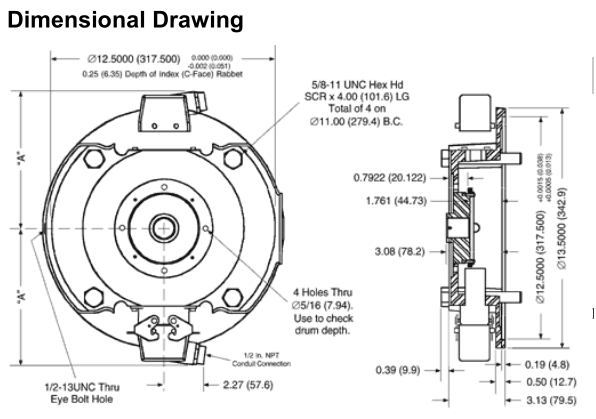

The non-contact magnetoresistive sensor and rugged magnetizeddrum are designed and machined to function properly withoutany adjustments when assembled to NEMA C face (12.5 inchdiameter) motor frames and accessory mounts. There are nobearings to fail or requirements for flexible couplings because themagnetized drum assembly is attached directly to the shaft. Themill duty latching connectors are standard. These sealedconnectors are a snap to wire by simply inserting the strippedconductor in the plug and tightening the screw terminals. There isno need to field solder or to struggle with a crimp pin. The pulsecount output is verysimple to change, just remove four screwsand slide the desired pulse count sensor module in place.
Features:
? Accepts shaft diameters up to 8" through thetachometer making it ideal for crane & hoist
applications.
? Mounts directly on motor frame, non-contact designwith flexible couplings or bearings.
? Rugged cast iron pancake construction has a doubleC face which can be sandwiched between the motorand a brake.
? Rugged zero speed, magnetoresistive sensors areunaffected by grease, salt water, dirt or other common contaminants.
? Modular design offers replaceable sensor/electronicmodular for fast, easy field service.
? Resolutions up to 2048 pulses per revolution withoptional Index pulse.
