MercuryII5000系列編碼器內置了傳感器內的所有電子元件。這款緊湊型多功能傳感器包括以下功能：
?可編程插值電平和輸出帶寬
?精度優化-自動優化傳感器信號，以提高系統精度并最大限度地提高可重復性
?雙向索引輸出脈沖，重復性為1LSB
?A-Quad-B三態輸出報警，用于低信號
?所有設置和設置參數都存儲在非易失性存儲器中
?出色的EMI/RFI抗擾度-所有輸出均為差分;符合CE標準
可編程插值
該傳感器具有可編程插值，可在整個步長（取決于型號）的x4至x16,384范圍內進行選擇，從而提供可滿足應用要求的輸出分辨率。此功能允許客戶減少庫存和現場備件成本，因為可以針對許多不同的分辨率要求和不同的運動軸編程一個電子模塊。運動系統開發工程師還可以通過允許在運動系統環路調整和優化期間改變編碼器分辨率來實現可編程插值的靈活性。線性分辨率范圍從5μm到1.2nm，方便的增量和旋轉分辨率從20k CPR到2.68億CPR。在訂購時指定插補值，或使用SmartPrecision II軟件其在的現場選擇插值
可編程最大輸出頻率
對于結合了高分辨率和高速度的編碼器應用，該傳感器每秒支持高達5000萬次正交狀態變化。通過指定最大輸出頻率以匹配您的控制器的能力-范圍從每秒大約0.098到5000萬正交狀態變化- Mercury II編碼器系統永遠不會產生比控制器讀取它們更快的編碼器計數。在訂購時指定編碼器的最大輸出頻率，或使用MicroE的SmartPrecision II軟件在現場選擇設置。
雙重限制
MercuryII包括具有差分TTL輸出的光學和電氣故障安全獨立左右限制。
限制輸出是瞬間的。在光學上，光學限制軌道上的全反射是正常的操作條件;光學限制軌道上的信號丟失觸發限制輸出，使其具有光學故障安全性。限制的TTL輸出為低電平有效，使其具有電氣故障安全性。限制輸出可在訂購時配置為低電平有效或高電平有效，或由客戶使用SmartPrecision II軟件配置，以滿足控制器的要求。
可編程低通濾波器
Mercury II 5000具有可編程低通輸出濾波器，可在低速應用中提高性能。濾波器可以禁用全帶寬或設置為0.01-100kHz，步長為0.01kHz，其中頻率為-3dB輸出滾降。
解析度
線性：5μm至1.22nm
旋轉：20k至268M CPR
準確性
膠帶尺：±5μm/m
玻璃秤：
線性：±1μm可用
±1.5μm至±5μm標準
旋轉：最高±2.1弧秒
輸出
A-quad-B，索引脈沖，雙重限制和警報
尺度
相同的磁帶或玻璃傳感器，線性或旋轉

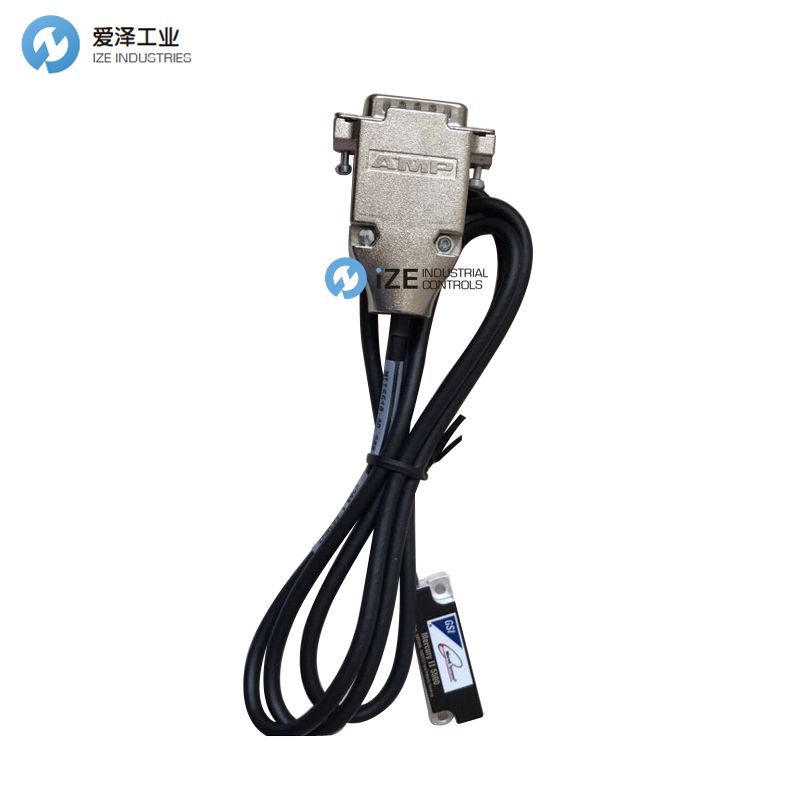

The Mercury II? 5000 series encoders have all electronics built into the sensor. This compact, versatile sensor includes the following features:
? Programmable interpolation level and output bandwidth
? Accuracy optimization - sensor signals are automatically optimized to improve system accuracy and maximize repeatability
? Bi-directional index output pulse with repeatability of 1LSB
? A-Quad-B tri-state output alarm for low signal
? All settings and setup parameters are stored in non-volatile memory
? Superior EMI/RFI immunity - all outputs are differential; CE compliant
Programmable Interpolation
The sensor has programmable interpolation that is selectable over the range x4 to x16,384 in integer steps (depending on model), providing output resolutions that can be matched to your application requirements. This feature allows customers to reduce inventory and field spare parts costs since one electronics module can be programmed for many different resolution requirements and different motion axes. Motion system development engineers also benefit from the flexibility of programmable interpolation by allowing them to vary the encoder's resolution during motion system loop tuning and optimization. Linear resolutions can range from 5μm to 1.2nm in convenient increments and rotary resolutions from 20k CPR to 268 million CPR. Specify the interpolation value at the time of ordering or select the interpolation at your site using SmartPrecision II Software
Programmable Maximum Output Frequency
For encoder applications combining high resolution and high speed, the sensor supports up to 50 million quadrature state changes per second*. By specifying the maximum output frequency to match your controller’s capability - ranging from approximately 0.098 to 50 million quadrature state changes per second - the Mercury II encoder system will never produce encoder counts faster than your controller can read them. Specify the encoder's maximum output frequency at the time of ordering or select the setting at your site using MicroE's SmartPrecision II Software.
Dual limits
Mercury II includes optically and electrically fail-safe independent left and right limits with differential TTL outputs.
The limit outputs are momentary. Optically, full reflectivity on the optical limit track is the normal operating condition; loss of signal on the optical limit track triggers a limit output, making them optically fail-safe.The TTL output for limits is active-low, making them electrically fail-safe. Limit outputs can be configured for active-low or active-high at the time of ordering, or by the customer using SmartPrecision II Software, to match your controller’s requirement.
Programmable Low Pass Filter
The Mercury II 5000 has a programmable low-pass output filter for enhanced performance in low speed applications. The filter can be disabled for full bandwidth or set from 0.01 - 100kHz in steps of 0.01kHz, where the frequency is -3dB output roll off.
Resolution
Linear: 5μm to 1.22nm
Rotary: 20k to 268M CPR
Accuracy
Tape Scale:±5μm/m
Glass Scales:
Linear:±1μm available
±1.5μm to±5μm standard
Rotary: Up to±2.1 arc-sec
Outputs
A-quad-B, Index Pulse,Dual Limits, and Alarm
Scales
Same Sensor for Tape or Glass,Linear or Rotary

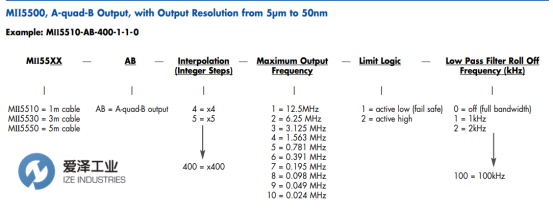

MicroE編碼器MercuryII5000系列型號說明
愛澤工業(IZE_INDUSTRIES)特價經銷、常用MICROE編碼器型號：
MICROE編碼器MII5510-AB-200-4-1-0
MICROE編碼器MII5510-AB-400-1-1-0
MICROE編碼器MII5510-AB-400-3-1-0
MICROE編碼器MII5810-AB-16384-1-1-0
MICROE編碼器MII5710-AB-4000-1-1-0
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何MicroE編碼器MercuryII5000系列 示例MII5510-AB-200-4-1-0的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
有關MicroE編碼器MercuryII5000系列 示例MII5510-AB-200-4-1-0更詳細的信息或者美國MicroE相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
MicroE編碼器MercuryII5000系列型號說明及產品描述
