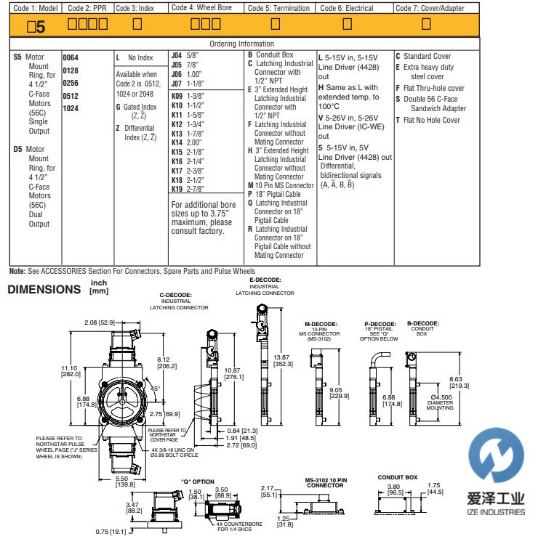

NORTHSTAR編碼器S5/D5系列尺寸及參數選型
NORTHSTAR編碼器S5/D5系列特性描述
電氣參數
頻率響應:0-120kHz數據和索引。
抗噪聲:經EN61326-1測試
電氣抗擾度:反極性和短路保護
連接器:10針工業負載鎖定,密封NEMA 4和12,IP65;
MS連接器或線尾
機械參數
孔徑:5/8英寸至3.75英寸
安裝配置:4.5“56C-Face或140
適用于NEMA MG1標準的C-Face安裝座
最大 軸速:5,000 RPM
需要軸長:0.7 min
允許軸端游隙:±0.045
允許軸徑向跳動:0.002“TIR
加速度:最大12,000轉/秒
外殼材料:鑄鋁
重量:7磅
環境
工作溫度范圍:
標準:-40°C至+ 90°C
擴展:-40°C至+ 100°C
存儲溫度范圍:-40°C至+ 120°C
沖擊(傳感器模塊):30 G的最小值
振動:18 G @ 5-2000 Hz頻譜
濕度:高達98%(非冷凝)
ELECTRICAL (CONT.)
Frequency Response: 0 - 120kHz Data & Index.
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short circuit protected
Connector: 10 pin industrial duty latching, sealed NEMA 4 &12, IP65;
MS connector or pig-tail
MECHANICAL
Bore Size: 5/8” to 3.75”
Mounting Configuration: 4.5” 56C-Face or 140
C-Face Mount for NEMA MG1 Standards
Max. Shaft Speed: 5,000 RPM
Shaft Length Required: 0.7” min
Allowable Shaft End-Play: ± 0.045”
Allowable Shaft Runout: 0.002” TIR
Acceleration Rate: 12,000 rpm/sec max
Housing Material: Cast Aluminum
Weight: 7 lbs
ENVIRONMENTAL
Operating Temperature Range:
Standard: -40°C to +90°C
Extended: -40°C to +100°C
Storage Temperature Range: -40°C to +120°C
Shock (Sensor Module): 30 G’s Min
Vibration: 18 G’s @ 5-2000 Hz spectrum
Humidity: Up to 98% (non-condensing)

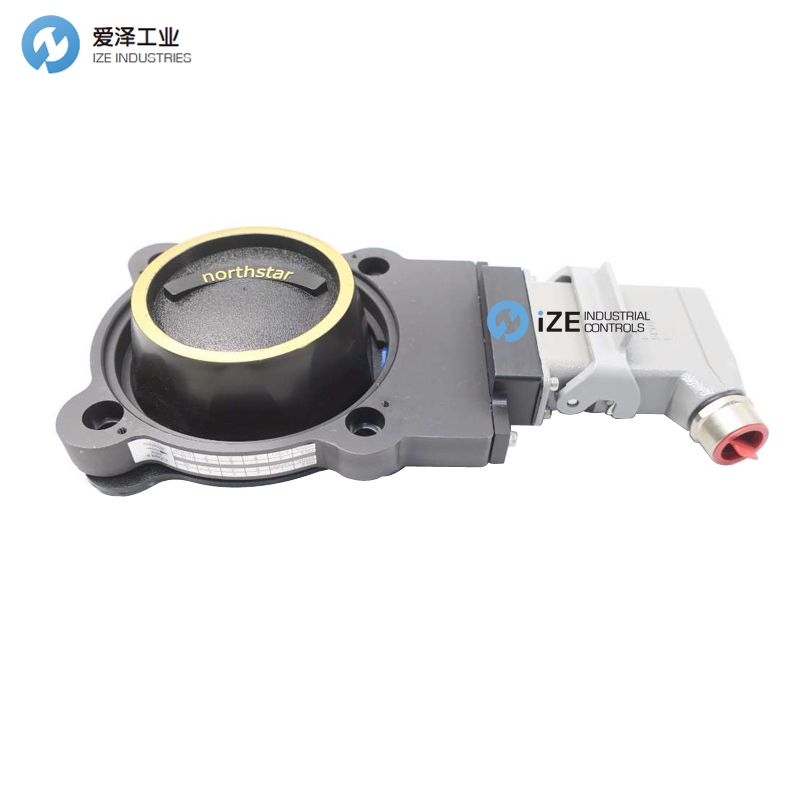

NORTHSTAR編碼器S51024ZJ04CLE
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號:
NORTHSTAR編碼器S51024ZJ04BLC
NORTHSTAR編碼器S51024ZJ04BVC
NORTHSTAR編碼器S51024ZJ04C5C
NORTHSTAR編碼器S51024ZJ04CHC
NORTHSTAR編碼器S51024ZJ04CHE
NORTHSTAR編碼器S51024ZJ04CLE
NORTHSTAR編碼器S51024ZJ04CLE
NORTHSTAR編碼器S51024ZJ04CLF
NORTHSTAR編碼器S51024ZJ04CLE
NORTHSTAR編碼器S51024ZJ04CLT
NORTHSTAR編碼器S51024ZJ04CVC
NORTHSTAR編碼器S51024ZJ04CVE
NORTHSTAR編碼器S51024ZJ04CVS
NORTHSTAR編碼器S51024ZJ04ELC
NORTHSTAR編碼器S51024ZJ04ELS
NORTHSTAR編碼器S51024ZJ04MLC
NORTHSTAR編碼器S51024ZJ04MLE
NORTHSTAR編碼器S51024ZJ04MLF
NORTHSTAR編碼器S51024ZJ04MVC
NORTHSTAR編碼器S51024ZJ04MVS
NORTHSTAR編碼器S51024ZJ04PLC
NORTHSTAR編碼器S51024ZJ04PLS
NORTHSTAR編碼器S51024ZJ04PVS
NORTHSTAR編碼器S51024ZJ04QLC
NORTHSTAR編碼器S51024ZJ04QLS
NORTHSTAR編碼器S51024ZJ04QVF
NORTHSTAR編碼器S51024ZJ04SVC
NORTHSTAR編碼器S51024ZJ05BLC
NORTHSTAR編碼器S51024ZJ05CLC
NORTHSTAR編碼器S51024ZJ05CLE
NORTHSTAR編碼器S51024ZJ05CLS
NORTHSTAR編碼器S51024ZJ05CLT
NORTHSTAR編碼器S51024ZJ05CVC
NORTHSTAR編碼器S51024ZJ05CVS
NORTHSTAR編碼器S51024ZJ05ELS
NORTHSTAR編碼器S51024ZJ05EVS
NORTHSTAR編碼器S51024ZJ05M5C
NORTHSTAR編碼器S51024ZJ05MLC
NORTHSTAR編碼器S51024ZJ06CLC
NORTHSTAR編碼器S51024ZJ06CLE
NORTHSTAR編碼器S51024ZJ06CLS
NORTHSTAR編碼器S51024ZJ06CVE
NORTHSTAR編碼器S51024ZJ06CVF
NORTHSTAR編碼器S51024ZJ06CVS
NORTHSTAR編碼器S51024ZJ06ELE
NORTHSTAR編碼器S51024ZJ06PLC
NORTHSTAR編碼器S51024ZJ06PLE
NORTHSTAR編碼器S51024ZJ06PLF
NORTHSTAR編碼器S51024ZJ06PVC
NORTHSTAR編碼器S51024ZJ07CLC
NORTHSTAR編碼器S51024ZJ07CLS
NORTHSTAR編碼器S51024ZJ07MLC
NORTHSTAR編碼器S51024ZJ07MLF
NORTHSTAR編碼器S51024ZJ15CLF
NORTHSTAR編碼器S51024ZJ28BVC
NORTHSTAR編碼器S51024ZJ34EVC
NORTHSTAR編碼器S51024ZJ51CLF
NORTHSTAR編碼器S51024ZJ51EVS
NORTHSTAR編碼器S51024ZJ57MVC
NORTHSTAR編碼器S51024ZJ6PLFFM
NORTHSTAR編碼器S51024ZJ82PLF
