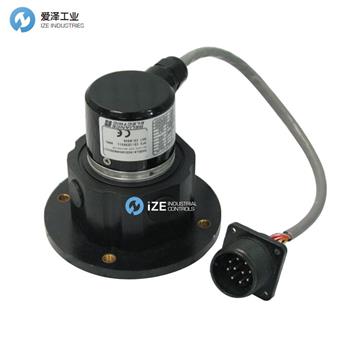

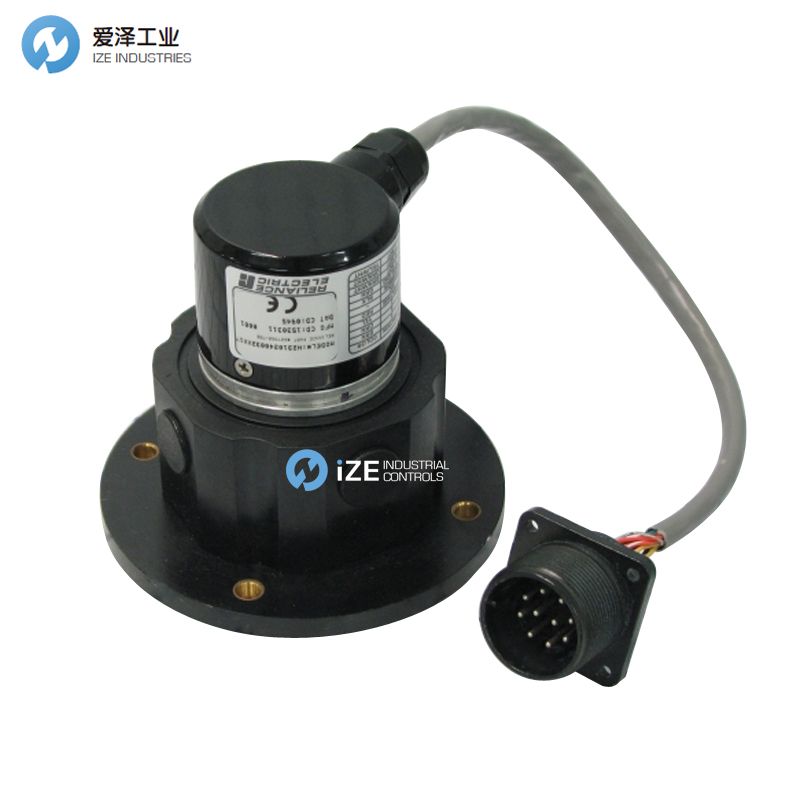

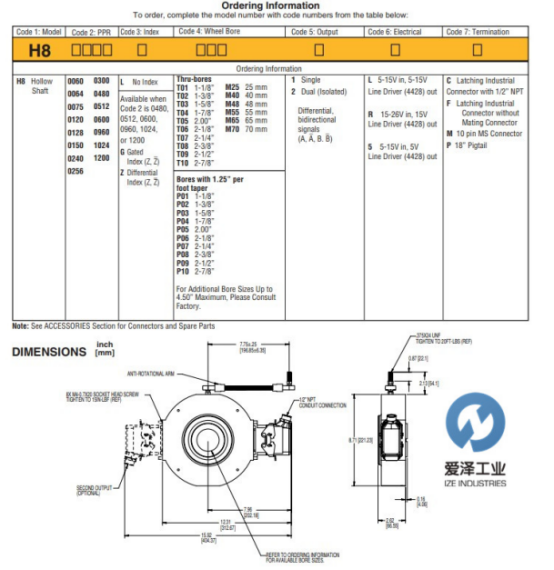

DYNAPAR編碼器H81024T012LD尺寸圖及選型參數表
DYNAPAR編碼器H81024T012LD特性描述
電氣參數
輸入電壓要求：5-15 VDC，15-26 VDC
當前要求：
電氣選項L：每個傳感器模塊典型值為45mA，另外還有線路驅動器負載
使用電氣選件R和5：65mA典型的傳感器模塊加上線路驅動器負載
輸出信號：4428差分線路驅動器：150mA，接收器或信號源
抗噪聲：經EN61326-1測試
電氣抗擾度：反極性和短路保護
連接器：10針工業負載鎖定，密封NEMA 4和12，IP65; MS連接器或引線
機械
鉆孔直徑：1-1/8"至4-1/2"，直或錐孔
安裝配置：空心軸安裝用防旋轉系繩
軸速：3,600 RPM
需要的軸長：2.5min
加速率：最高3,600轉/秒
允許軸端游：0.25（受制于RPM限制）
允許軸徑向跳動：0.010 TIR（受制于RPM限制）
外殼材料：鑄鐵/不銹鋼
重量：30磅
環境
工作溫度范圍：-20°C至+ 70°C
存儲溫度范圍：-40°C至+ 120°C
沖擊（傳感器模塊）：30 G的最小值
振動：18 G @ 5-2000 Hz頻譜
濕度：高達98％（非冷凝）
ELECTRICAL
Input Voltage Requirement: 5-15 VDC, 15-26 VDC
Current Requirement:
With Electrical Option L: 45mA typical per sensormodule plus line driver load
With Electrical Option R and 5: 65mA typical persensor module plus line driver load
Output Signals:4428 Differential Line Driver: 150mA, sink or source
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and shortcircuit protected
Connector: 10 pin industrial duty latching, sealed NEMA 4 &12, IP65; MS connector or pig-tail
MECHANICAL
Bore Diameter: 1-1/8"to 4-1/2", straight ortapered bore
Mounting Configuration: Hollow Shaft mount with Anti-Rotation Tether
Shaft Speed: 3,600 RPM
Shaft Length Required: 2.5” min
Acceleration Rate: 3,600 rpm/sec max
Allowable Shaft End-Play: 0.25"(Subject to RPM Limitation)
Allowable Shaft Runout: 0.010" TIR (Subject to RPM Limitation)
Housing Material: Cast Iron/Stainless Steel
Weight: 30 lbs
ENVIRONMENTAL
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -40°C to +120°C
Shock (Sensor Module): 30 G’s Min
Vibration: 18 G’s @ 5-2000 Hz spectrum
Humidity: Up to 98% (non-condensing)
