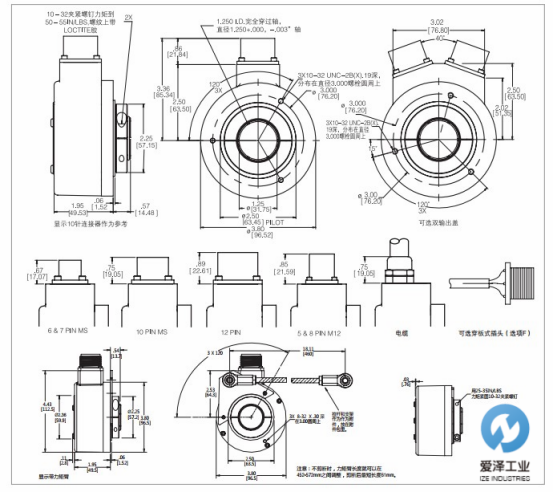

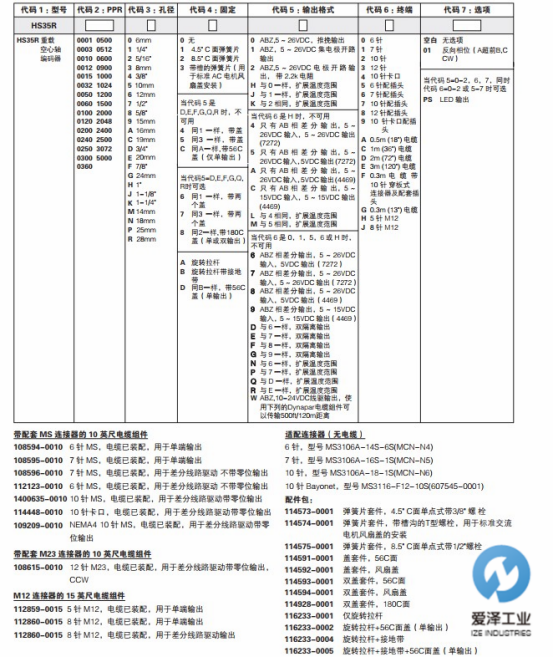

美國DYNAPAR編碼器HS35R012075A1PS尺寸圖及選型參數表
美國DYNAPAR編碼器HS35R012075A1PS特性描述
ELECTRICAL
Input Power: 5-26VDC, 5-15VDC. 80 mA max., not
including output loads.
Outputs:
7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or source
7273 Open Collector: 40mA, sink max
4469 Differential Line Driver: 100mA, sink or source
High-Power Mosfet Line Driver
Frequency Response: 125 kHz (data & index)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity, short circuit
protected with 7272 or 7273 line drivers only
Termination: MS Connector; M12 Connector; cable
exit w/seal. See Ordering Information
Mating Connector:
6 pin MS, style MS3106A-14S-6S (MCN-N4)
7 pin MS, style MS3106A-16S-1S (MCN-N5)
10 pin MS, style MS3106A-18-1S (MCN-N6)
10 pin, NEMA4 style (MCN-N6N4)
10 pin Bayonet, MS3116-F12-10S (MCN-B1)
12 Pin CCW M23 Connector (MCN-C2)
Cable w/ 5 pin M12 Connector (112859-XXXX)
Cable w/ 8 pin M12 Connector(112860-XXXX)
MECHANICAL
Bore Diameter: 6mm to 28mm, 1/4” to 1-1/8”,
electrically isolated
Mating Shaft Length: 1.25”, Minimum, 1.60”,
Recommended
Shaft Speed: 6000 RPM, Maximum (Enclosure
Rating is IP64 at speed over 5000 RPM)
Starting Torque: 8.0 in-oz. maximum (at 25°C)
Running Torque: 5.0 in-oz. maximum (at ambient)
Bearings: ABEC 1
Housing and Cover: Powder Coated Aluminum
Shaft Material: 6061-T6 Aluminum
Disc Material: Mylar (unbreakable)
Weight: 1.76lb (28 Oz) Typical
ENVIRONMENTAL
Standard Operating Temperature: -40 to +85°C
(0 to +70°C with 4469 line driver, see “Ordering
Information”). At shaft speed above 3000 RPM,
derate 10°C per 1000 RPM
Extended Temperature Range: -40 to +100°C
(See ordering information)
Storage temperature: -40 to +100°C
Shock: 400G, 6mSec
Vibration: 5 to 3000 Hz, 20G
Humidity: Up to 98% (non-condensing)
Enclosure Rating: IP67 (IP64 at shaft speed
above 5000 RPM)
美國DYNAPAR編碼器HS35R012075A1PS等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器HS35R01200372
DYNAPAR編碼器HS35R01202420
DYNAPAR編碼器HS35R01203305
DYNAPAR編碼器HS35R0120337J
DYNAPAR編碼器HS35R012041L6
DYNAPAR編碼器HS35R01204325
DYNAPAR編碼器HS35R0120432C
DYNAPAR編碼器HS35R01204346
DYNAPAR編碼器HS35R0120651C
DYNAPAR編碼器HS35R01207167
DYNAPAR編碼器HS35R01207301PS
DYNAPAR編碼器HS35R0120730C
DYNAPAR編碼器HS35R0120730E
DYNAPAR編碼器HS35R01207311PS
DYNAPAR編碼器HS35R012073A1PS
DYNAPAR編碼器HS35R012073A6
DYNAPAR編碼器HS35R012073A6PS
DYNAPAR編碼器HS35R0120755D
DYNAPAR編碼器HS35R012075A1PS
DYNAPAR編碼器HS35R012075AD
DYNAPAR編碼器HS35R01208141
DYNAPAR編碼器HS35R01208146
DYNAPAR編碼器HS35R012081P2
DYNAPAR編碼器HS35R01208241
DYNAPAR編碼器HS35R01208310
DYNAPAR編碼器HS35R01208320
DYNAPAR編碼器HS35R01208326
DYNAPAR編碼器HS35R01208341
DYNAPAR編碼器HS35R0120838J
DYNAPAR編碼器HS35R012083C5
DYNAPAR編碼器HS35R0120841E
DYNAPAR編碼器HS35R01208427
DYNAPAR編碼器HS35R012093C7
DYNAPAR編碼器HS35R0120A067PS
DYNAPAR編碼器HS35R0120D046
DYNAPAR編碼器HS35R0120D146
DYNAPAR編碼器HS35R0120D310
DYNAPAR編碼器HS35R0120D341
DYNAPAR編碼器HS35R0120D34A
DYNAPAR編碼器HS35R0120D34E01
DYNAPAR編碼器HS35R0120E341
DYNAPAR編碼器HS35R0120H072
DYNAPAR編碼器HS35R0120H0P2
DYNAPAR編碼器HS35R0120J240
DYNAPAR編碼器HS35R0120J310
DYNAPAR編碼器HS35R0120J32G
DYNAPAR編碼器HS35R0120K145
DYNAPAR編碼器HS35R0120M37J
愛澤工業專業提供美國DYNAPAR編碼器HS35R012075A1PS等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器HS35R012075A1PS的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.
