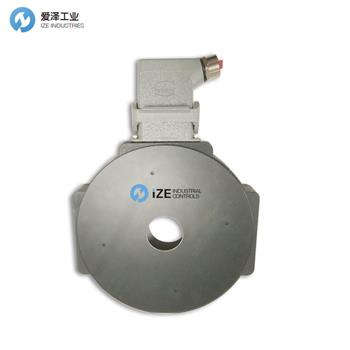

美國DYNAPAR編碼器S81024LK09CVF尺寸及參數選型
美國NORTHSTAR編碼器SL85/S8系列特性描述
ELECTRICAL
Input Power Requirements: 5-15 Volts DC, 45 Ma typical per sensor module plus line driver load
Output Signals:
4428 Differential Line Driver: 150mA, sink or source
IC-WE Differential Line Driver: 150mA, sink or source
Frequency Response: 0 - 120kHz Data & Index.
Please refer to our performance curve diagram for frequency and temperature details**
ELECTRICAL (CONT.)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short circuit protected
Connector: 10 pin industrial duty latching, sealed NEMA 4 &12, IP65
MECHANICAL
Bore Size: 5/8” to 3.75”
Mounting Configuration: 8.5” 180 C-Face Mount for NEMA MG1 standards
Max: Shaft Speed: 5,000 RPM
Shaft Length Required: 1.0” min
Allowable Shaft End-Play: ± 0.050”
Allowable Shaft Run out: 0.003” TIR
Acceleration Rate: 3600 rpm/sec max
Housing Material: Cast Aluminum
Weight: 9.2 lbs
ENVIRONMENTAL
Operating Temperature Range:
Standard: -40°C to +90°C
Extended: -40°C to +100°C
Storage Temperature Range: -40°C to +120°C
Shock (Sensor Module): 30 G’s Min
Vibration: 18 G’s @ 5-2000 Hz spectrum
Humidity: Up to 98% (non-condensing)
美國DYNAPAR編碼器SL85/S8系列 示例S81024LK09CVF等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器S81024LD06CLC
DYNAPAR編碼器S851024D06CL
DYNAPAR編碼器S81024LD08CLC
DYNAPAR編碼器S851024D08CL
DYNAPAR編碼器S81024LD10CLC
DYNAPAR編碼器S851024D10CL
DYNAPAR編碼器S81024LJ04CLC
DYNAPAR編碼器S851024J04CL
DYNAPAR編碼器S81024LJ04CLF
DYNAPAR編碼器S81024LJ04DLC
DYNAPAR編碼器S851024J4DLC
DYNAPAR編碼器S851024J04ELC
DYNAPAR編碼器S81024LJ04QLC
DYNAPAR編碼器S851024J04QL
DYNAPAR編碼器S81024LJ05CLC
DYNAPAR編碼器S851024J05CL
DYNAPAR編碼器S81024LJ05CLF
DYNAPAR編碼器SL851024J05CLF
DYNAPAR編碼器S81024LJ05ELC
DYNAPAR編碼器S81024LJ05EVC
DYNAPAR編碼器S851024J5EVC
DYNAPAR編碼器S81024LJ06CLC
DYNAPAR編碼器S851024J06CL
DYNAPAR編碼器S81024LJ06CLF
DYNAPAR編碼器S851024LJ06CLF
DYNAPAR編碼器S81024LJ06CVC
DYNAPAR編碼器S851024-J06CLV
DYNAPAR編碼器S81024LJ06CVF
DYNAPAR編碼器S851024J6CVF
DYNAPAR編碼器S81024LJ06QVF
DYNAPAR編碼器S851024J6QVF
DYNAPAR編碼器S81024LJ07CLC
DYNAPAR編碼器S851024J07CL
DYNAPAR編碼器S81024LJ07CLF
DYNAPAR編碼器S851024J07CLF
DYNAPAR編碼器S81024LJ07CVC
DYNAPAR編碼器S851024J7CV
DYNAPAR編碼器S81024LJ07D5C
DYNAPAR編碼器S81024LJ07DLC
DYNAPAR編碼器S81024LJ07DLF
DYNAPAR編碼器S81024LJ07EHF
DYNAPAR編碼器S81024LJ07ELC
DYNAPAR編碼器S851024J07EL
DYNAPAR編碼器S81024LJ07ELF
DYNAPAR編碼器S81024LJ07EVC
DYNAPAR編碼器SL851024J07EVD
DYNAPAR編碼器S81024LJ07PLC
DYNAPAR編碼器S851024J07PL
DYNAPAR編碼器S81024LJ07PVC
DYNAPAR編碼器S851024J7PVC
DYNAPAR編碼器S81024LJ07QLF
DYNAPAR編碼器S851024J7QLF
DYNAPAR編碼器S81024LJ07QVF
DYNAPAR編碼器S81024LJ08CLF
DYNAPAR編碼器S851024J08CLF
DYNAPAR編碼器S81024LJ51CLF
DYNAPAR編碼器S81024LJ83CLC
DYNAPAR編碼器S851024J83CL
DYNAPAR編碼器S81024LK09CLC
DYNAPAR編碼器S851024K09CL
DYNAPAR編碼器S81024LK09CLF
DYNAPAR編碼器S81024LK09CVC
DYNAPAR編碼器S81024LK09CVF
DYNAPAR編碼器S851024LK09CVF
DYNAPAR編碼器S81024LK09DLC
DYNAPAR編碼器S851024LK09DLC
DYNAPAR編碼器S81024LK09ELC
DYNAPAR編碼器S851024J09EL
DYNAPAR編碼器S81024LK09ELF
DYNAPAR編碼器S81024LK09EVC
DYNAPAR編碼器S851024-K09ELV
DYNAPAR編碼器S81024LK09PLC
DYNAPAR編碼器S851024J09PL
DYNAPAR編碼器S81024LK09QLC
DYNAPAR編碼器S81024LK10CLC
DYNAPAR編碼器S81024LK10CLF
DYNAPAR編碼器S81024LK10ELC
DYNAPAR編碼器S851024J10EL
DYNAPAR編碼器S81024LK11CLC
愛澤工業專業提供美國DYNAPAR編碼器SL85/S8系列 示例S81024LK09CVF等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器SL85/S8系列 示例S81024LK09CVF的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器SL85/S8系列 示例S81024LK09CVF更詳細的信息或者購買美國DYNAPAR編碼器SL85/S8系列 示例S81024LK09CVF相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

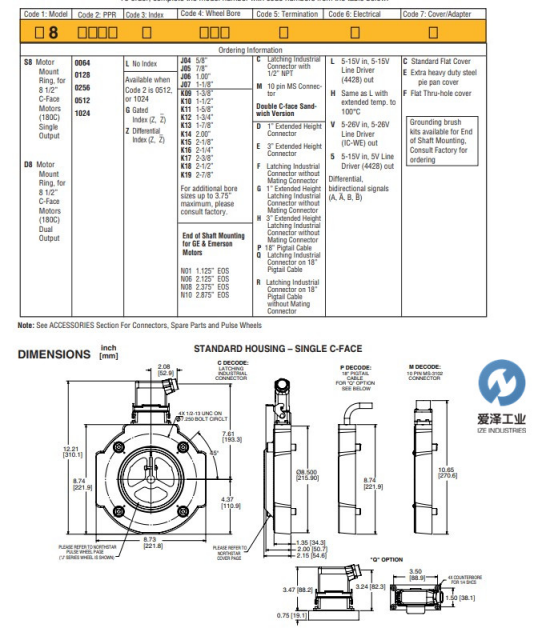

美國DYNAPAR編碼器SL85/S8系列 示例S81024LK09CVF尺寸及參數選型
