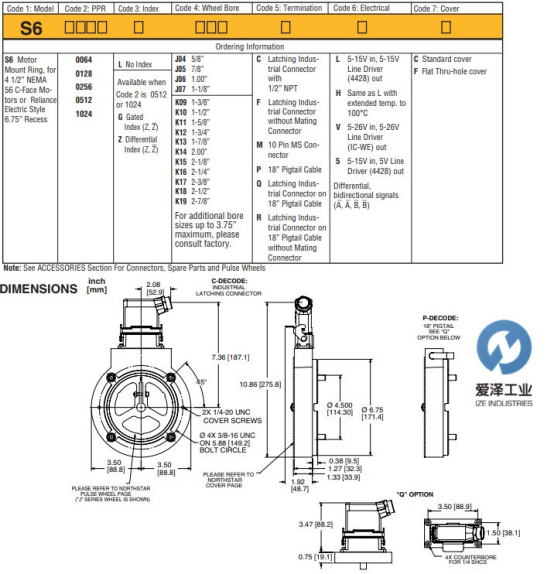

美國DYNAPAR編碼器S61024LJ04CLC尺寸及參數選型
美國NORTHSTAR編碼器RL67/S6系列特性描述
ELECTRICAL
Input Voltage Requirement: 5-15 or 5-26 Volts DC
Current Requirement:
With Electrical Option L or H: 45 mA typical per sensor module plus line driver load
With Electrical Option V or 5: 65 mA typical per sensor module plus line driver load
Output Signals:
4428 Differential Line Driver: 150mA, sink or source
IC-WE Differential Line Driver: 150mA, sink or source
ELECTRICAL (CONT.)
Frequency Response: 0 - 120kHz Data & Index.
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short circuit protected
Connector: 10 pin industrial duty latching, sealed
NEMA 4 &12, IP65
MECHANICAL
Bore Size: 5/8” to 3.75”
Mounting Configuration: 4.5” diameter, 56
C-Face, 140 C-Face Mount or accessory flange to meet NEMA MG1-4 standards or mounts directly in the 6.75” machined accessory recess of the 4.5” accessory flange found on Reliance RPM?
motors
Shaft Speed: 5,000 RPM
Shaft Length Required: 0.7” min
Allowable Shaft End-Play: ± 0.045”
Allowable Shaft Run out: 0.003” TIR
Acceleration Rate: 12,000 rpm/sec max
Housing Material: Cast Aluminum
Weight: 4 lbs
ENVIRONMENTAL
Operating Temperature Range:
Standard: -40°C to +90°C
Extended: -40°C to +100°C
Storage Temperature Range: -40°C to +120°C
Shock (Sensor Module): 30 G’s Min
Vibration: 18 G’s @ 5-2000 Hz spectrum
Humidity: Up to 98% (non-condensing)
美國DYNAPAR編碼器RL67/S6系列 示例S61024LJ04CLC等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器S61024LJ02CLC
DYNAPAR編碼器RL671024J02CL
DYNAPAR編碼器S61024LJ04CLC
DYNAPAR編碼器RL671024J04CL
DYNAPAR編碼器S61024LJ04CLF
DYNAPAR編碼器RL671024J04CLF
DYNAPAR編碼器S61024LJ04CVC
DYNAPAR編碼器RL671024J04CVC
DYNAPAR編碼器S61024LJ04CVF
DYNAPAR編碼器RL671024J4CVF
DYNAPAR編碼器S61024LJ04MHC
DYNAPAR編碼器RL671024J4MHC
DYNAPAR編碼器S61024LJ04MLC
DYNAPAR編碼器S61024LJ04PLC
DYNAPAR編碼器S61024LJ04PVC
DYNAPAR編碼器RL671024J4PVC
DYNAPAR編碼器S61024LJ04QLC
DYNAPAR編碼器RL671024J04QL
DYNAPAR編碼器S61024LJ04QLF
DYNAPAR編碼器RL671024J04QLF
DYNAPAR編碼器S61024LJ05CLC
DYNAPAR編碼器RL671024J05CL
DYNAPAR編碼器S61024LJ05PVC
DYNAPAR編碼器RL671024J5PVC
DYNAPAR編碼器S61024LJ06CLC
DYNAPAR編碼器RL671024J06CL
DYNAPAR編碼器S61024LJ06QLF
DYNAPAR編碼器RL671024J06QLF
DYNAPAR編碼器S61024LJ07CLC
DYNAPAR編碼器RL671024J7CL
DYNAPAR編碼器S61024LJ07PLC
DYNAPAR編碼器S61024LJ07QLC
DYNAPAR編碼器S61024LJ08CLF
DYNAPAR編碼器RL671024J8CLF
DYNAPAR編碼器S61024LK09CLC
DYNAPAR編碼器S61024LK14CLC
DYNAPAR編碼器S61024LK14PVC
DYNAPAR編碼器S61024LK16CLC
DYNAPAR編碼器RL671024K16CLC
DYNAPAR編碼器S61024LK19CLC
DYNAPAR編碼器S61024ZCNSE
DYNAPAR編碼器S61024ZJ04CHC
DYNAPAR編碼器S61024ZJ04CLC
DYNAPAR編碼器RL671024ZJ04CL
DYNAPAR編碼器S61024ZJ04CLF
DYNAPAR編碼器RL671024ZJ04CLF
DYNAPAR編碼器S61024ZJ04CVC
DYNAPAR編碼器S61024ZJ04CVF
DYNAPAR編碼器RL671024ZJ4CVF
DYNAPAR編碼器S61024ZJ04MLC
DYNAPAR編碼器RL671024ZJ4MLC
DYNAPAR編碼器S61024ZJ04PLC
DYNAPAR編碼器RL671024J4PVC
DYNAPAR編碼器S61024ZJ04QHC
DYNAPAR編碼器S61024ZJ04QLC
DYNAPAR編碼器RL671024ZJ04QL
DYNAPAR編碼器S61024ZJ04QVC
DYNAPAR編碼器S61024ZJ06CLC
DYNAPAR編碼器S61024ZJ54CLC
DYNAPAR編碼器RL671024ZJ54CLC
DYNAPAR編碼器S61024ZK09MLF
DYNAPAR編碼器S61024ZK13M5C
DYNAPAR編碼器RL671024ZK13M5C
DYNAPAR編碼器S61024ZK14CVF
DYNAPAR編碼器RL671024ZK14CVF
DYNAPAR編碼器S61024ZK15CLC
DYNAPAR編碼器RL671024ZJ15CL
DYNAPAR編碼器S61024ZK15QLF
愛澤工業專業提供美國DYNAPAR編碼器RL67/S6系列 示例S61024LJ04CLC等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器RL67/S6系列 示例S61024LJ04CLC的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器RL67/S6系列 示例S61024LJ04CLC更詳細的信息或者購買美國DYNAPAR編碼器RL67/S6系列 示例S61024LJ04CLC相關產品，請聯系愛澤工業。
