美國DYNAPAR編碼器ISD371024PLD2選型參數表
美國NORTHSTAR編碼器ISD371024PLD2特性描述
ELECTRICAL
Input Power: 5VDC, 7-26VDC
Outputs: ET7272, ET7273
Frequency Response: 125 kHz (data & index)
Termination: MS Connector; M12 Connector;
cable exit w/seal. See Ordering Information
Mating Connector:
6 pin MS, style MS3106A-14S-6S (MCN-N4)
7 pin MS, style MS3106A-16S-1S (MCN-N5)
10 pin MS, style MS3106A-18-1S (MCN-N6)
10 pin Bayonet, MS3116-F12-10S (MCN-B1)
10 pin, NEMA 4 style (MCN-N6N4)
Cable w/ 5 pin M12 connector, p/n 112859-xxx
Cable w/ 8 pin M12 connector, p/n 112860-xxx
MECHANICAL
Shaft Material: Stainless Steel (Anodized 6061 aluminum for 1" isolated bore option)
Bore Diameter: 1.00", 0.875, 0.750", 0.625", 0.500", 16mm, 15mm, 12mm. Insulated inserts provided for bores under 1 inch (1” bore not electrically isolated for stainless shaft option)
Bore runout: ±0.0005 TIR at midpoint
Min. Shaft Engagement: 1.60" (Recommended)
Starting torque: 4.5 in-oz. maximum (at 25°C)
Running torque: 4.0 in-oz. maximum (at ambient)
Bearings: 61806-ZZ
Bearing life: 5 x 108
revs at rated shaft Loading,
5 x 1011 revs at 10% of rated shaft loading.
(manufacturers’ specs)
Housing and cover: Hard Anodized Aluminum.
Also available in Stainless Steel.
Disc material: Plastic
Weight: 35 ounces, typical
ENVIRONMENTAL
Operating Temperature: -40 to 80°C
Storage temperature: -40 to 100°C
Shock: 400g for 6msec duration
Vibration: 5 to 3000Hz @ 20g
Humidity: 100%
Enclosure Rating: IP67
美國DYNAPAR編碼器ISD371024PLD2等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器ISD3710245KN0
DYNAPAR編碼器ISD3710248LN102
DYNAPAR編碼器ISD3710249L21
DYNAPAR編碼器ISD3710249LD1
DYNAPAR編碼器ISD371024CK21
DYNAPAR編碼器ISD371024CL21
DYNAPAR編碼器ISD371024GLA2
DYNAPAR編碼器ISD371024HE21
DYNAPAR編碼器ISD371024HH25
DYNAPAR編碼器ISD371024HK21
DYNAPAR編碼器ISD371024HL21
DYNAPAR編碼器ISD371024HL2E
DYNAPAR編碼器ISD371024HL70
DYNAPAR編碼器ISD371024HL71
DYNAPAR編碼器ISD371024HLA2
DYNAPAR編碼器ISD371024HLDC01
DYNAPAR編碼器ISD371024HM21
DYNAPAR編碼器ISDW38HA101024ABZC72S182/5ASLT
DYNAPAR編碼器ISD371024HM25
DYNAPAR編碼器ISD371024PCD102
DYNAPAR編碼器ISD371024PLD2
DYNAPAR編碼器ISD371024RLDC01
愛澤工業專業提供美國DYNAPAR編碼器ISD371024PLD2等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器ISD371024PLD2的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器ISD371024PLD2更詳細的信息或者購買美國DYNAPAR編碼器ISD371024PLD2相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

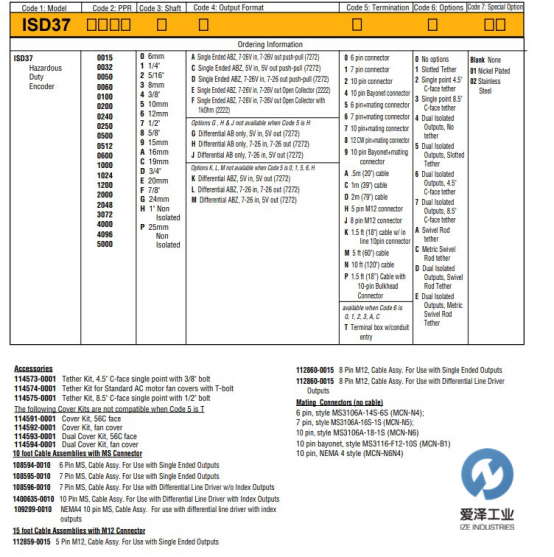

美國DYNAPAR編碼器ISD371024PLD2參數選型
