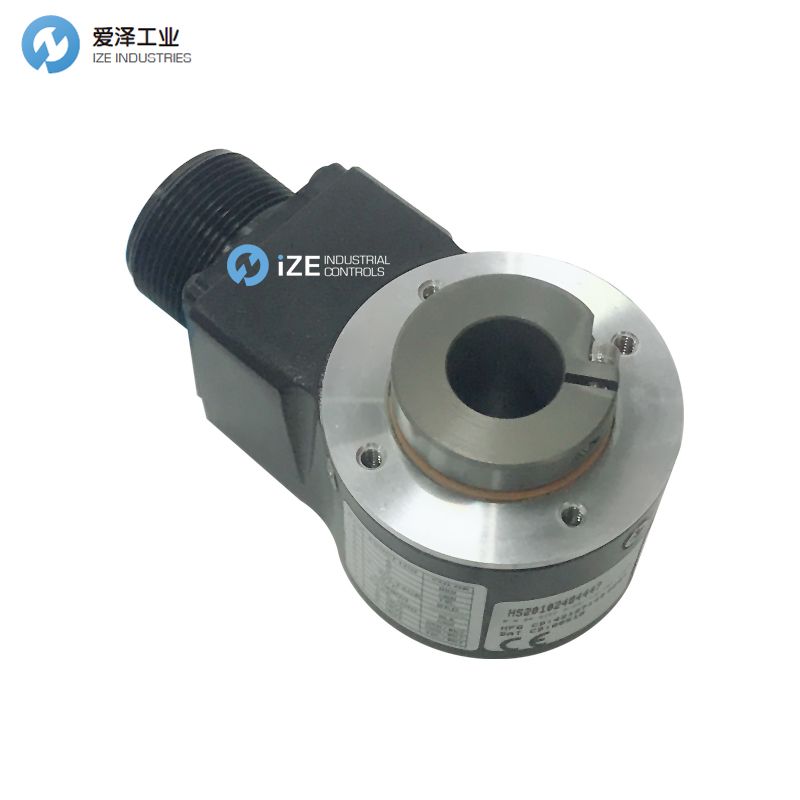

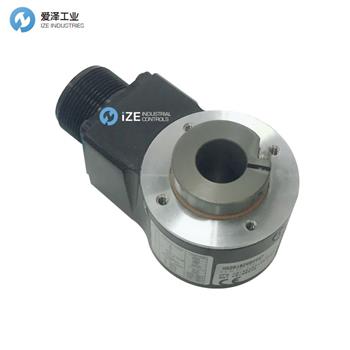

美國DYNAPAR編碼器 示例HS20102463340尺寸圖及選型參數表
美國DYNAPAR編碼器HS20系列參數說明
STANDARD OPERATING CHARACTERISTICS
Code: Incremental, Optical
Resolution: 50 to 2540 PPR (pulses/revolution)
Accuracy: (worst case any edge to any other
edge) <1024 PPR (metal disk): ±7.5 arc-min.
≥1024 PPR (glass disk): ±2.5 arc-min.
Format: Two channel quadrature (AB) with
optional Index (Z) and complementary outputs
Phase Sense: A leads B for CCW shaft rotation
viewing the hub clamp end of the encoder
Quadrature Phasing: 90° ± 22.5° electrical
Symmetry: 180° ±18° electrical
Index: 180° +18°/-135° electrical (gated with Blow)
Waveforms: Squarewave with rise and fall times
less than 1 microsecond into a load capacitanceof 1000 pf
ELECTRICAL
Input Power:
5 to 26 VDC at 100 mA max., not including outputloads
Outputs:
7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or source
7273 Open Collector: 40mA, sink max
Frequency Response: 100 kHz min. (index
75 kHz min. for extended temperature range)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short
circuit protected
Termination: MS Connector, M12 Connector,
Cable Exit
Mating Connector:
6 pin, style MS3106A-14S-6S (MCN-N4);
7 pin, style MS3106A-16S-1S (MCN-N5);
10 pin, style MS3106A-18-1S (MCN-N6);
10 pin, NEMA4 style (MCN-N6N4)
Cable w/ 5 pin M12 Connector (112859-xxxx)
Cable w/ 8 pin M12 Connector (112860-xxxx)
SERIES HS20 Dynapar? brand
Sealed Hollowshaft Encoder
? Hollowshaft Design Eliminates Brackets
and Couplings
? Electrically Isolated Shaft Design
? Compact Size for Tight Mounting
Constraints
MECHANICAL
Bore Diameter: 6mm to 16 mm, 1/4” to 5/8”
Shaft Speed: 6000 RPM max.
Shaft Bore Tolerance: Nominal
+0.0002”/+0.0008” (+0.005/+0.020 mm)
Mating Shaft Requirements:
Runout: ±0.005” (±0.13mm) radial, max.
Endplay: ±0.050” (±1.27 mm) axial, max.
Length: 0.80” (20 mm), minimum
Starting Torque: 3.0 oz-in max.
Moment of Inertia: 5.1 x 10-4 oz–in–sec2
Housing and Cover: Aluminum
Disc Material: Glass or Metal (PPR Dependant)
Weight: 10 oz. max.
ENVIRONMENTAL
Operating Temperature:
Standard: 0 to +70° C
Extended: 0 to +85° C
Storage Temperature: –40 to +85° C
Shock: 50 G’s for 11 milliseconds duration
Vibration: 5 to 2000 Hz at 2.5 G’s
Humidity: to 98% without condensation
Enclosure Rating: NEMA4/IP65 (dust proof,washdown)
美國DYNAPAR編碼器HS20102463340等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器HS2010240022A
DYNAPAR編碼器HS20102401125
DYNAPAR編碼器HS20102403347PS
DYNAPAR編碼器HS2010240344A
DYNAPAR編碼器HS2010240511J
DYNAPAR編碼器HS20102410442
DYNAPAR編碼器HS20102410447
DYNAPAR編碼器HS20102411336PS
DYNAPAR編碼器HS20102411346
DYNAPAR編碼器HS20102411346PS
DYNAPAR編碼器HS201024113B6
DYNAPAR編碼器HS20102413331PS
DYNAPAR編碼器HS2010241344A
DYNAPAR編碼器HS20102414447
DYNAPAR編碼器HS20102415340
DYNAPAR編碼器HS201024154B7
DYNAPAR編碼器HS2010242012D
DYNAPAR編碼器HS20102420347
DYNAPAR編碼器HS20102423002
DYNAPAR編碼器HS2010245344B
DYNAPAR編碼器HS2010245344C
DYNAPAR編碼器HS2010245344D
DYNAPAR編碼器HS201024543B1
DYNAPAR編碼器HS20102454447
DYNAPAR編碼器HS20102454447PS
DYNAPAR編碼器HS20102455100
DYNAPAR編碼器HS2010245510B
DYNAPAR編碼器HS20102455346PS
DYNAPAR編碼器HS2010245534B
DYNAPAR編碼器HS20102460347
DYNAPAR編碼器HS20102460437
DYNAPAR編碼器HS20102460447
DYNAPAR編碼器HS20102461341
DYNAPAR編碼器HS20102461346
DYNAPAR編碼器HS20102461447
DYNAPAR編碼器HS20102463000
DYNAPAR編碼器HS20102463100
DYNAPAR編碼器HS2010246310J
DYNAPAR編碼器HS2010246322D
DYNAPAR編碼器HS20102463331PS
DYNAPAR編碼器HS2010246333B
DYNAPAR編碼器HS2010246333J
DYNAPAR編碼器HS20102463340
愛澤工業專業提供美國DYNAPAR編碼器HS20102463340等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器HS20102463340的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器HS20102463340更詳細的信息或者購買美國DYNAPAR編碼器HS20102463340相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

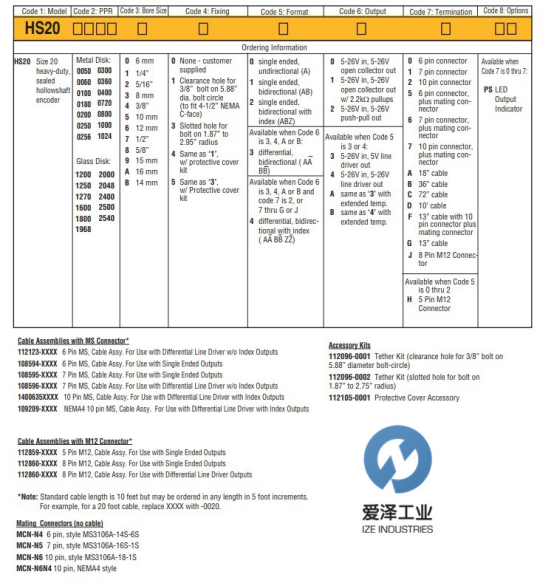

美國DYNAPAR編碼器HS20102463340外觀尺寸及參數選型
