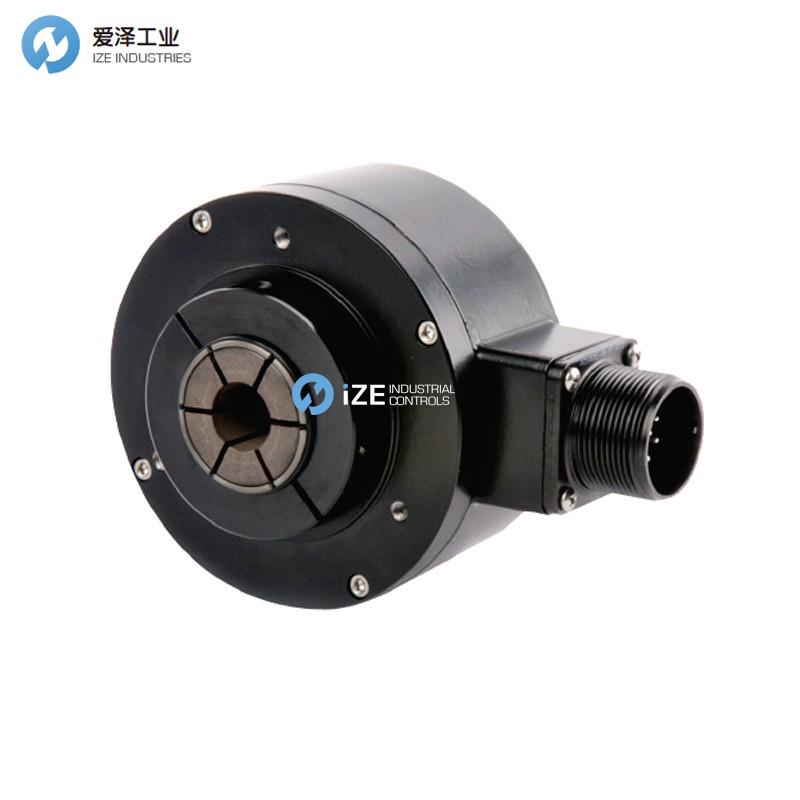

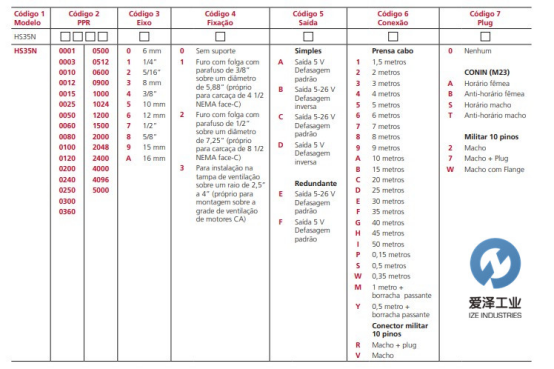

美國DYNAPAR編碼器 示例HS35N10249WBWW選型參數表
美國DYNAPAR編碼器HS35N系列參數說明
MECHANICAL
Shaft Sizes: 10mm, 1/4” or 3/8”
Shaft Loading: (at 0.25” from encoder face)
Resolutions ≤1024 PPR: 80 lbs. radial, axial
Resolutions >1024 PPR: 40 lbs. radial, axial
Shaft Speed:
Resolutions ≤1024 PPR: 10,000 RPM max.
Resolutions >1024 PPR: 5,000 RPM max.
Starting Torque: (max at 25 °C)
without shaft seal: 1.0 oz-in;
with shaft seal: 2.0 oz.-in
Moment of Inertia: 3.0 x 10-4 oz–in–sec2
Housing and Cover: Aluminum
Shaft Material: Stainless Steel
Disk Material: Glass or plastic (PPR Dependant)
Weight: 10 oz. max.
ENVIRONMENTAL
Operating Temperature:
Standard: 0 to +70 °C;
Extended: 0 to +85 °C
Storage Temperature: –40 to +90 °C
Shock: 50 G’s for 11 milliseconds duration
Vibration: 5 to 2000 Hz at 20 G’s
Humidity: Up to 98% (non-condensing)
Enclosure Rating: NEMA12/IP54 (dirt tight,
splashproof); NEMA4/IP66 (dust proof, washdown)
when ordered with shaft seal and either
M12 connector or watertight cable exit
美國DYNAPAR編碼器HS35N10249WBWW等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號:
DYNAPAR編碼器HS35N10249WBWW
DYNAPAR編碼器HS35N10249WB17
DYNAPAR編碼器HS35N10249WCS0
DYNAPAR編碼器HS35N10249WBWW
DYNAPAR編碼器HS35N20489WBV0
DYNAPAR編碼器HS35N20489WBWW
DYNAPAR編碼器HS35N204893AR0
愛澤工業專業提供美國DYNAPAR編碼器HS35N10249WBWW等,美國DANAHER集團旗下全系列產品,DYNAPAR重載編碼器,HENGSTLER編碼器/NORTHSTAR(北極星)HSD351024PA4,HSD351024PA7編碼器等等。
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器HS35N10249WBWW的疑問,請隨時與我們聯系,(021-3100 6702),我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器HS35N10249WBWW更詳細的信息或者購買美國DYNAPAR編碼器HS35N10249WBWW相關產品,請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.
美國DYNAPAR編碼器HS35N10249WBWW特性及參數描述
