美國DYNAPAR編碼器HA62510240341訂貨信息及選型參數表
DYNAPAR，NORTHSTAR之前均為Danaher Control工業控制集團重要成員，目前隸屬于FORTIVE集團，產品均被冠名為HENGSTLER品牌。DYNAPAR品牌重載編碼器,中負荷編碼器以及數字脈沖轉速計可用于極端環境條件下，為大型電動機提供高性能的速度和位置反饋。這些編碼器還具有業內領先的分辨率：高達2048PPR。其產品廣泛用于冶金、電力、造紙等重工業領域。
美國DYNAPAR編碼器HA62510240341參數說明
MECHANICAL
Shaft Sizes: 1/4”, 3/8”
Shaft Loading: (at 0.25” from encoder face) 35 lbs. radial, 40 lbs. axial
Shaft Speed: 5,000 RPM max.
Starting Torque: (max at 25 °C)
HA525: 1.0 oz-in;
HA625: 2.5 oz.-in
Moment of Inertia: 3.0 x 10-4 oz–in–sec2
Housing and Cover: Aluminium
Shaft Material: Stainless Steel
Disc Material: Glass
Weight: 1.5 lbs
ENVIRONMENTAL
Operating Temperature:
Standard: 0 to +70 °C;
Extended: 0 to +85 °C
Storage Temperature: –40 to +90 °C
Shock: 50 G’s for 11 milliseconds duration
Vibration: 5 to 2000 Hz at 20 G’s
Humidity: Up to 98% (non-condensing)
Enclosure Rating:
HA525: NEMA12/IP54 (dirt tight, splashproof);
HA625: NEMA4/IP66 (dust proof, washdown)
美國DYNAPAR編碼器HA62510240341等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器HA62500010000
DYNAPAR編碼器HA6250001001C
DYNAPAR編碼器HA62500010230
DYNAPAR編碼器HA62500010240
DYNAPAR編碼器HA62500010340
DYNAPAR編碼器HA6250001034A
DYNAPAR編碼器HA62500010H01
DYNAPAR編碼器HA62500011001
DYNAPAR編碼器HA62500011231
DYNAPAR編碼器HA62500011231PS
DYNAPAR編碼器HA62500011331
DYNAPAR編碼器HA62500019000
DYNAPAR編碼器HA62500019001
DYNAPAR編碼器HA62500050000
DYNAPAR編碼器HA62500050041
DYNAPAR編碼器HA62500050240
DYNAPAR編碼器HA62500050340
DYNAPAR編碼器HA625000503EA
DYNAPAR編碼器HA62500050640
DYNAPAR編碼器HA6250005064A
DYNAPAR編碼器HA62500050660
DYNAPAR編碼器HA62500056000
DYNAPAR編碼器HA62500100000
DYNAPAR編碼器HA62500100005
DYNAPAR編碼器HA62500100041
DYNAPAR編碼器HA62500100100
DYNAPAR編碼器HA62500100161
DYNAPAR編碼器HA62500100240
DYNAPAR編碼器HA62500100241
DYNAPAR編碼器HA62500100245
DYNAPAR編碼器HA62500100341
DYNAPAR編碼器HA6250010034B
DYNAPAR編碼器HA62500100351
DYNAPAR編碼器HA625001003EA
DYNAPAR編碼器HA62500102001
DYNAPAR編碼器HA62500106341
DYNAPAR編碼器HA62500106641
DYNAPAR編碼器HA62500120001
DYNAPAR編碼器HA62500120010
DYNAPAR編碼器HA62500120011
DYNAPAR編碼器HA6250012001D
DYNAPAR編碼器HA62500120040
DYNAPAR編碼器HA62500120040PS
DYNAPAR編碼器HA62500120041
DYNAPAR編碼器HA62500120640
DYNAPAR編碼器HA62500120641
DYNAPAR編碼器HA62500350640
DYNAPAR編碼器HA725036000001
DYNAPAR編碼器HA725036000041
DYNAPAR編碼器HA7250500002414
DYNAPAR編碼器HA72505000024X8
DYNAPAR編碼器HA725060000241
DYNAPAR編碼器HA725081920000
DYNAPAR編碼器HA725081920001
DYNAPAR編碼器HA725081920240
DYNAPAR編碼器HA725081920241
DYNAPAR編碼器HA7250819202417
DYNAPAR編碼器HA725090000000
DYNAPAR編碼器HA725090000001
DYNAPAR編碼器HA725090000201
DYNAPAR編碼器HA725090000240
DYNAPAR編碼器HA725090000241
DYNAPAR編碼器HA725100000000
DYNAPAR編碼器HA725100000001
DYNAPAR編碼器HA725100000201
DYNAPAR編碼器HA725100000240
DYNAPAR編碼器HA725100000241
DYNAPAR編碼器HA7251000002414
DYNAPAR編碼器HA7251000002417
愛澤工業專業提供美國DYNAPAR編碼器HA62510240341等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器HA62510240341的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器HA62510240341更詳細的信息或者購買美國DYNAPAR編碼器HA62510240341相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

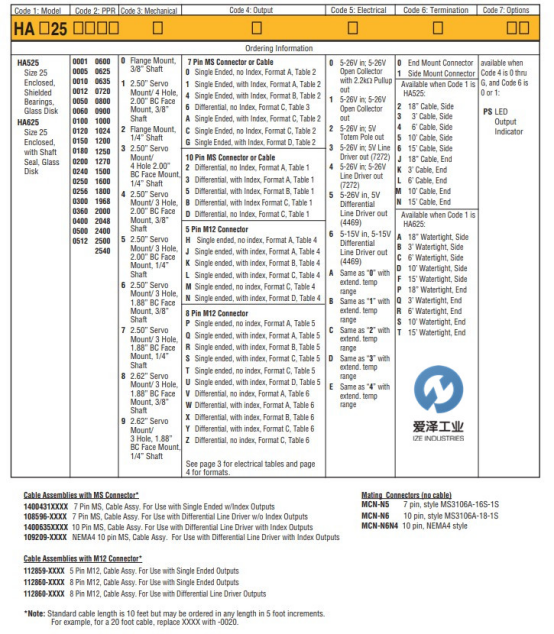

美國DYNAPAR編碼器HA62510240341外觀尺寸及參數選型
